Sold - Emergency power system as an emergency generator 500 kVA with Iveco engine C 13 TE 7 in RAL 9010 tank 950 liters
Stock No.
1258
1258
Completion:
Generating Set:
stationary
Gen Set:
silent Set

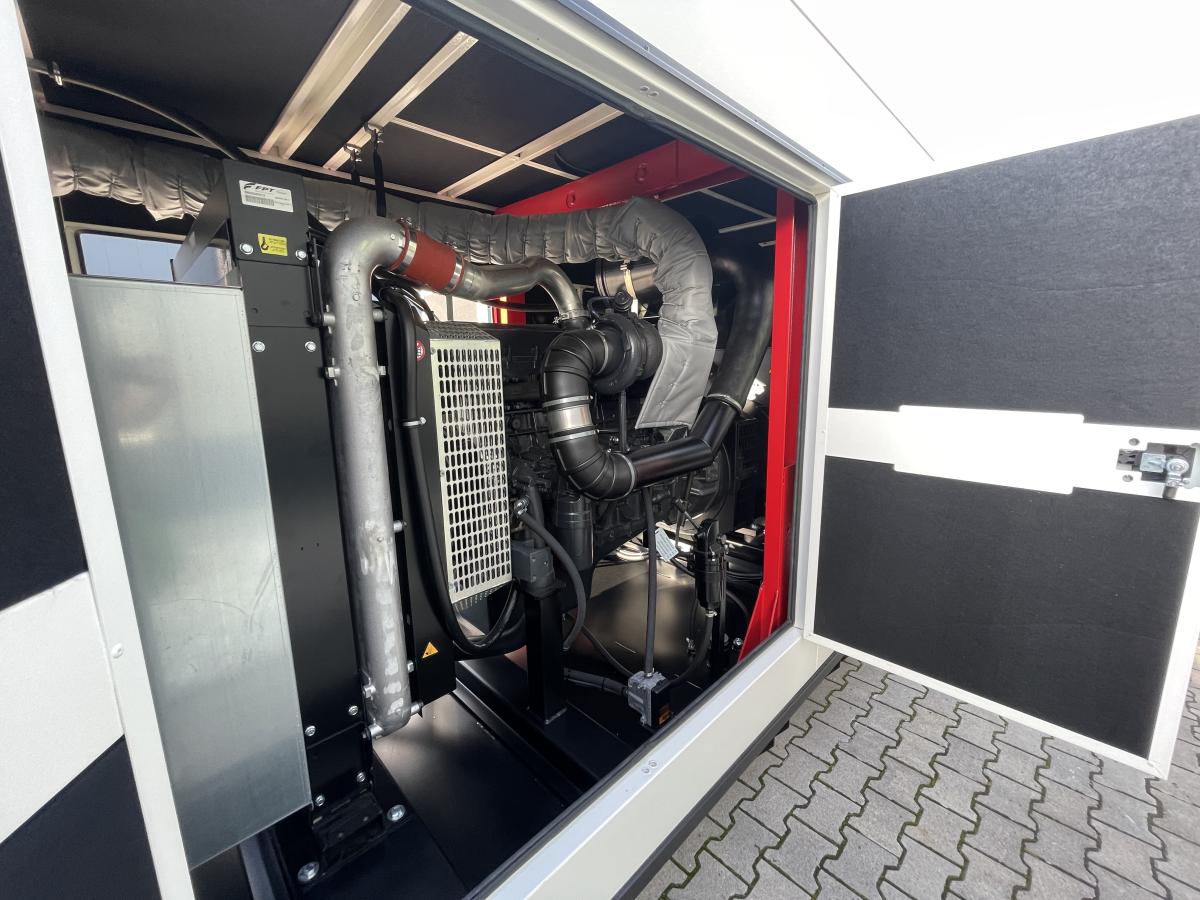

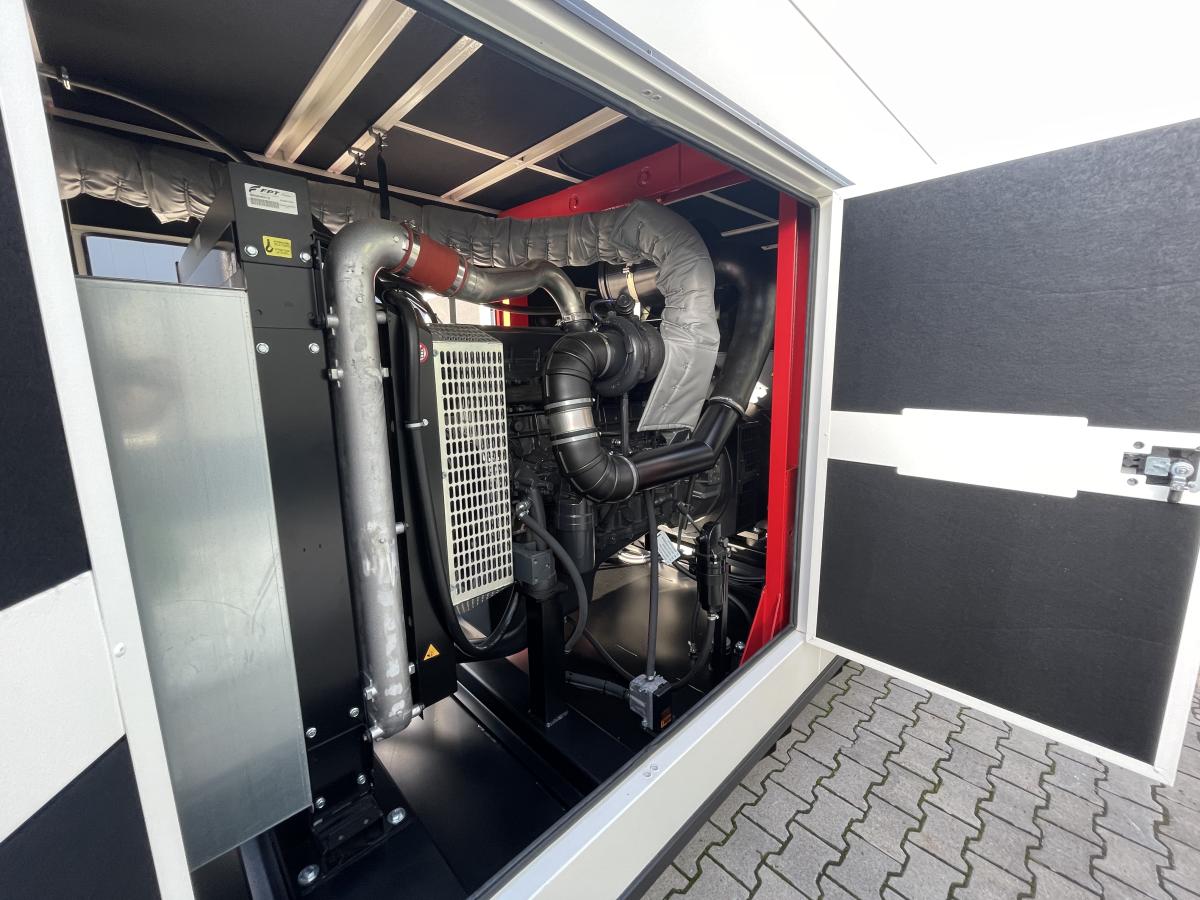

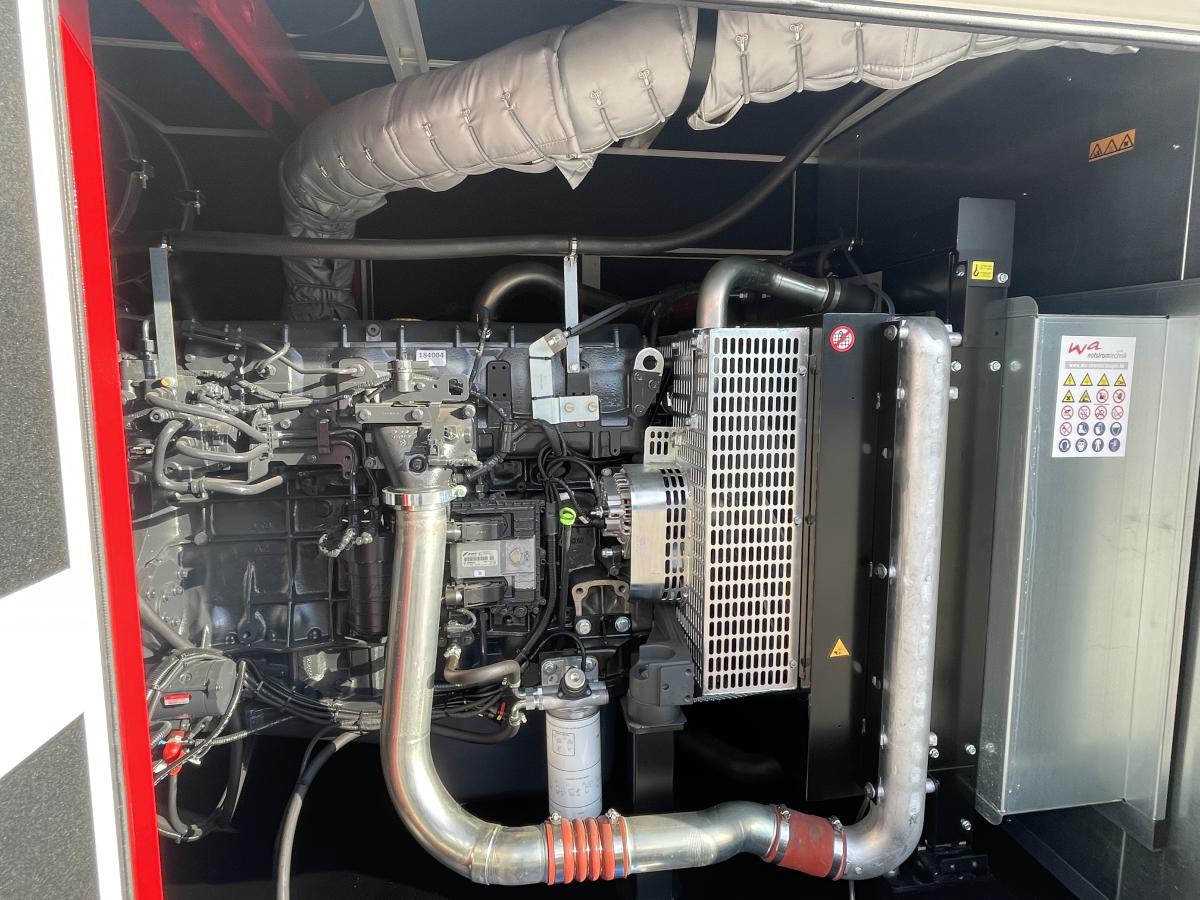

Technical Data Engine:

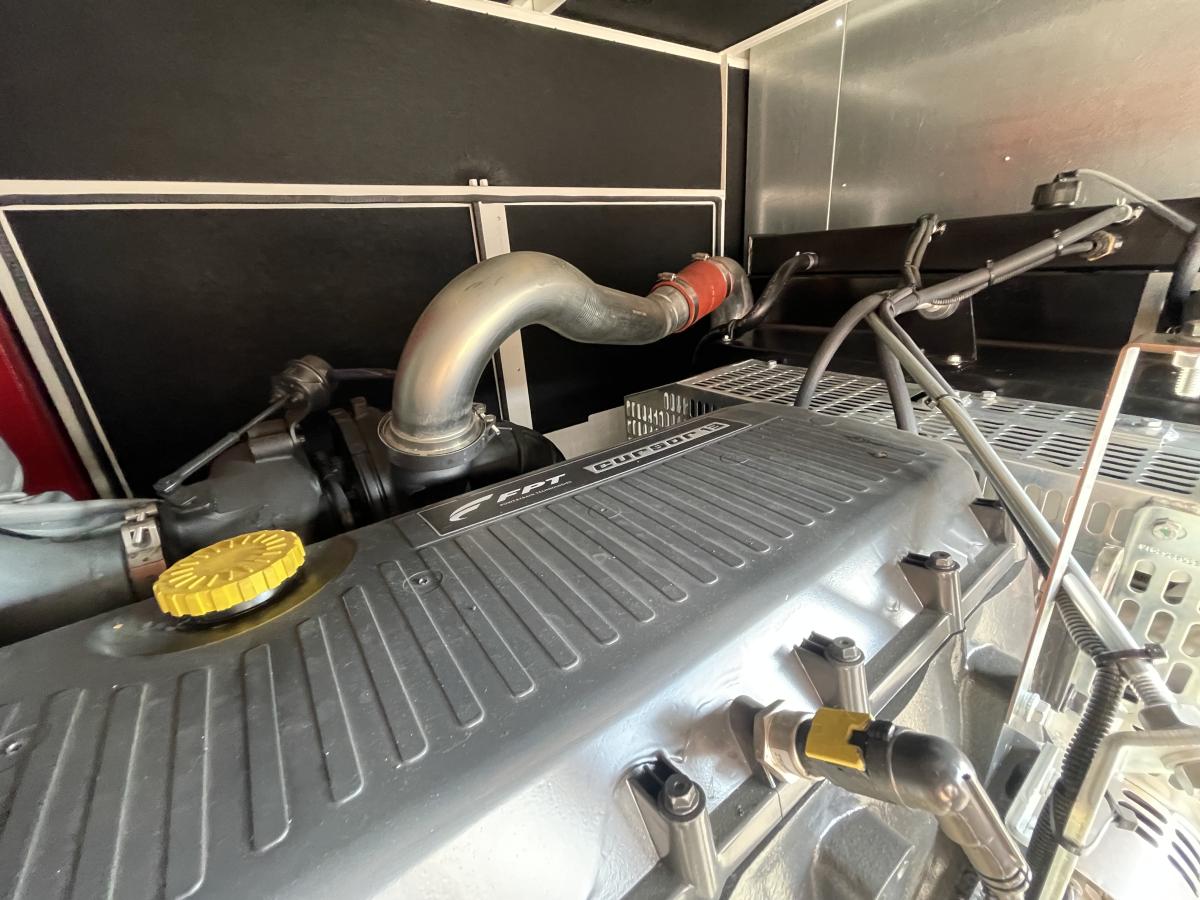

Engine Manufacturer:
Iveco FPT
Engine Type:
C 13 TE 7
Engine No.:
063024
Engine Power:
415 KW
Cooling:
water-cooled
Starting:
electrical 12 V DC
Rotation:
1500 rpm
Fuel:
heating oil EN 590

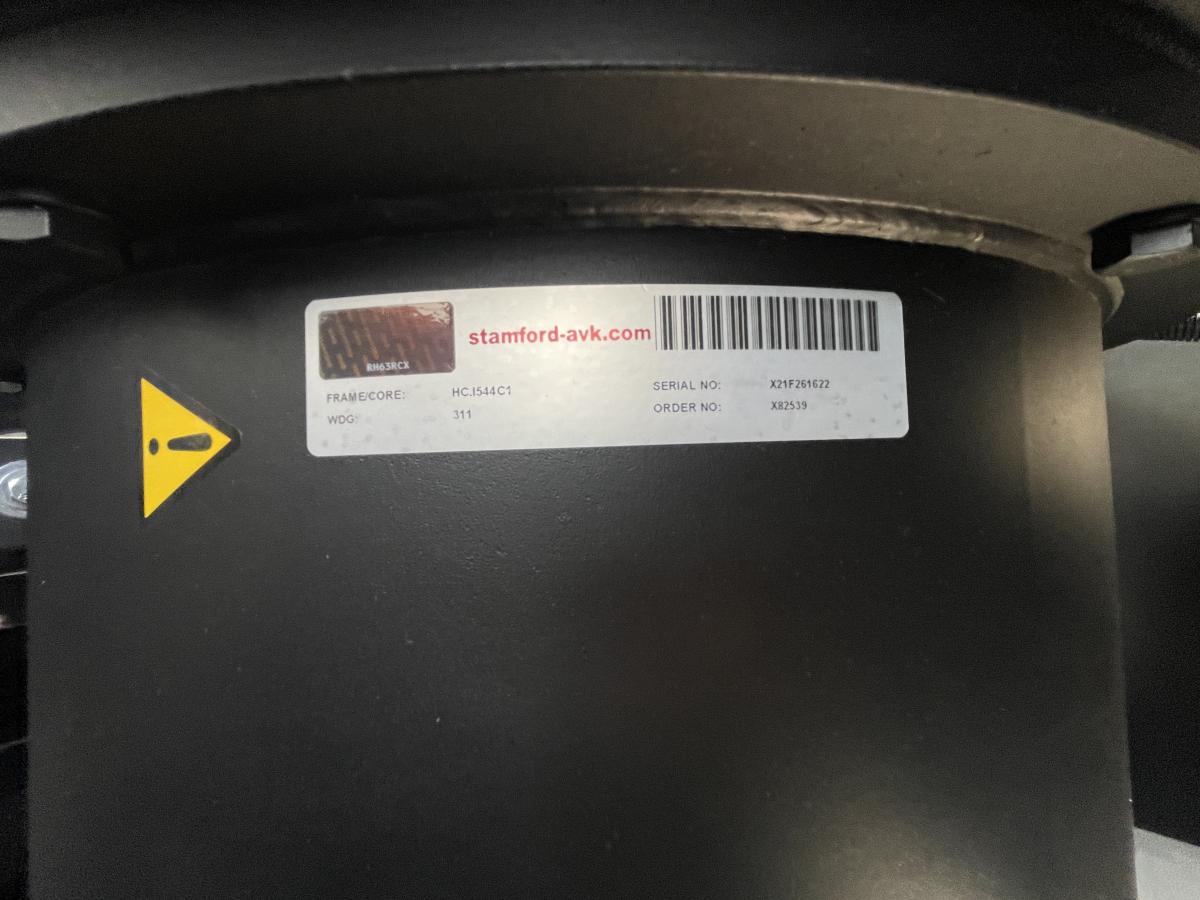

Technical Data Generator:
Generator Manufacturer:
Stamford AvK
Gen Set:
HCI 544 C
Gen No.:
X21F261622
Gen Power:
500 kVA
Voltage:
400 / 231 Volt
Power Factor:
cos. - phi 0,8
Rotation:
1500 rpm

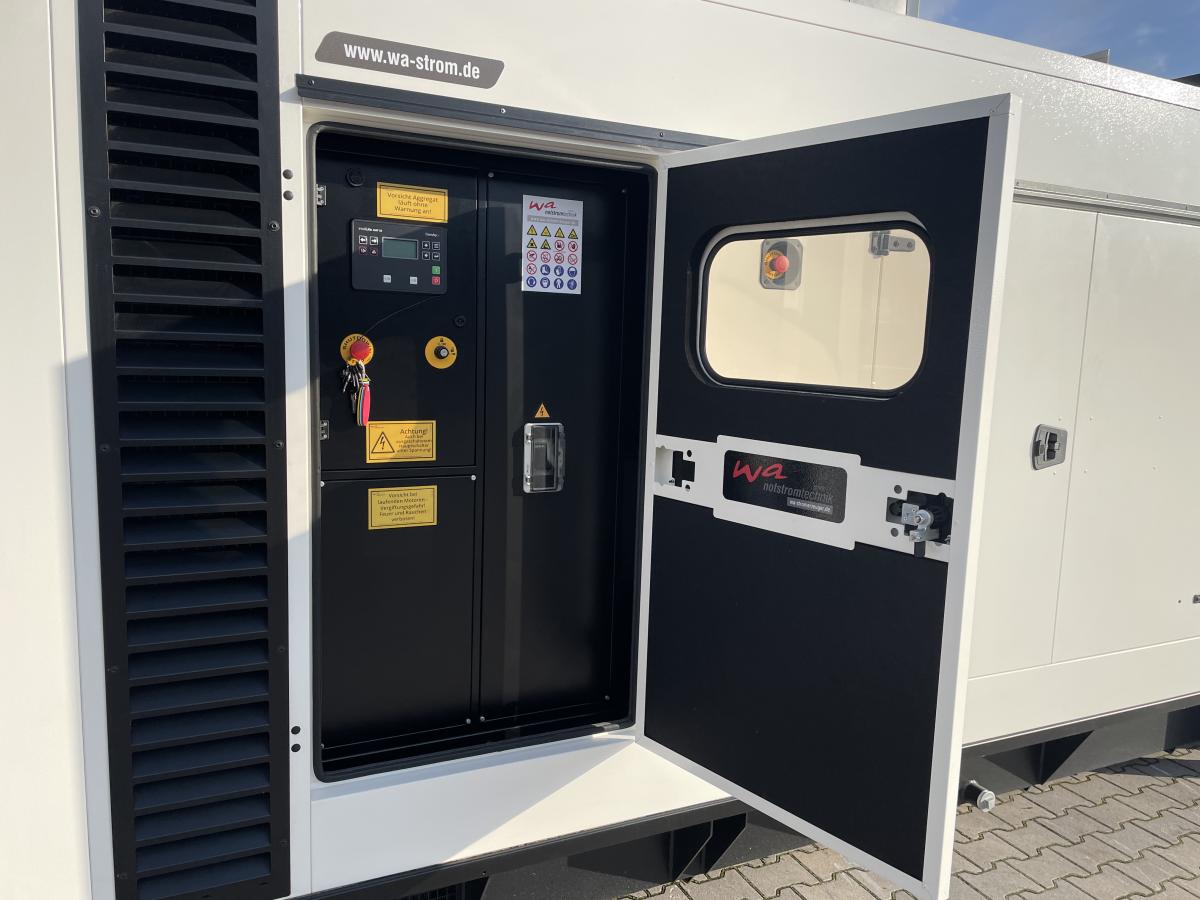

Control Unit:
Setup:
automatic start
Functions:
emergency power
Switch:
gen switch 4 pole
Delivery:
set up
Width ca. mm:
Height ca. mm:
Depth ca. mm:
Fuel Tank:
Setup:
Width ca. mm:
Height ca. mm:
Depth ca. mm:
Capacity / Litre:
950
Dimensions of unit:
Width ca. mm:
1.840
Height ca. mm:
2.540
Length ca. mm:
4.500
Weigth ca. KG:
5.100
Usage:
Stock No:
1258
State:
demonstration set
year of manufacture:
2022
time of delivery:
ex work
Operating Hours:
2
Location:
Verl - Germany
Price plus VAT in €:
on request:
Reserved:
nein / no
delivery contents:

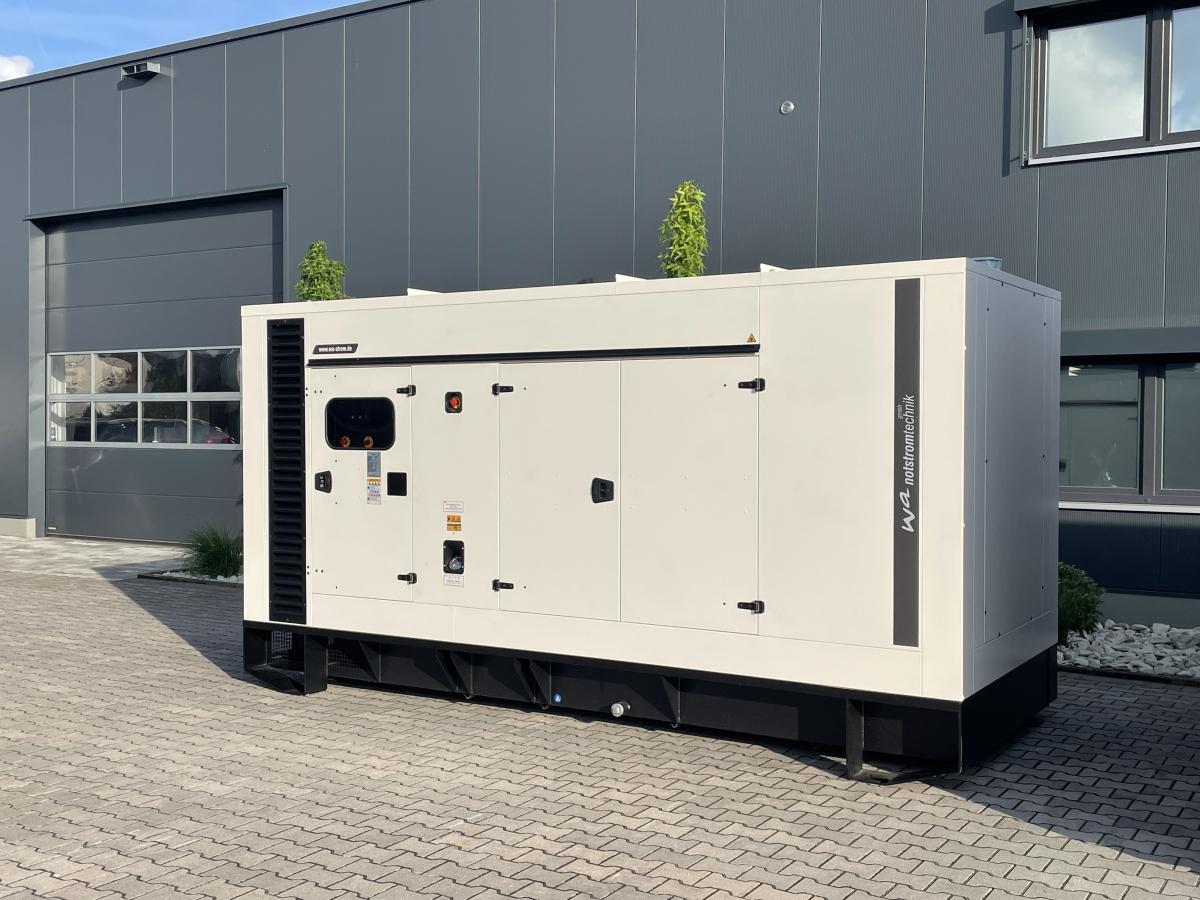

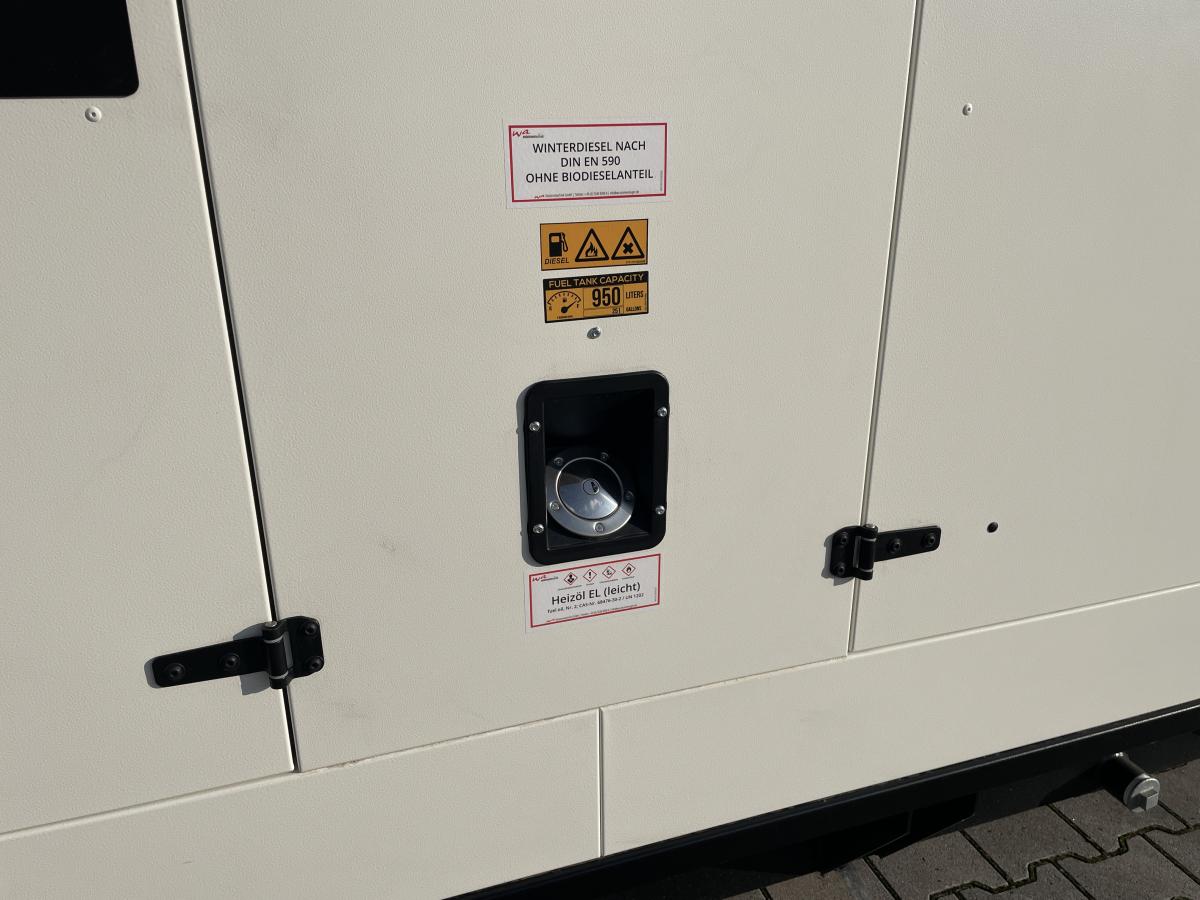

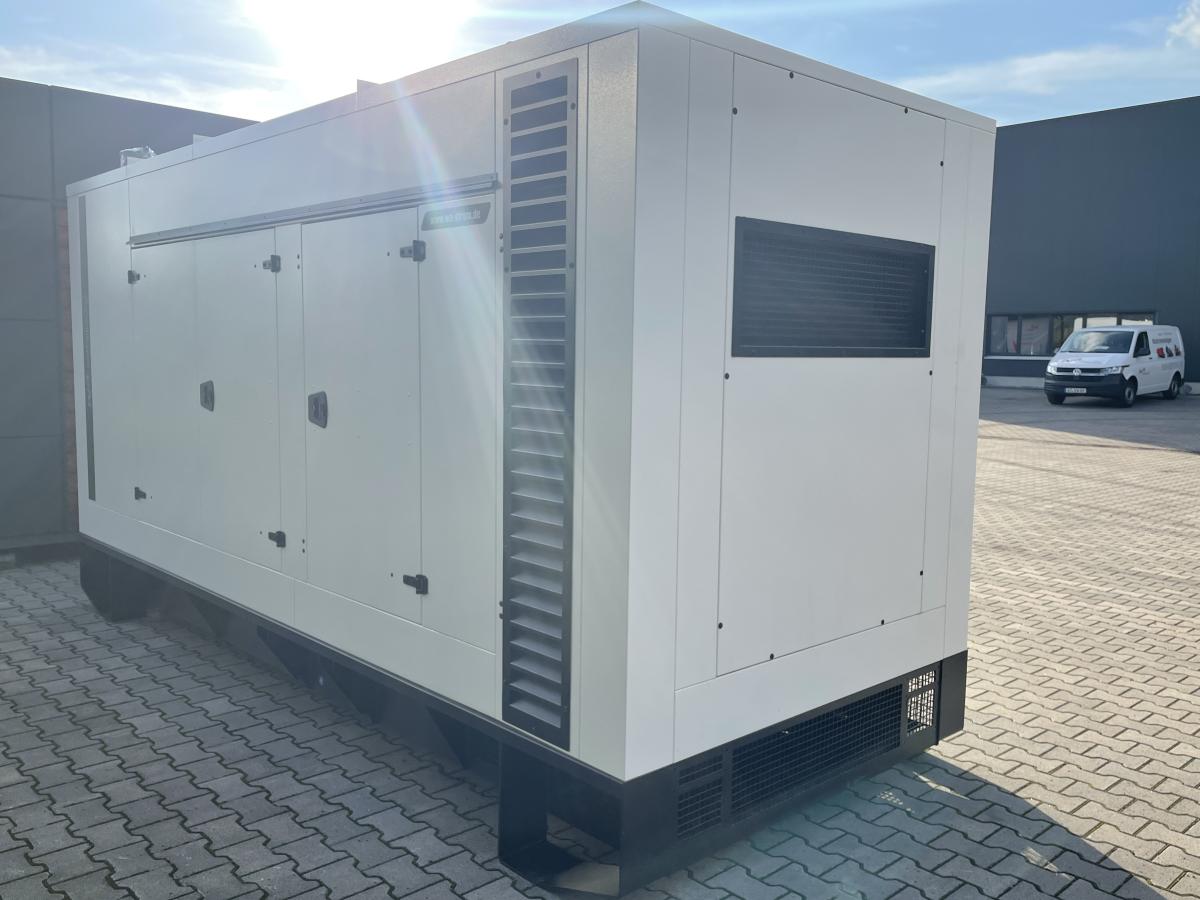

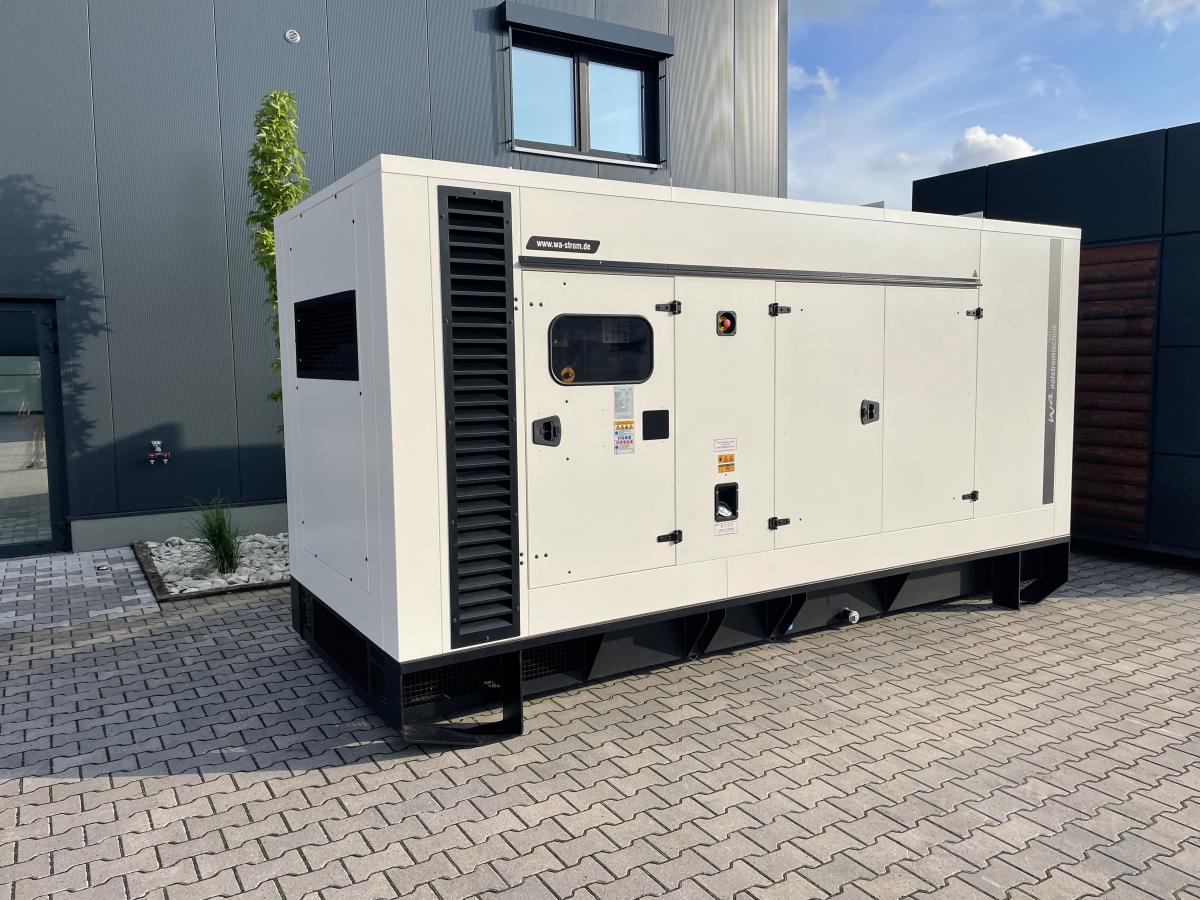

Emergency power generator as emergency power system Type: WA IG 500 "S" Super soundproofed for outdoor installation with approx. 70 db"A" measured at 7 meters as the mean value for an all-round measurement at 7 meters at 7 measuring points.Day tank integrated in the sound insulation capsule, capacity 950 litres
Fuel consumption, according to IVECO data sheet:
At 100% load = 100.6 liters / tank capacity sufficient for 9.4 hours
At 50% load = 51.5 liters / tank capacity sufficient for 18.4 hours
Further equipment:

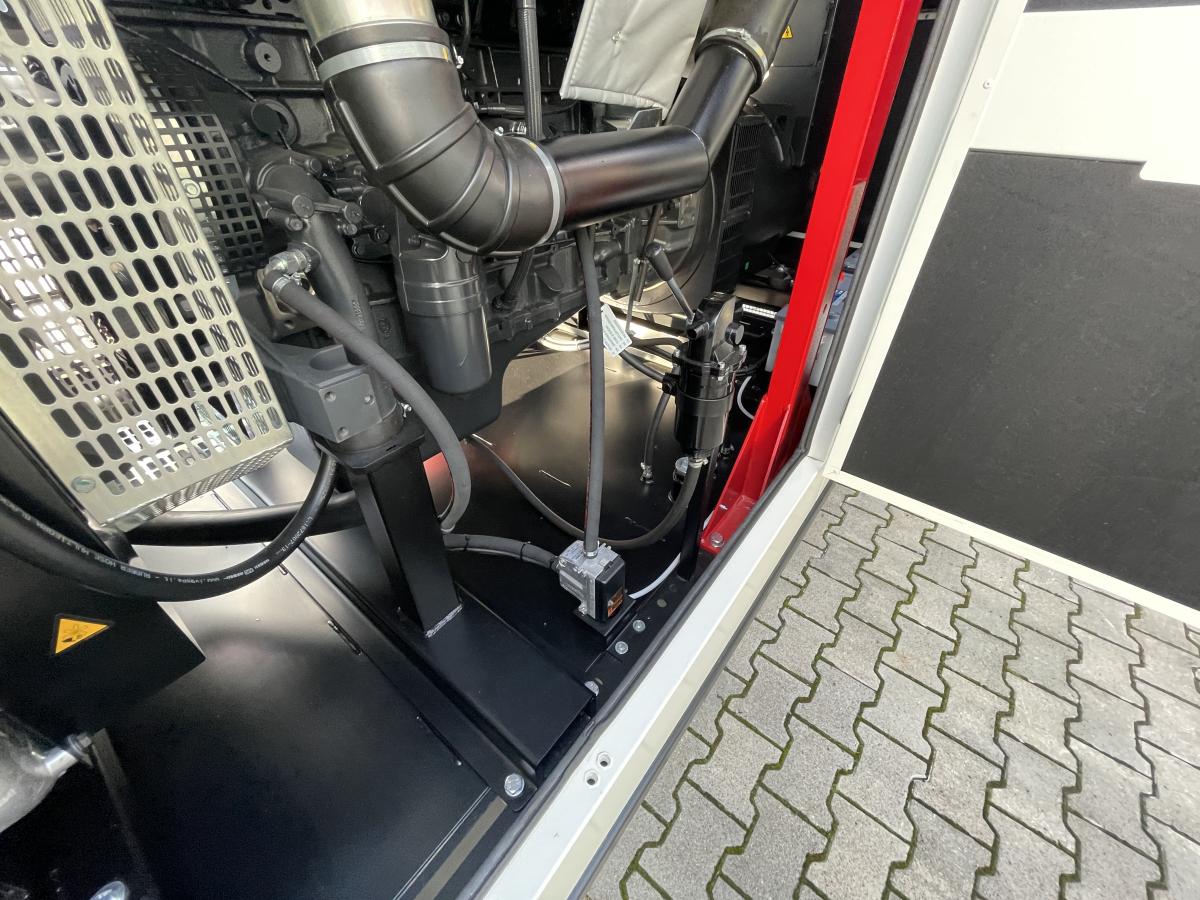

Oil drip tray in the base frame for collecting all liquids

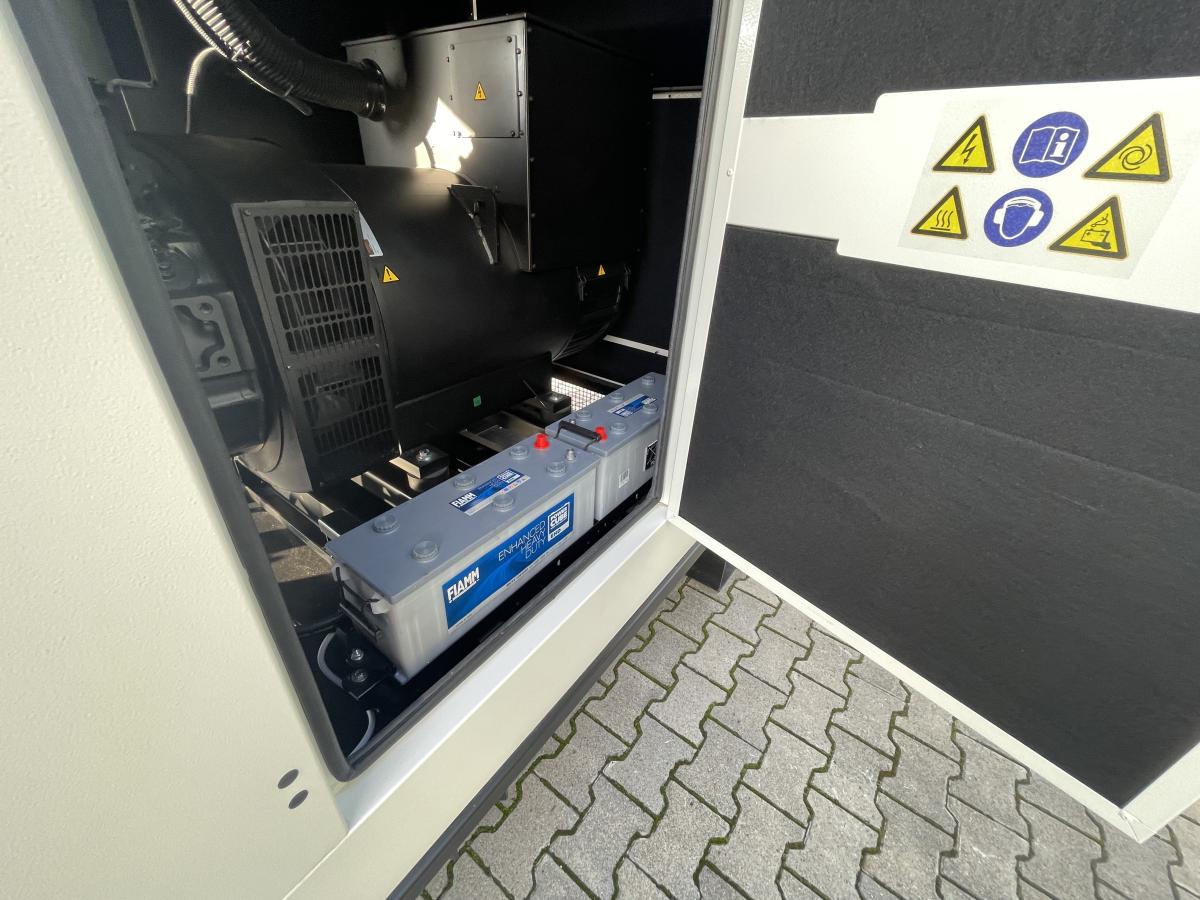

Built-in 230 volt cooling water pre-heater and 24 volt battery charger.
Optional: Automatic start with mains & generator switching 4-pole
External emergency power switchgear for installation in the building, with mains monitoring and 4-pole mains generator switchover
Function: In the event of a power failure, the start command is sent to the diesel unit. When the nominal speed and nominal voltage are reached, the generator switch is switched on. When the mains returns, the automatic system monitors the mains voltage. When this is stable again, the system switches back to mains operation. The diesel unit is stopped after the cooling time and waits in automatic mode for the next power failure.
