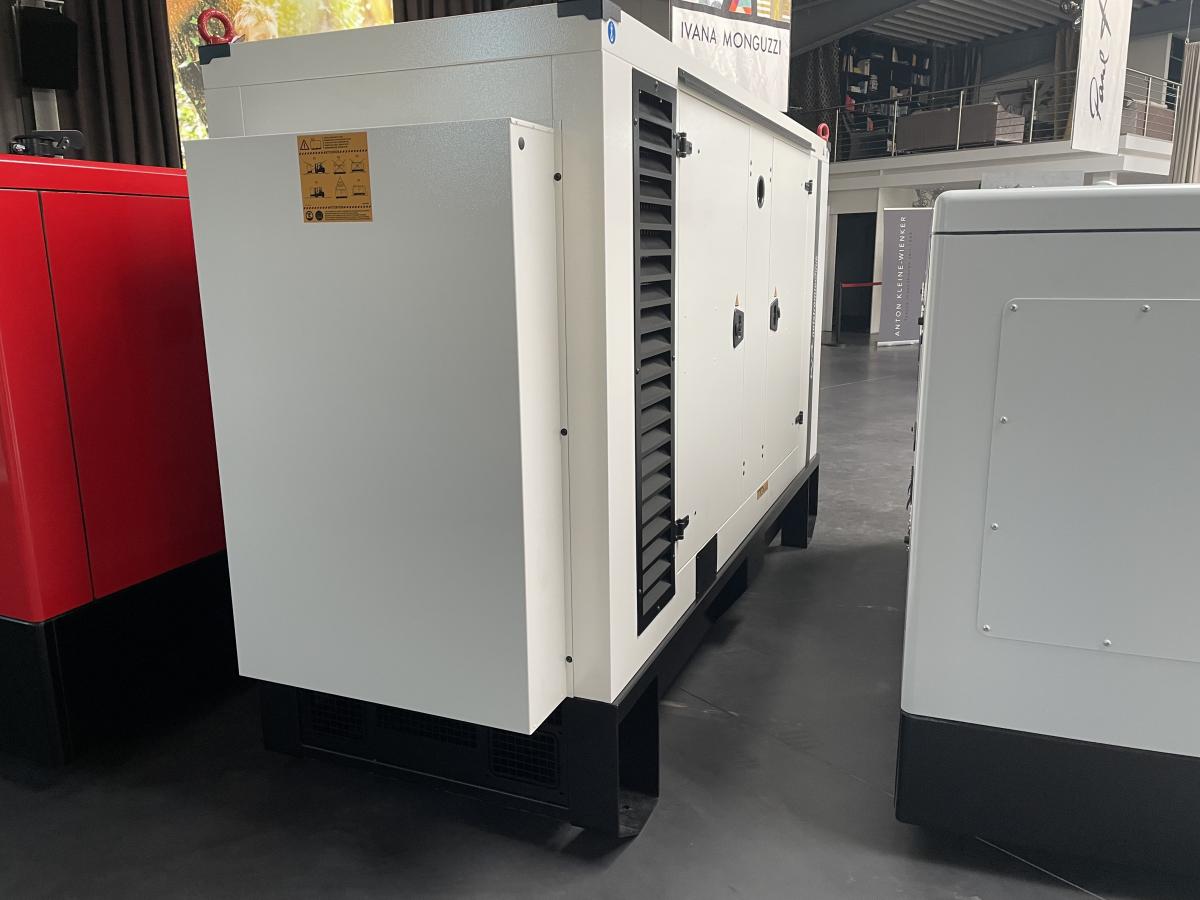

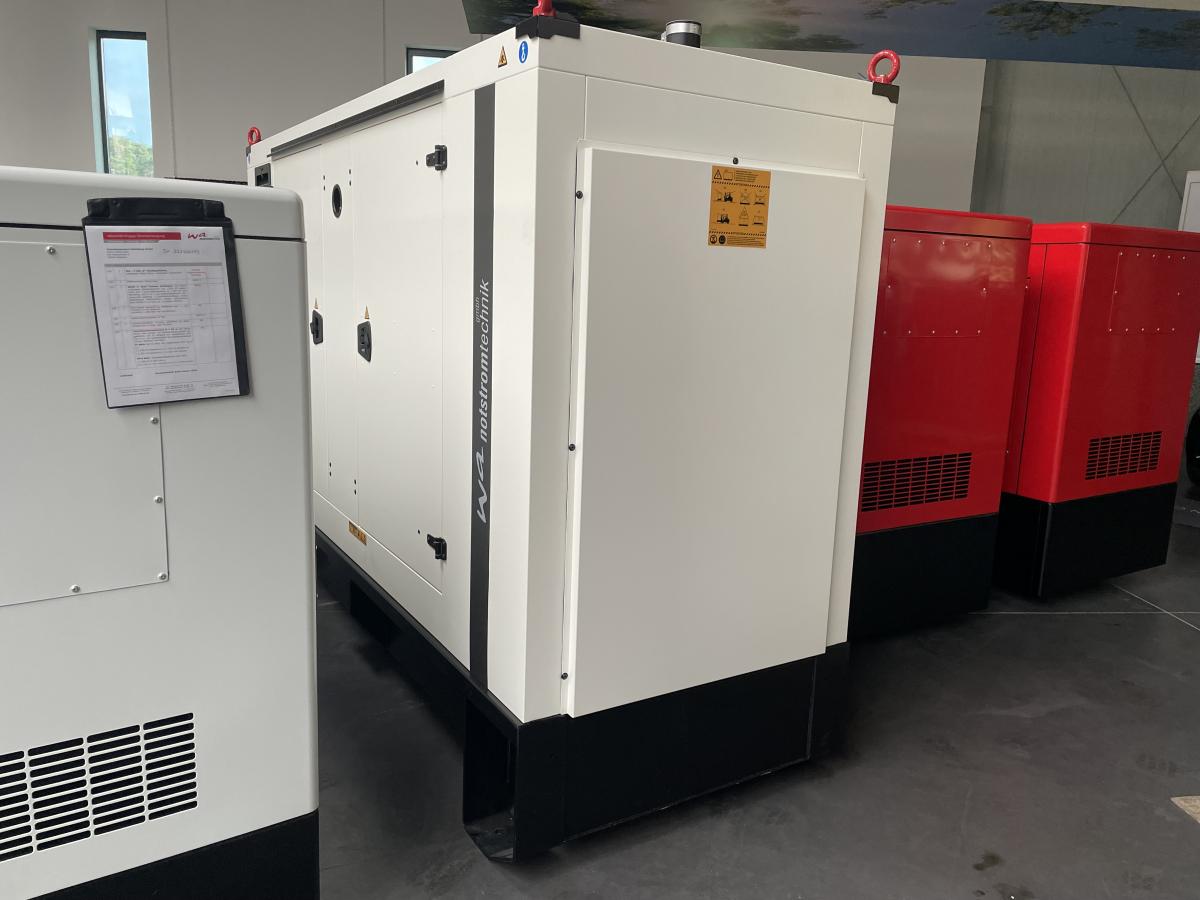

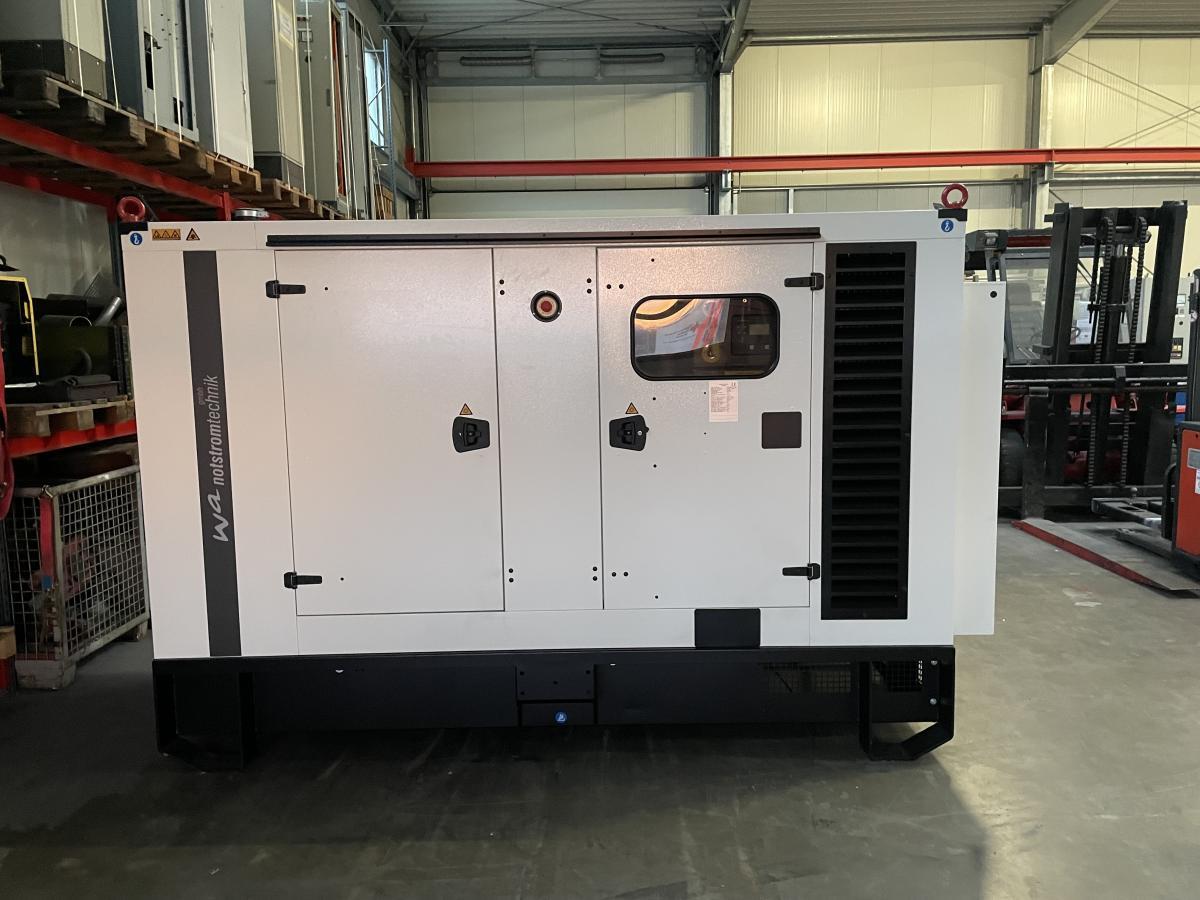

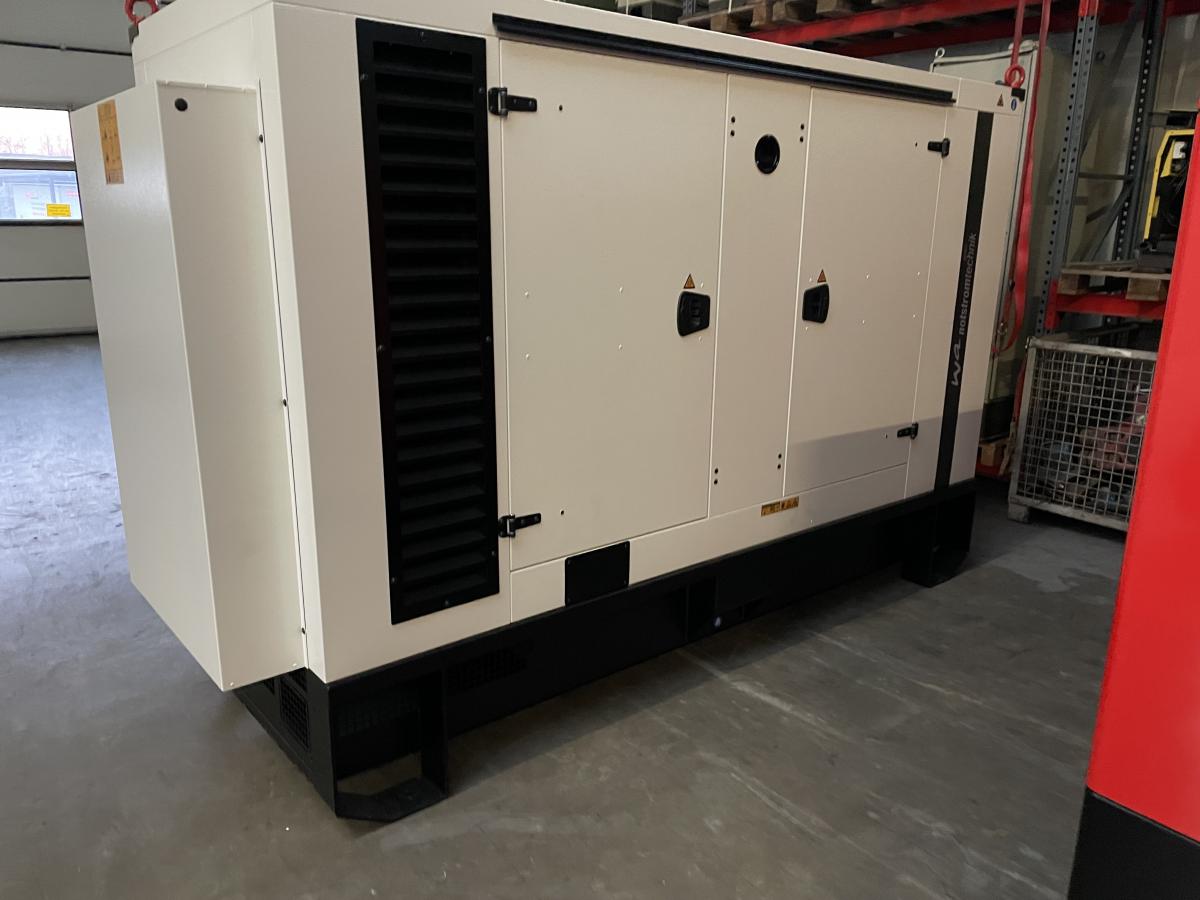

Emergency generator as a backup power system 250 kVA with Deutz engine TCD 2013 L 06 4 V soundproof control IG 200

Stock No.
1389

Completion:

Generating Set:

stationary

Gen Set:

silent Set

Technical Data Engine:

Engine Manufacturer:

Deutz

Engine Type:

TCD 2013 L 06 4 V

Engine No.:

auf Anfrage

Engine Power:

250 KW

Cooling:

water-cooled

Starting:

electrical 24 V DC

Rotation:

1500 rpm

Fuel:

heating oil EN 590

Technical Data Generator:

Generator Manufacturer:

Stamford AvK

Gen Set:

UCDI 274 K 1

Gen No.:

auf Anfrage

Gen Power:

250 kVA

Voltage:

400 / 231 Volt

Power Factor:

cos. - phi 0,8

Rotation:

1500 rpm

Control Unit:

Setup:

automatic start

Functions:

emergency power

Switch:

gen switch 4 pole

Delivery:

set up

Width ca. mm:

Height ca. mm:

Depth ca. mm:

Fuel Tank:

Setup:

Baseframe fuel Tank with Bassin

Width ca. mm:

Height ca. mm:

Depth ca. mm:

Capacity / Litre:

360

Dimensions of unit:

Width ca. mm:

1.100

Height ca. mm:

2.150

Length ca. mm:

3.300

Weigth ca. KG:

2.600

Usage:

Stock No:

1389

State:

new

year of manufacture:

2023

time of delivery:

ex work

Operating Hours:

Location:

Verl - Germany

Price plus VAT in €:

on request:

Reserved:

nein / no

delivery contents:

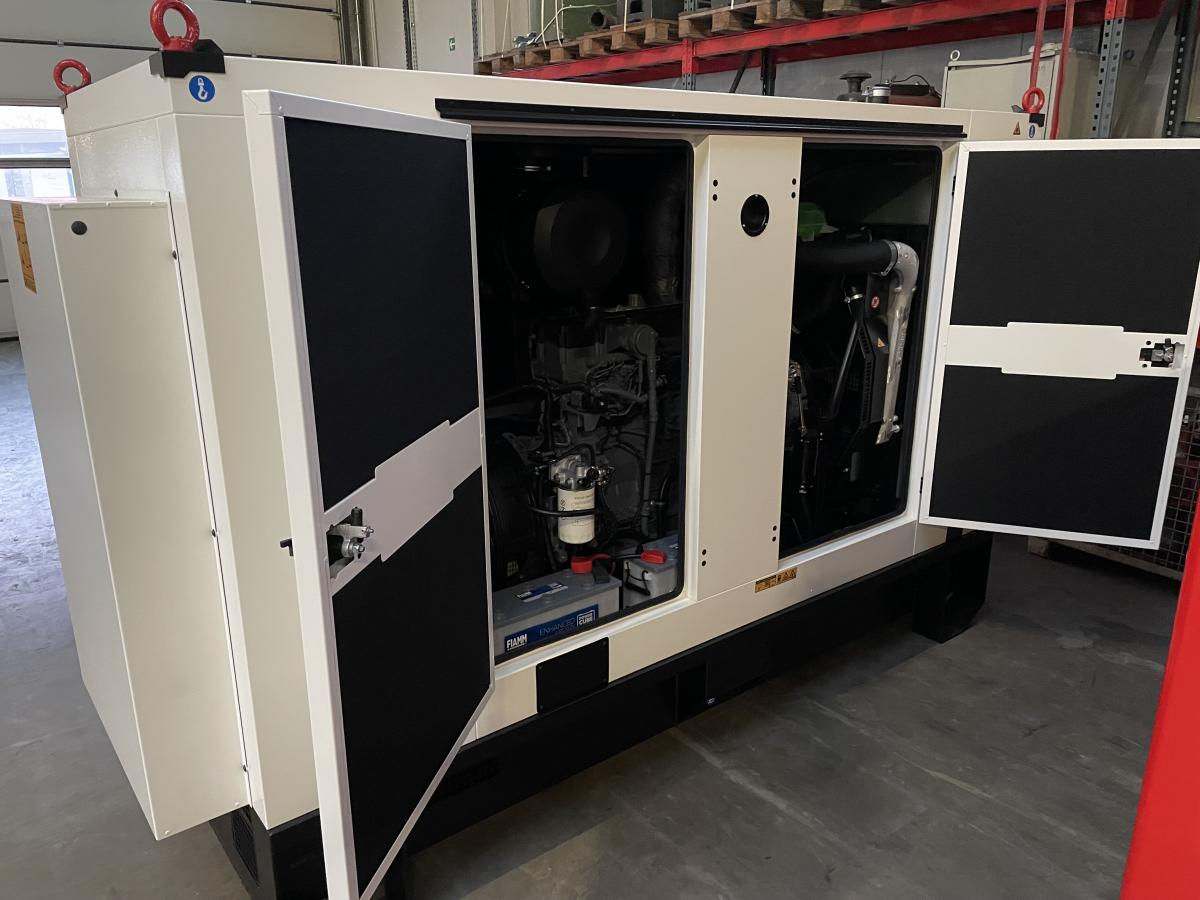

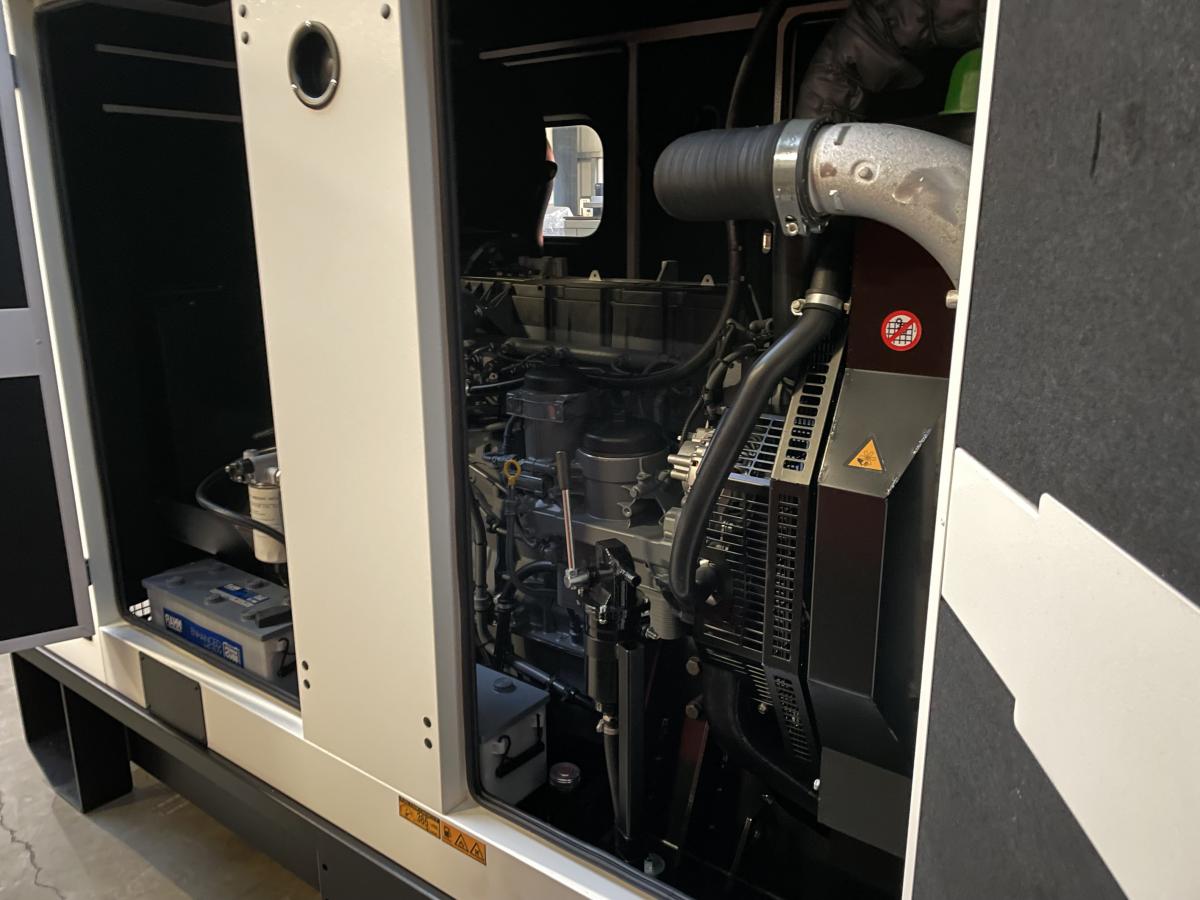

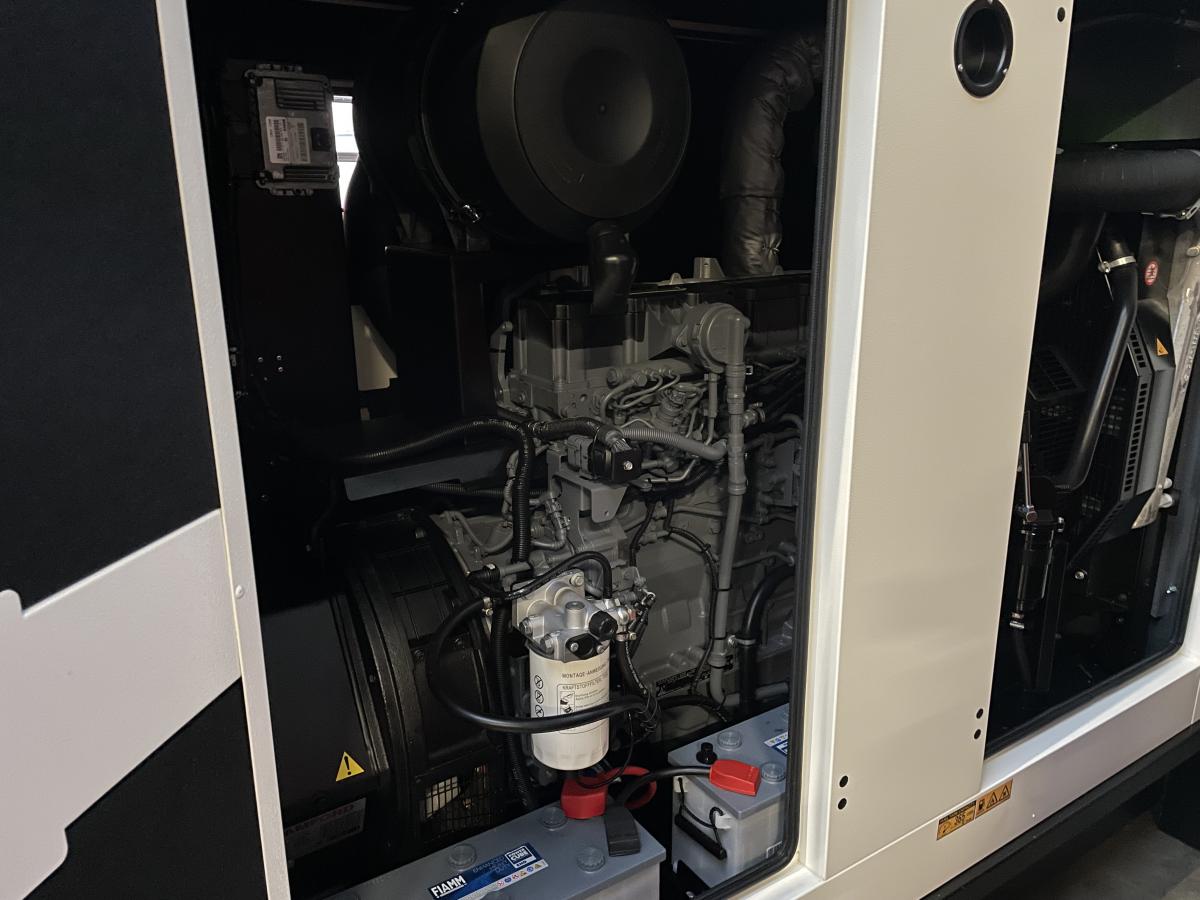

Emergency power generator as a backup power system, soundproofed with approx. 69 db "A" measured in 7 meters with an all-round measurement in 7 meters at 7 measuring points as a backup power system Type: WA - DG 250 "S"

Further features:

Internal daily tank capacity with 360 liters nominal capacity
Oil collection pan in the base frame

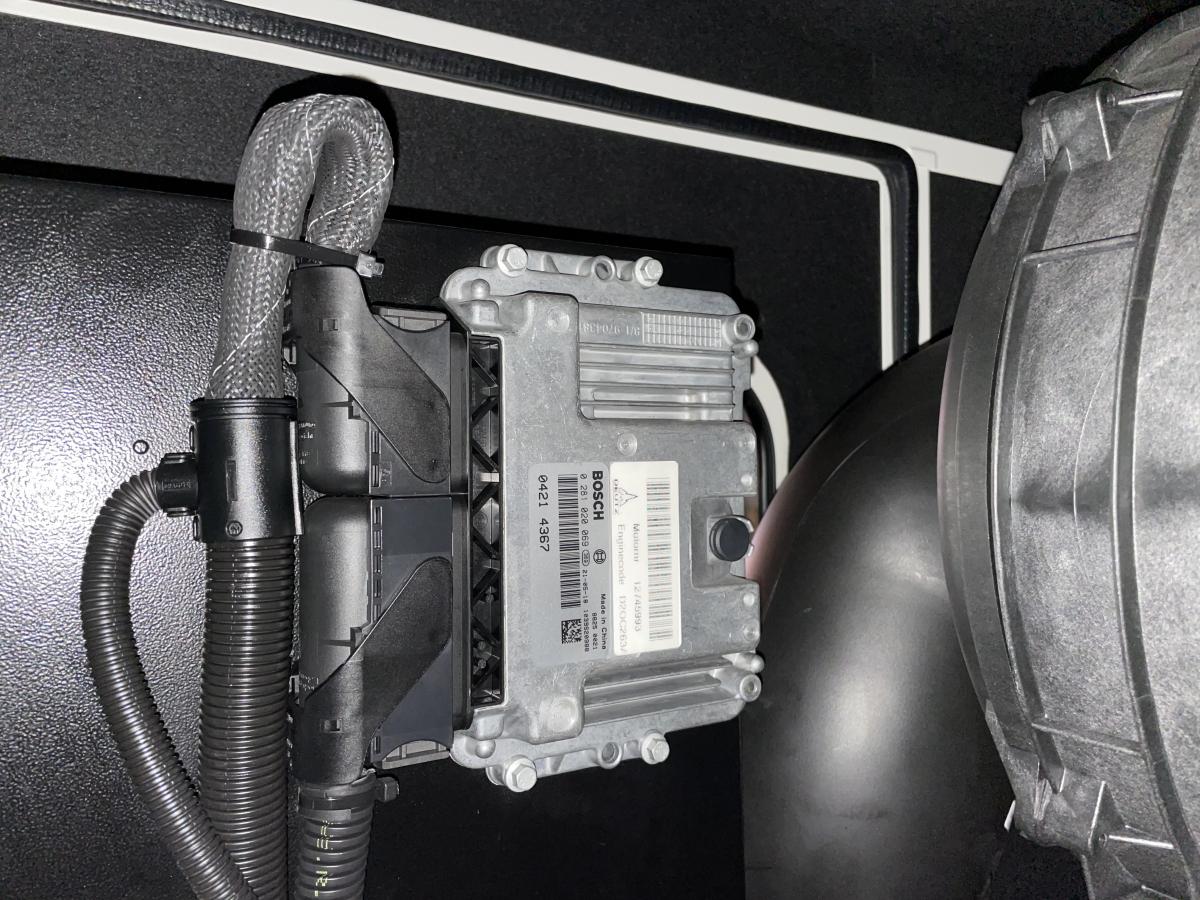

Electronic speed controller, control quality G3
Stable additional base frame with stapler pockets

Automatic start with InteliGen4/200 control

Internal emergency power switchgear 4-pole generator switch 400 amps

Function: In the event of a power failure, the start command is passed to the diesel generator. When the rated speed and rated voltage are reached, the generator switch is switched on. When the mains returns, the automatic system monitors the mains voltage. When this is stable again, the switch back to mains operation takes place WITHOUT INTERRUPTION. The diesel generator is stopped after the cooling time and waits in automatic mode for the next power failure.

A motor-operated power switch and a power supply option are required on site.

The new emergency generator as a backup power system is ready for operation and available from stock.
