Emergency generator as backup power system with a rated output of 700 kVA with Volvo Penta engine TWD 1645 GE parallel to the mains
Stock No.
1379
1379
Completion:
Generating Set:
stationary
Gen Set:
silent Set

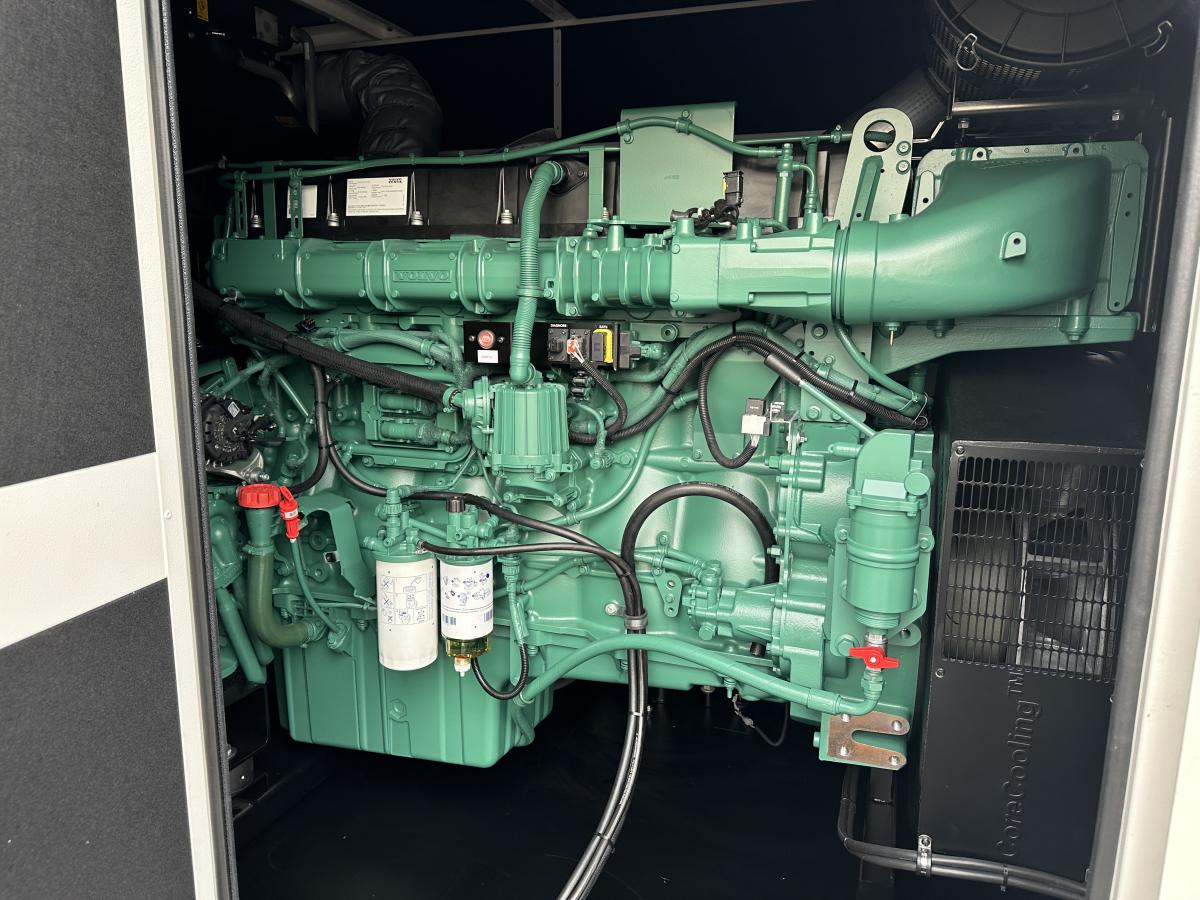

Technical Data Engine:
Engine Manufacturer:
Volvo Penta
Engine Type:
TWD 16 45 GE
Engine No.:
auf Anfrage
Engine Power:
616 KW PRP | 675 KW LTP
Cooling:
water-cooled
Starting:
electrical 24 V DC
Rotation:
1500 rpm
Fuel:
heating oil EN 590
Technical Data Generator:
Generator Manufacturer:
Stamford AvK
Gen Set:
S6L1D-C
Gen No.:
auf Anfrage
Gen Power:
700 kVA
Voltage:
400 / 231 Volt
Power Factor:
cos. - phi 0,8
Rotation:
1500 rpm

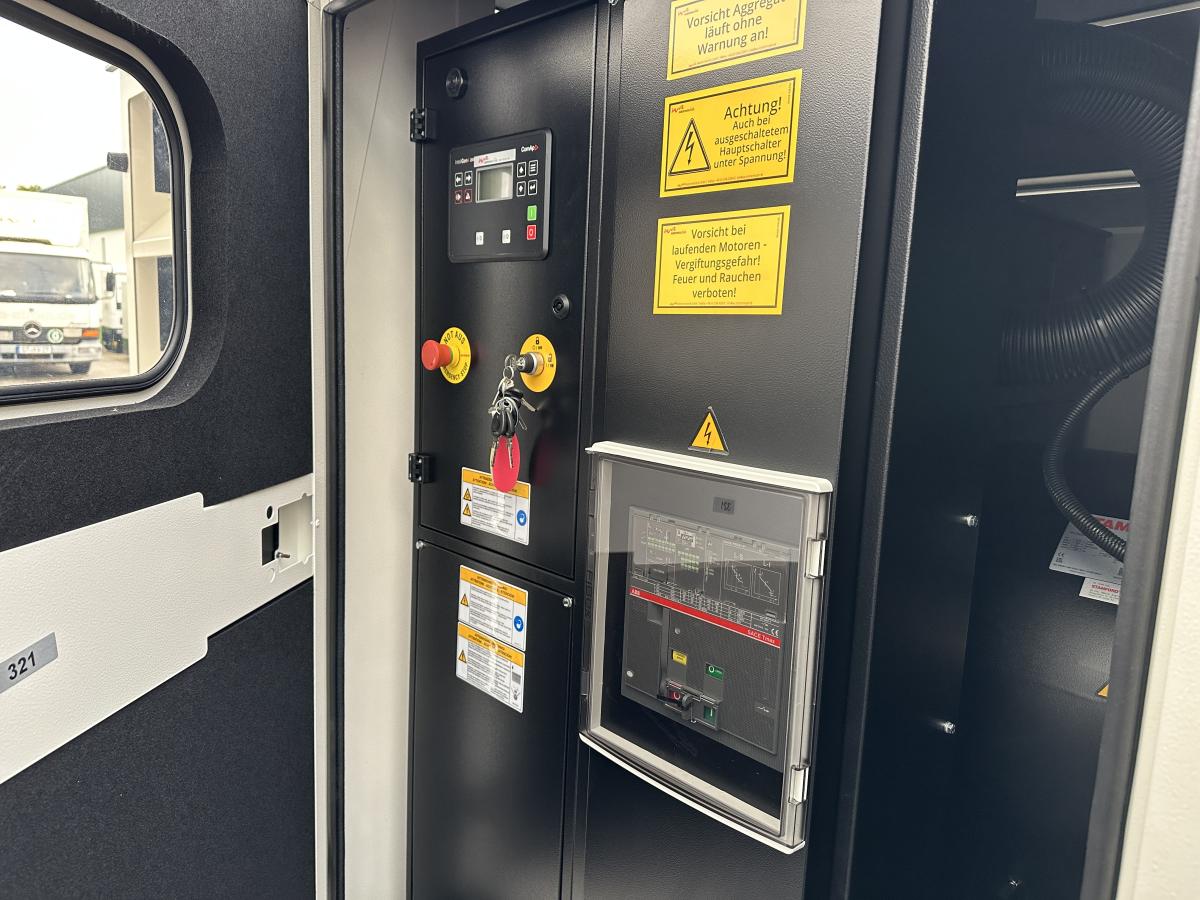

Control Unit:
Setup:
automatic start
Functions:
emergency power

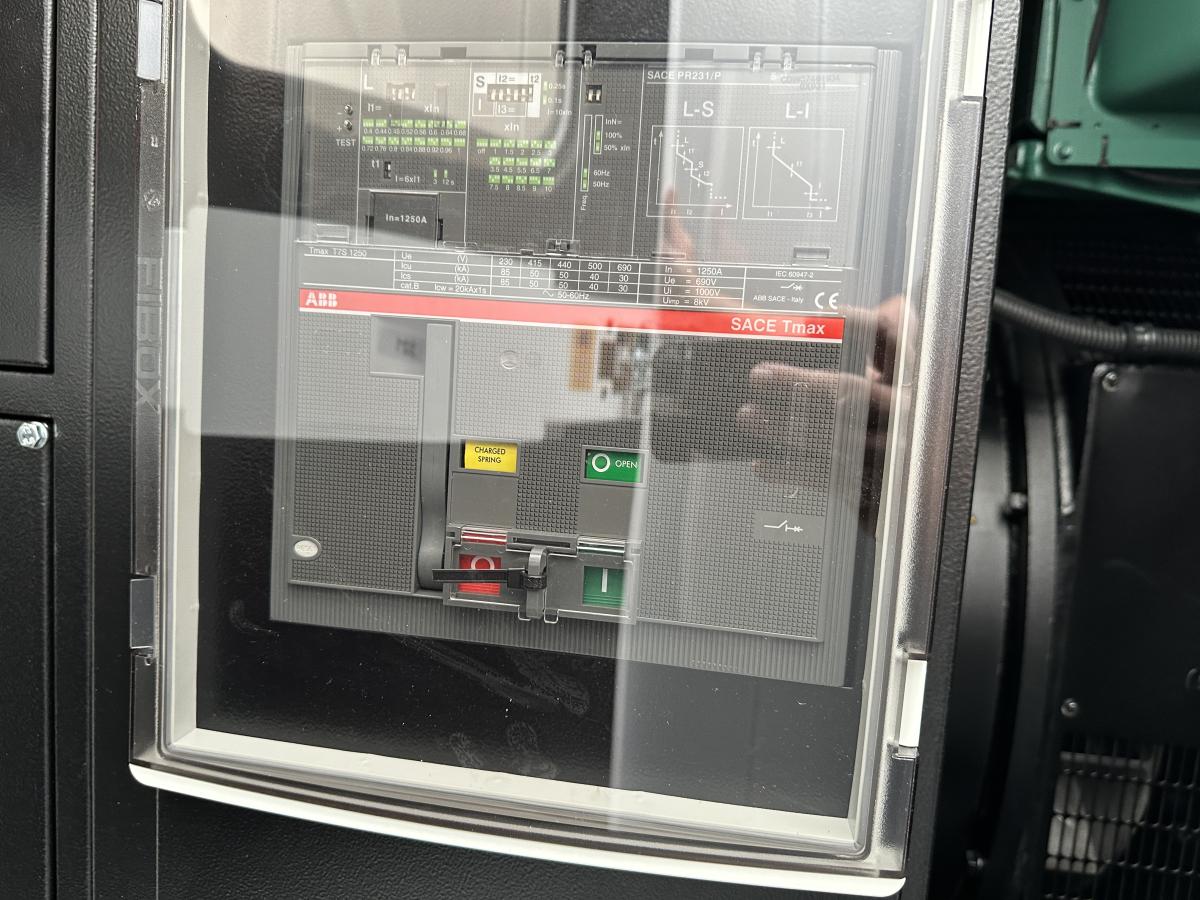

Switch:
gen switch 4 pole
Delivery:
set up
Width ca. mm:
Height ca. mm:
Depth ca. mm:
Fuel Tank:
Setup:
baseframe fuel tank with bassin
Width ca. mm:
Height ca. mm:
Depth ca. mm:
Capacity / Litre:
950
Dimensions of unit:
Width ca. mm:
1.860
Height ca. mm:
2.570
Length ca. mm:
5.520
Weigth ca. KG:
6.600
Usage:
Stock No:
1379
State:
New
year of manufacture:
2024
time of delivery:
ex work
Operating Hours:
1
Location:
Verl - Germany
Price plus VAT in €:
on request:
Reserved:
nein / no
delivery contents:

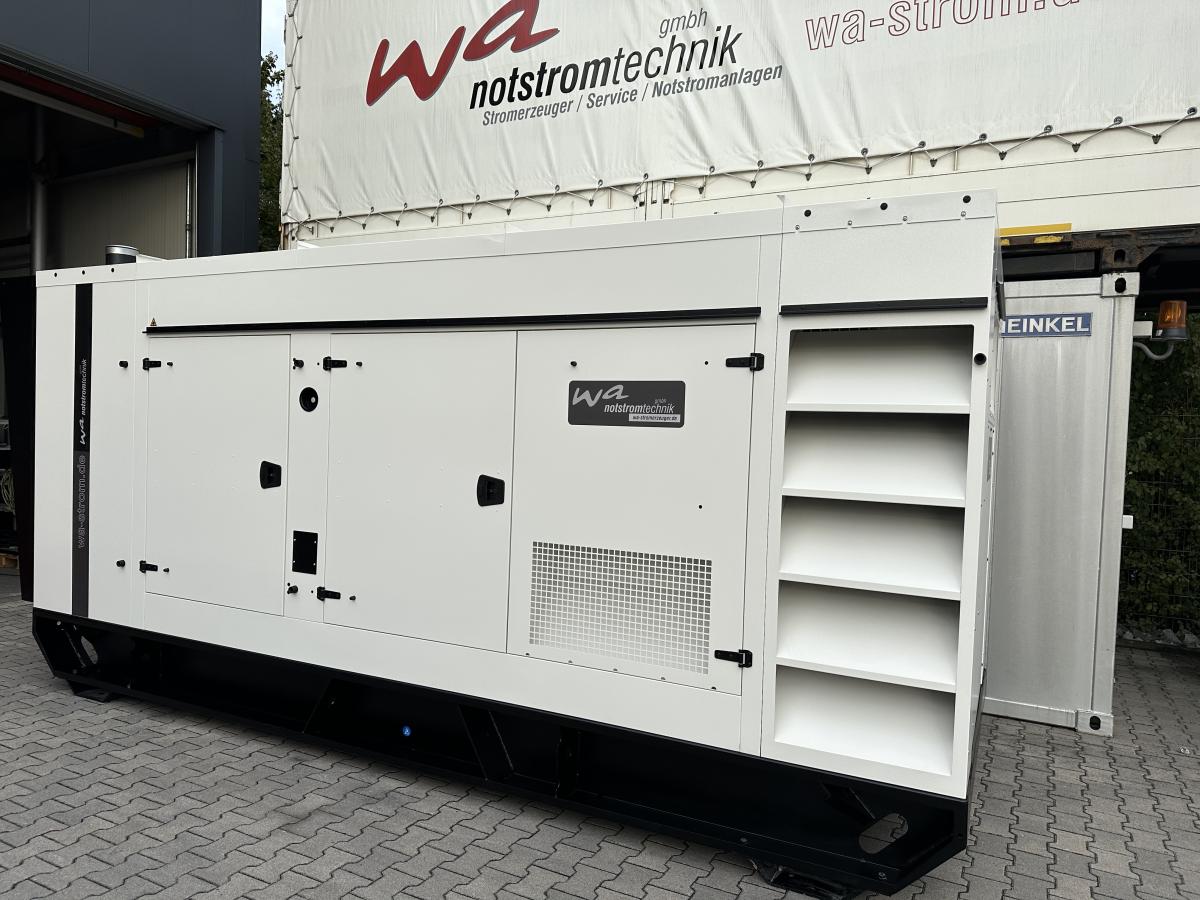

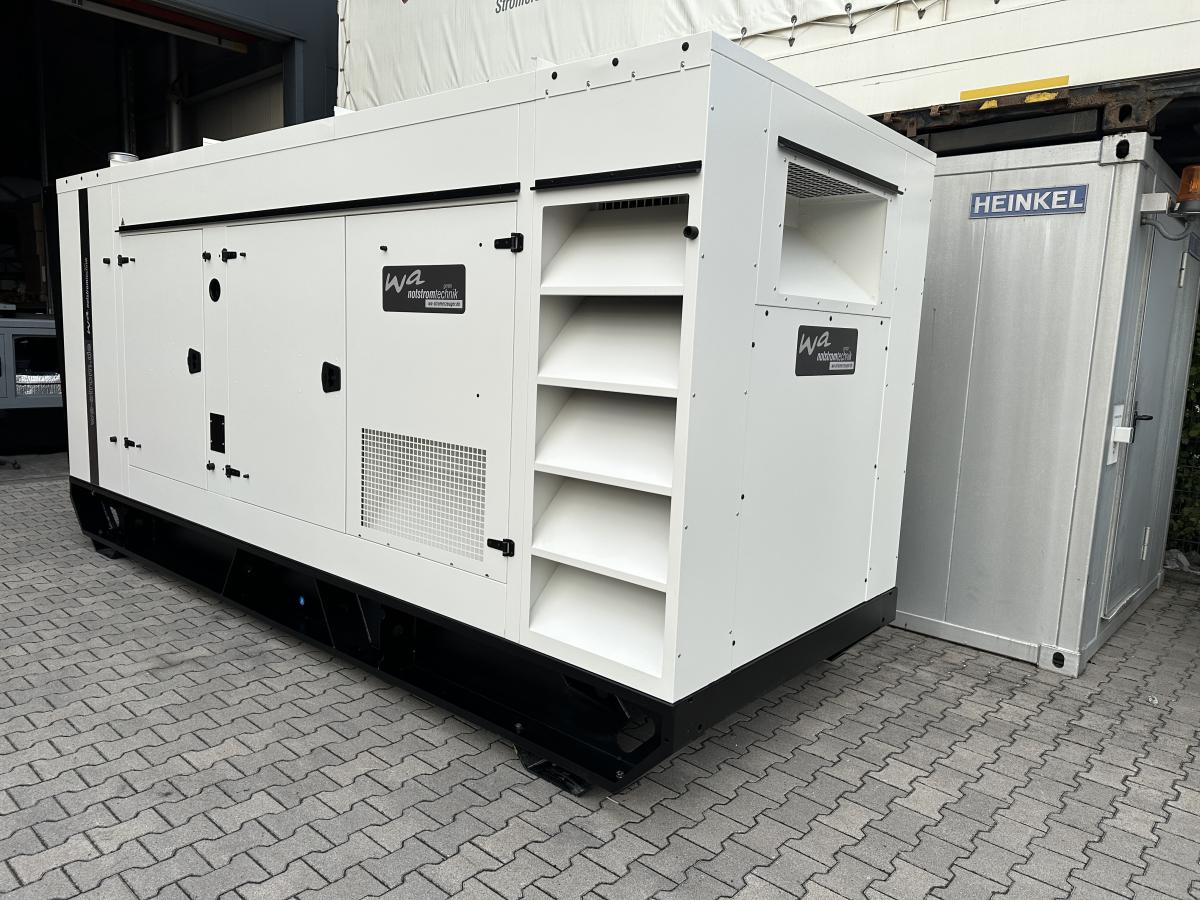

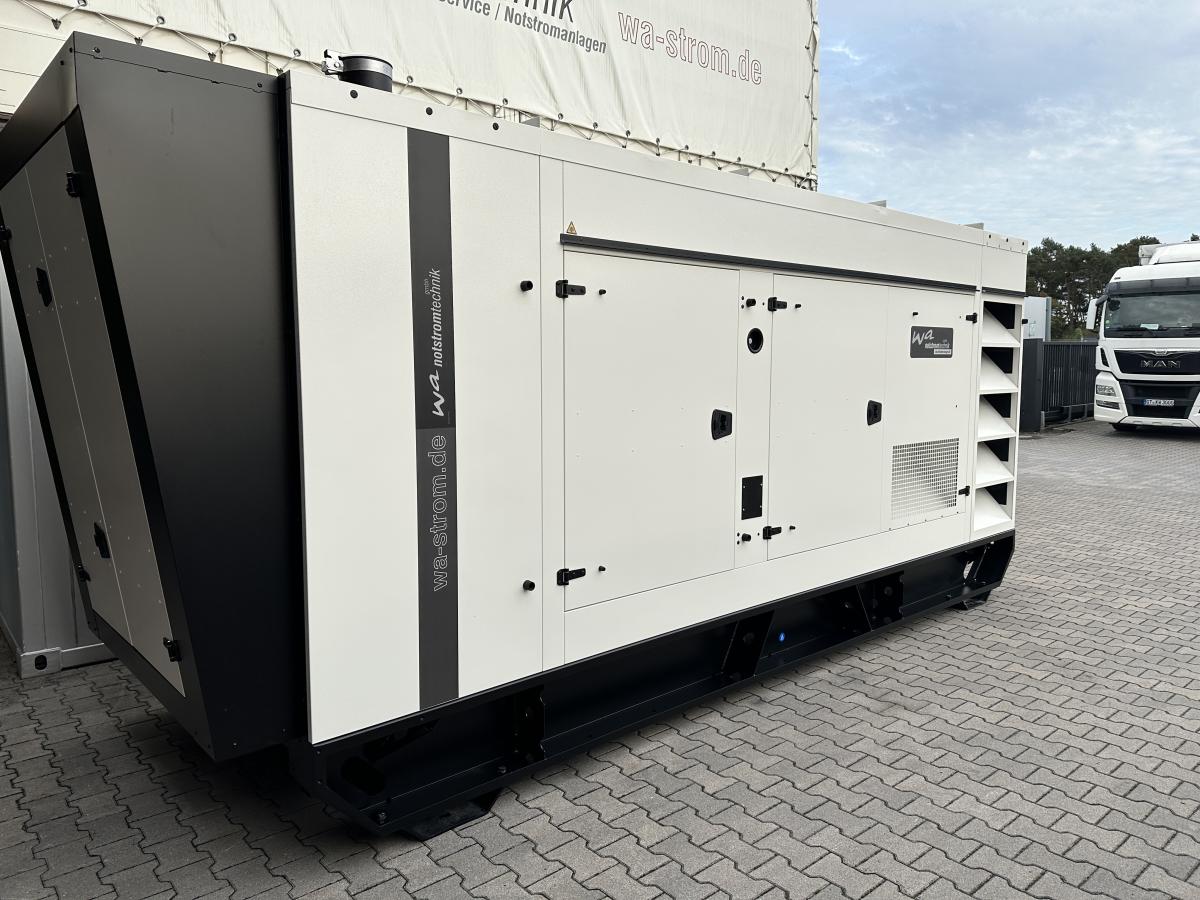

New, soundproofed (69 db"A" (+/- 2.4) as the mean value of an all-round measurement at 7 measuring points) emergency power generator type WA-VG 700 "S" as backup power supply, designed for continuous operation around the clock.The silencer hood is modular with spacious lockable doors for maintenance.

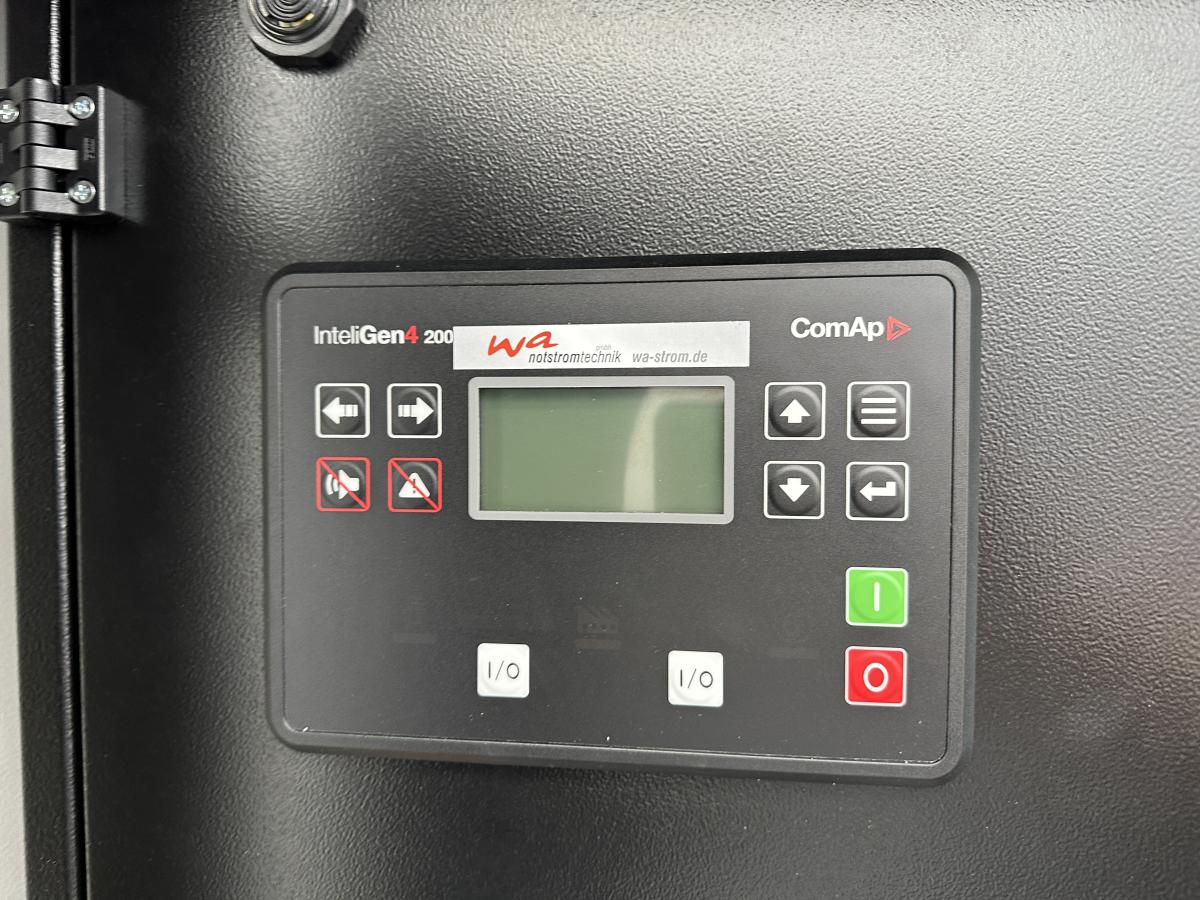

The built-in emergency power control, manufacturer ComAp, type InteliGen4 200 is designed for uninterrupted reverse synchronization overlapping synchronization with control of your on-site mains generator switchover.

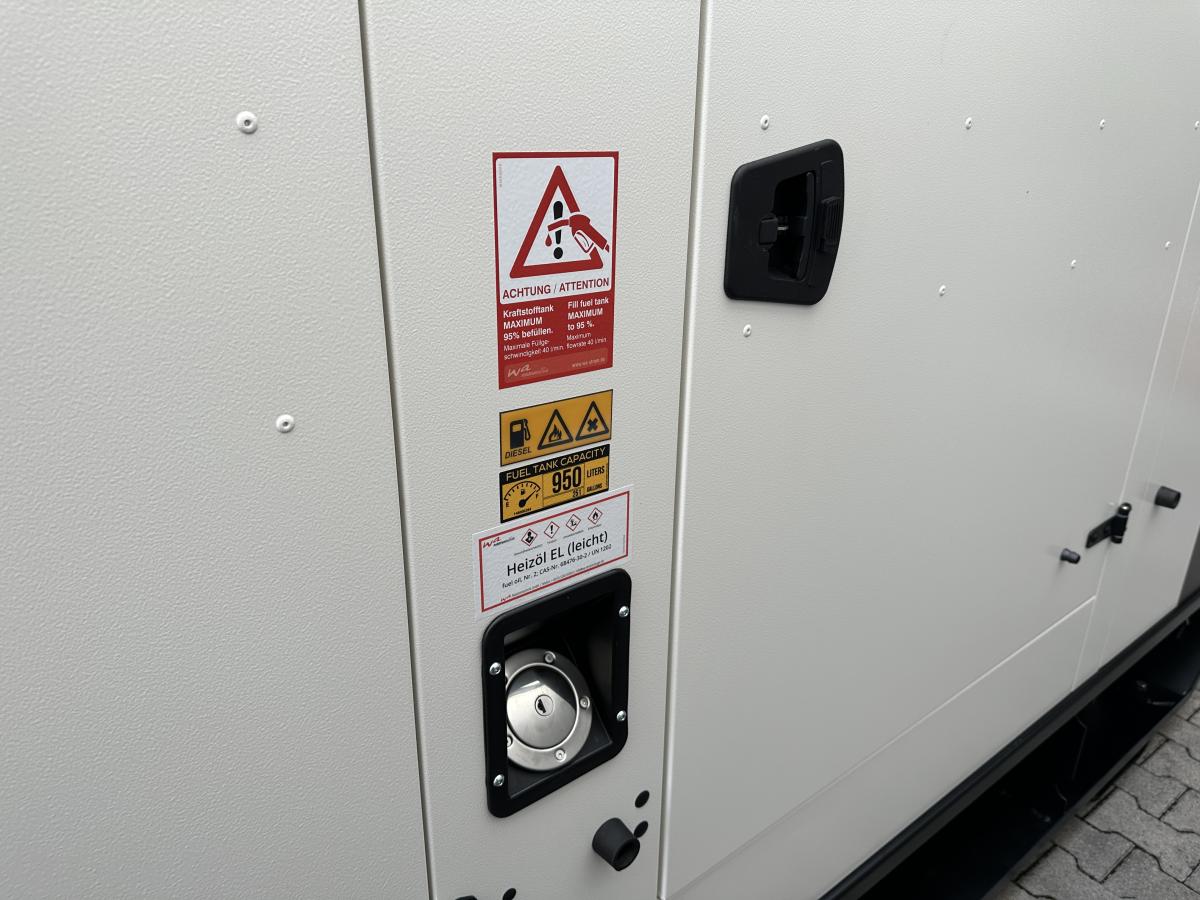

Internal day tank (950 liters) in the base frame with drip pan. Optionally with leakage monitoring
Fuel consumption according to Volvo data sheet:
Fuel consumption 25% l./h 40.40
Fuel consumption 50% l./h 76.40
Fuel consumption 75% l./h 109.10
Fuel consumption 100% l./h 141.80
Autonomy at 75% of load h. ≈ 9 h
-/-
Engine Fluids and Equipment
Type Lubricant Oil SAE 15W40
Amount of lubricating oil: 48 liters
Type Coolant Antifreeze VCS (Yellow)
Amount of coolant: 135 liters
Suction filter paper cassette
Battery capacity Ah 120
Number of batteries* 2
-/-
Air Data & Energy Balance
Combustion air volume flow LTP: 43.50 m3/min
Cooling Air Flow LTP: 684 m3/min
Exhaust flow LTP: 106 m3/min
Exhaust gas temperature LTP: 501 °C
Max. exhaust back pressure kPa 10.00
Exhaust heat LTP: 473 kWt
Energy on coolant LTP: 405 kWt
Radiant heat LTP: 26 kWt
