Mobile emergency power system with IT-TN switching 20 kVA with Yanmar motor, super sound-insulated
Stock No.
1411
1411
Completion:
Generating Set:
mobile
Gen Set:
silent Set

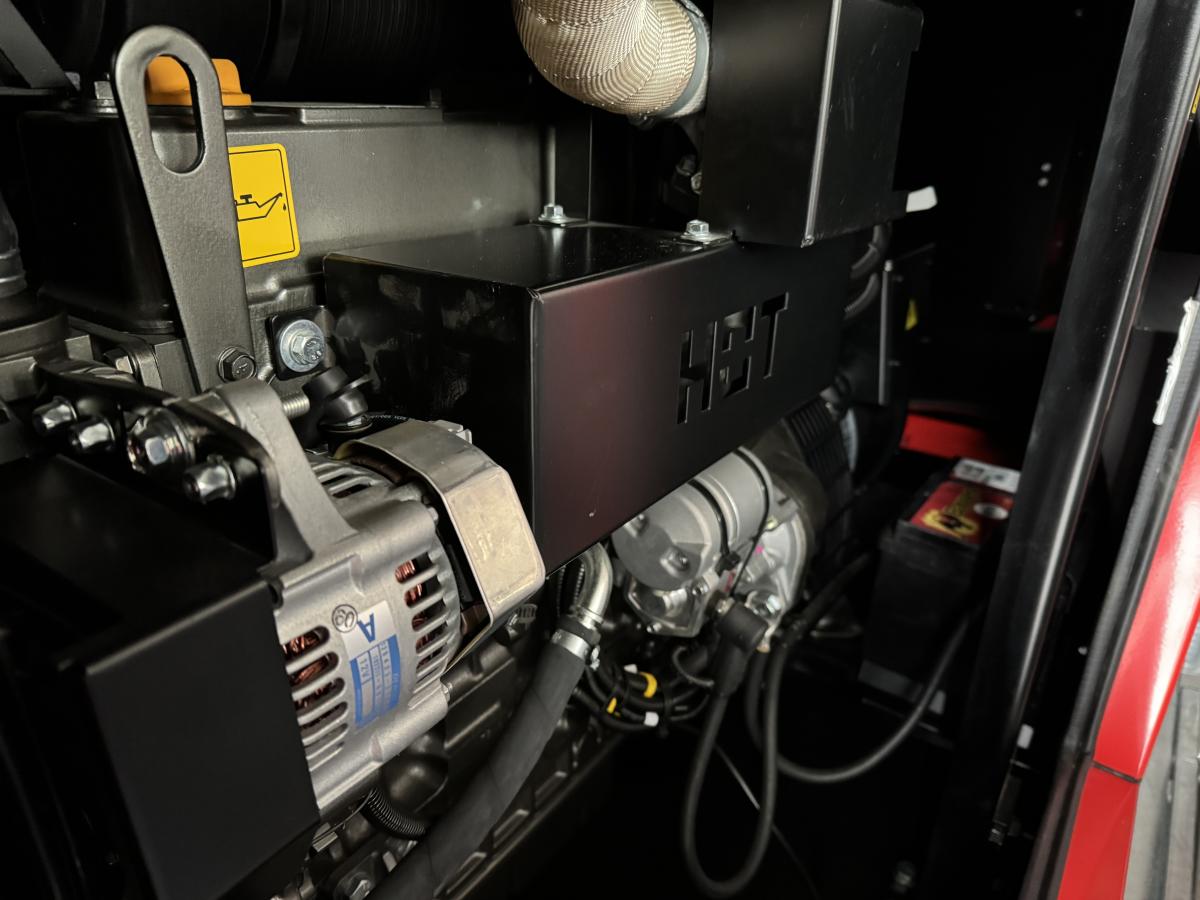

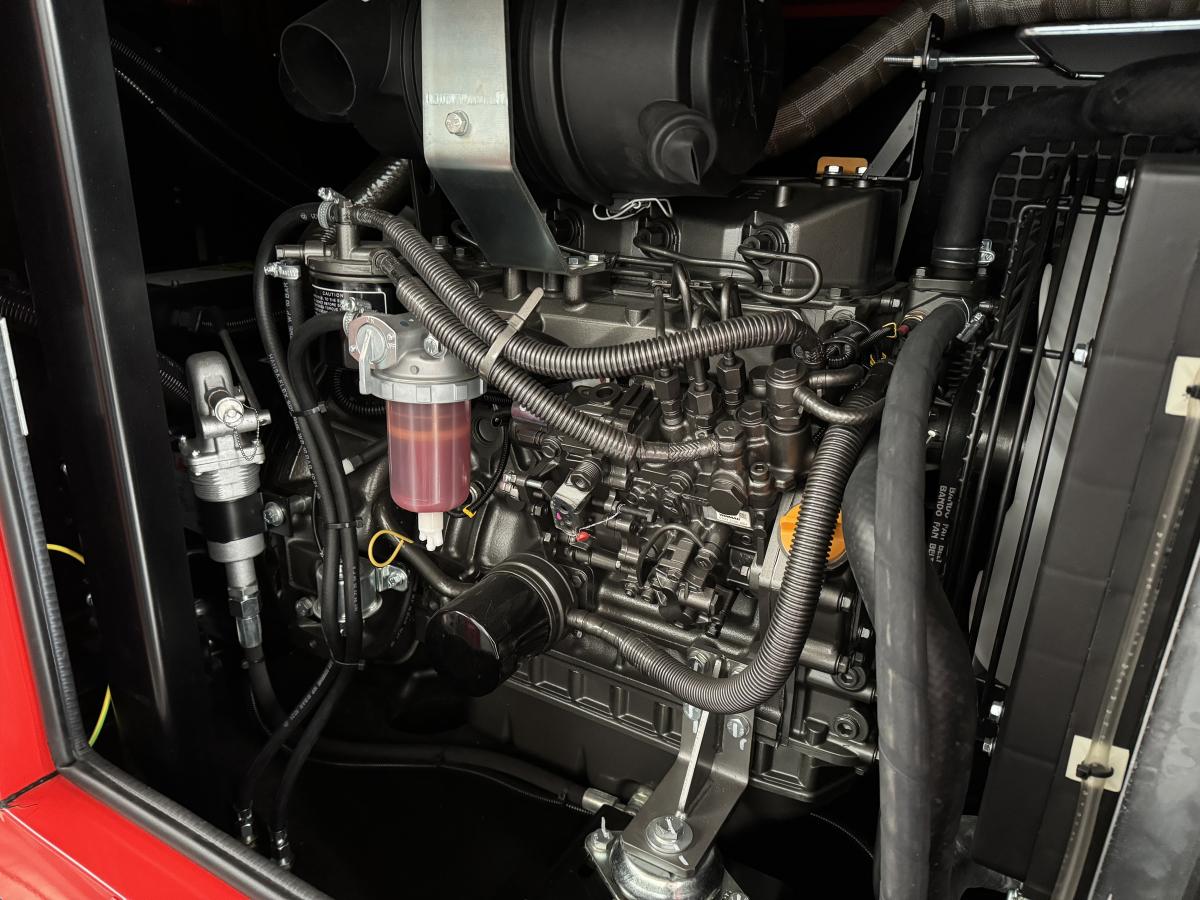

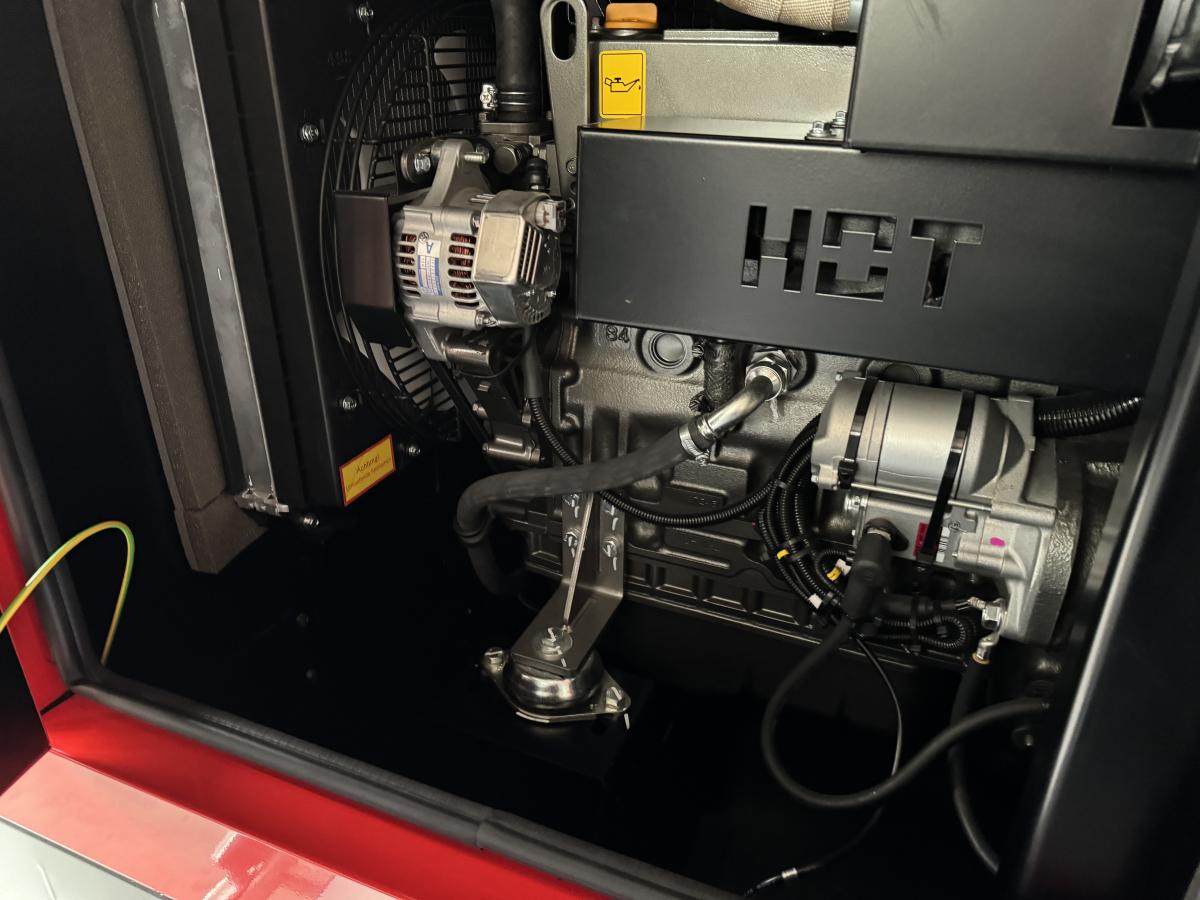

Technical Data Engine:
Engine Manufacturer:
Yanmar
Engine Type:
4 TNV 84 T
Engine No.:
97245
Engine Power:
19,1 KW
Cooling:
water-cooled
Starting:
electrical 12 V DC
Rotation:
1500 rpm
Fuel:
heating oil EN 590
Technical Data Generator:
Generator Manufacturer:
AvK Stamford
Gen Set:
S0 L 2 G1
Gen No.:
G21J434146
Gen Power:
20 kVA
Voltage:
400 / 231 Volt
Power Factor:
cos. - phi 0,8
Rotation:
1500 rpm
Control Unit:
Setup:
automatic start
Functions:
Keystart
Switch:
gen switch 4 pole
Delivery:
set up
Width ca. mm:
Height ca. mm:
Depth ca. mm:
Fuel Tank:
Setup:
baseframe fuel tank with bassin
Width ca. mm:
Height ca. mm:
Depth ca. mm:
Capacity / Litre:
100
Dimensions of unit:
Width ca. mm:
Height ca. mm:
Length ca. mm:
Weigth ca. KG:
Usage:
Stock No:
1411
State:
New
year of manufacture:
2024
time of delivery:
ex work
Operating Hours:
Neu
Location:
Verl - Germany
Price plus VAT in €:
on request:
Reserved:
nein / no
delivery contents:

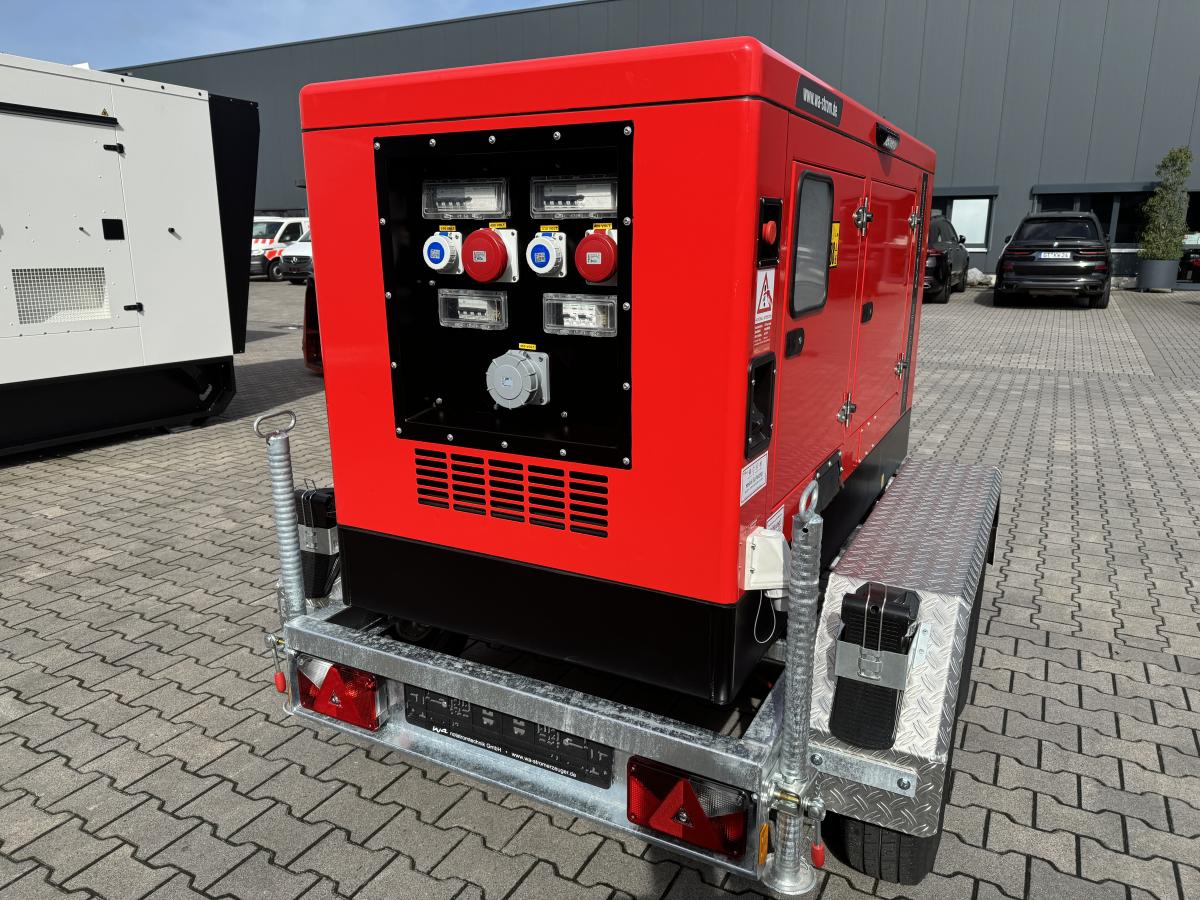

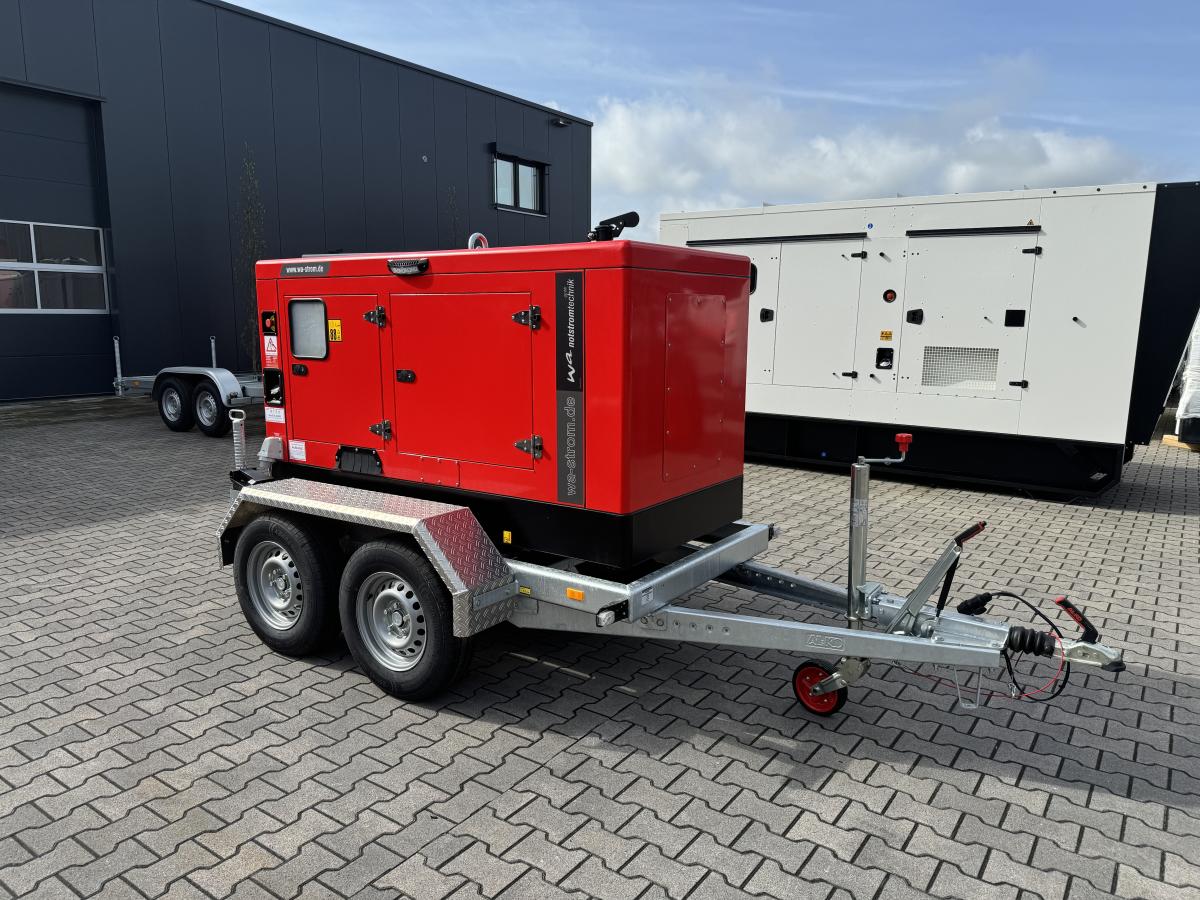

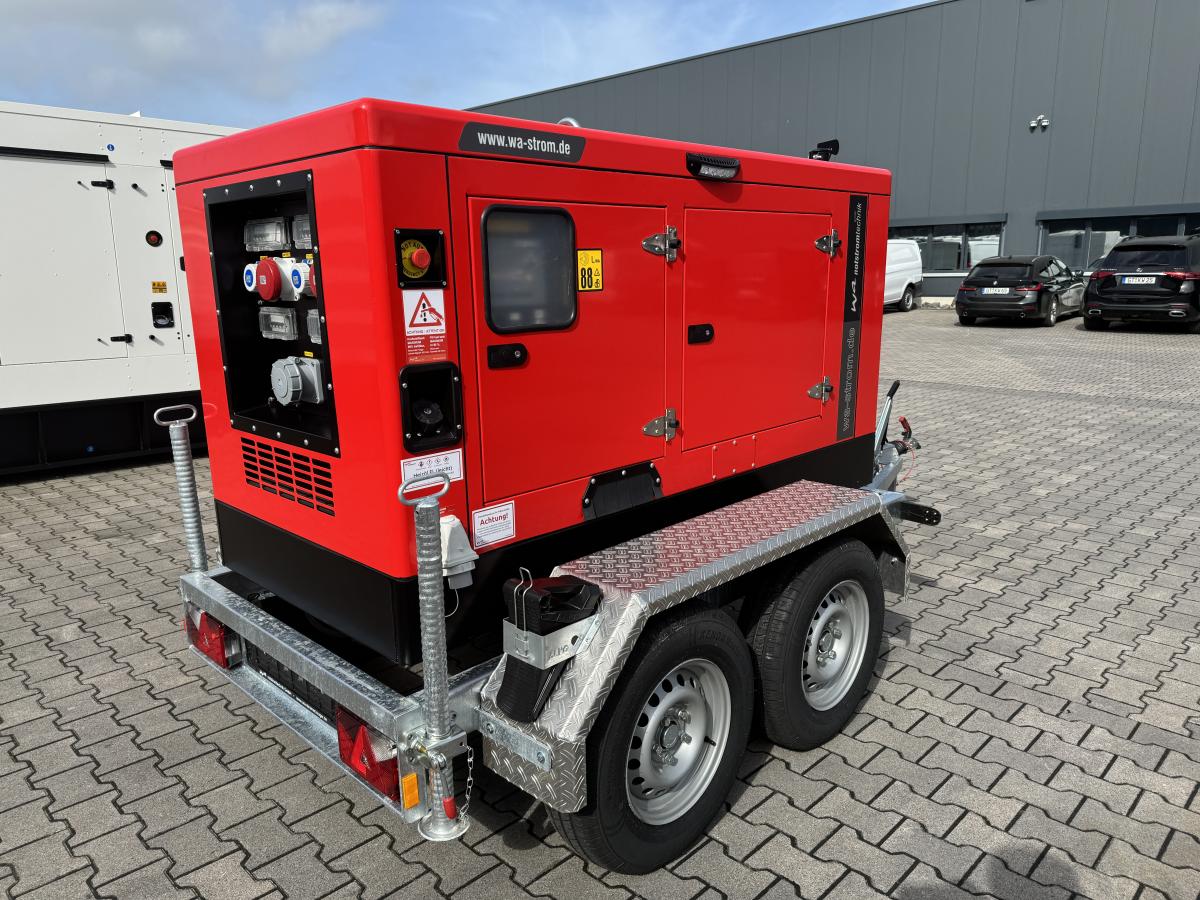

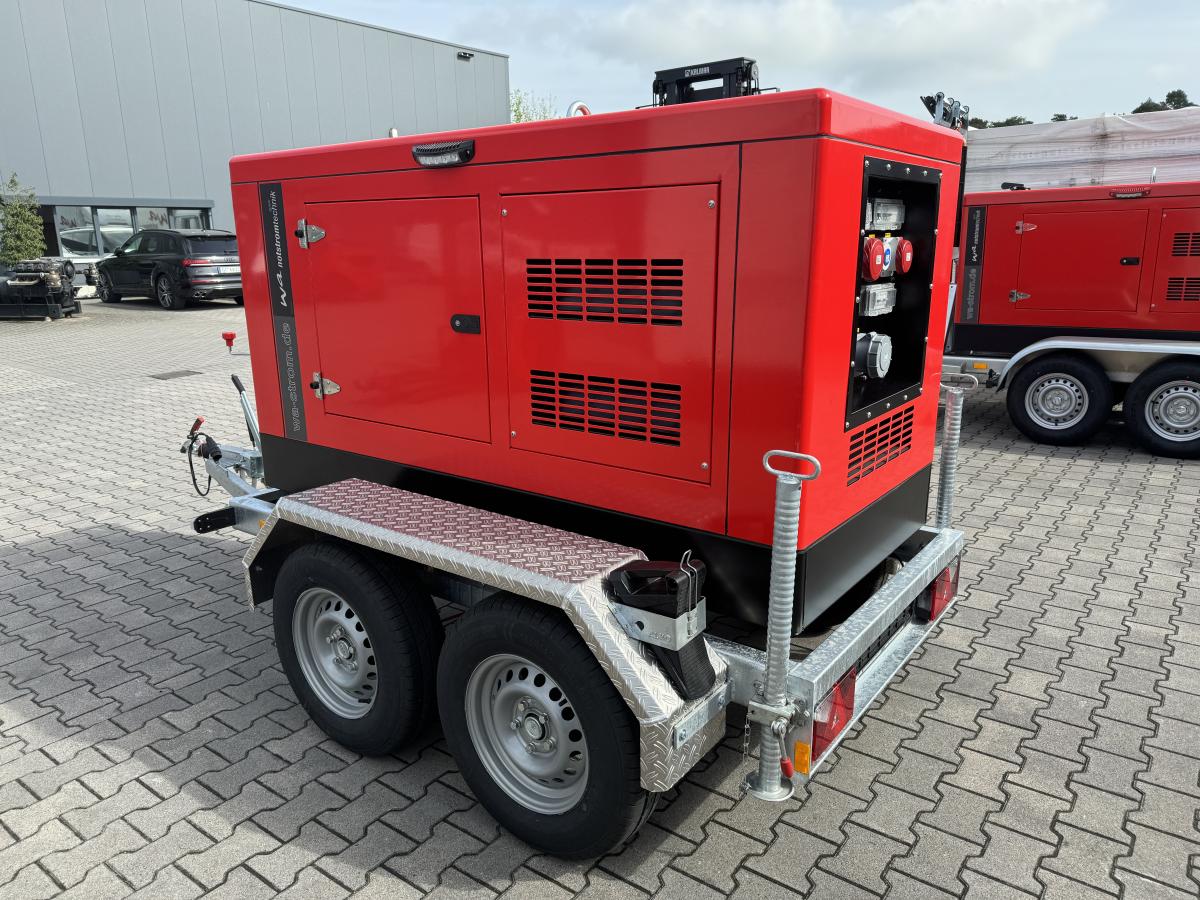

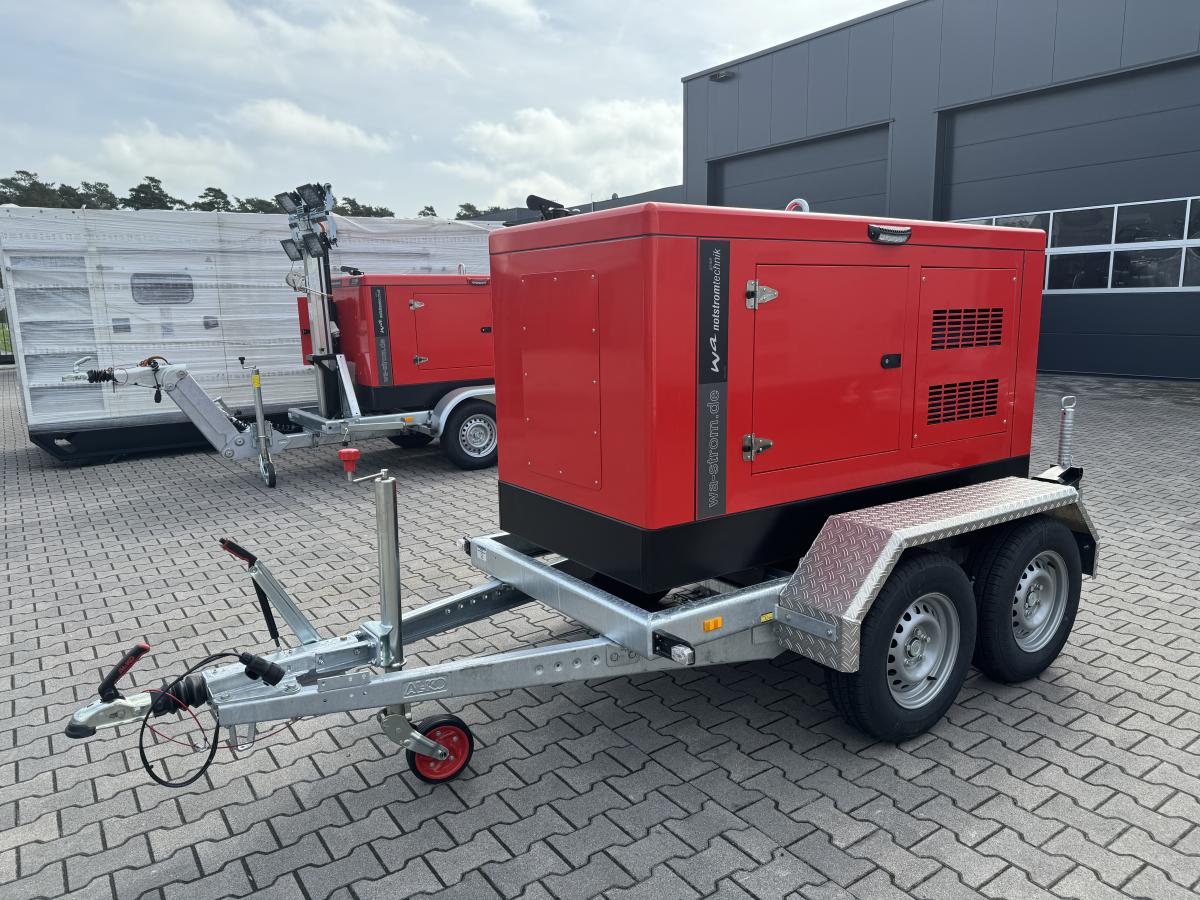

Mobile emergency power system as a backup power system, soundproofed with approx. 60 db"A" measured in 7 meters with an all-round measurement in 7 meters at 7 measuring points (+/- 2.4 db"A") as a backup power system Type: WA-Y 20 "S" T5Built on a 2-axle tandem chassis with a permissible total weight of 2,000 kg with a car ball head coupling, 12 volt version with 13-pin plug, walkable aluminum fenders.
Further features:

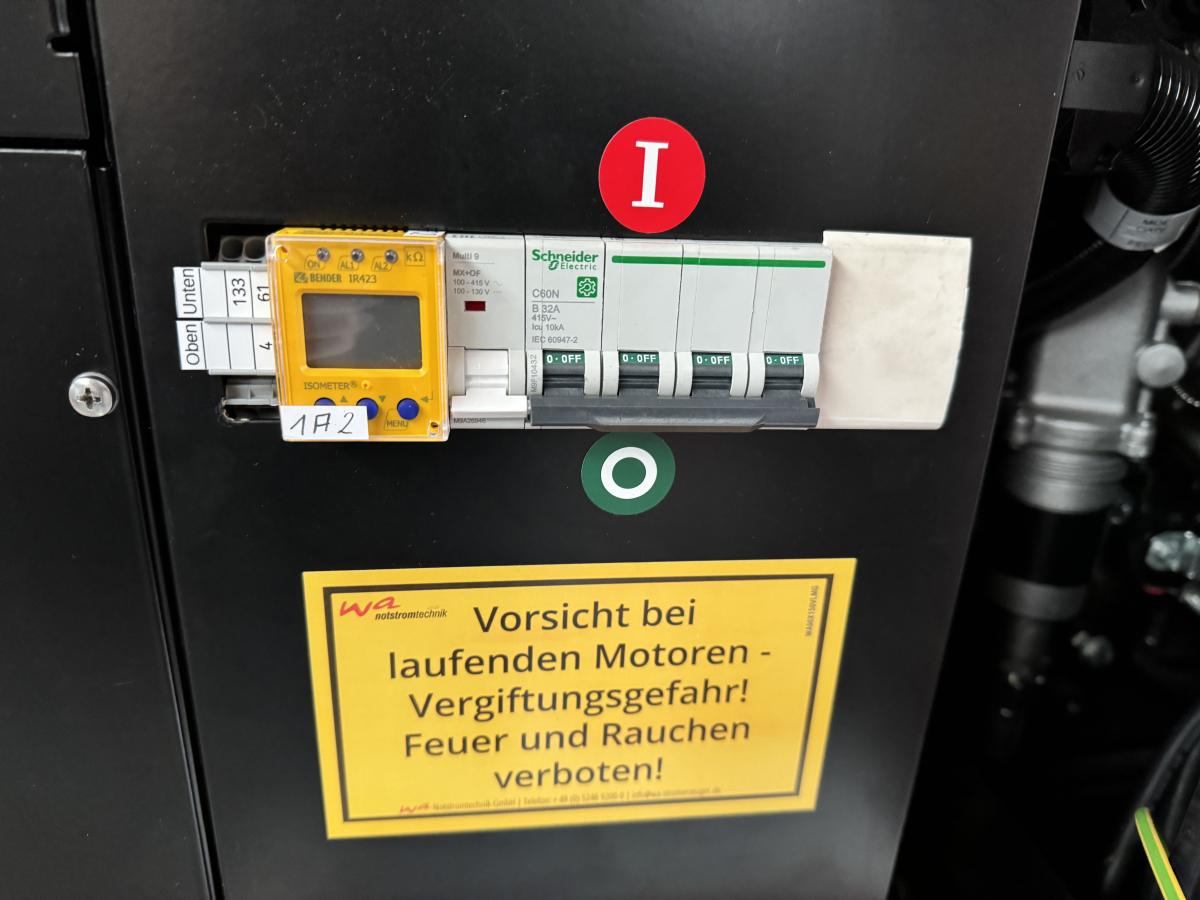

Including IT/TN 2-stage operating mode switching with Bender IR 423 insulation monitoring
Automatic control panel with digital control | Remote start input
Integrated battery charger and engine preheater including 230 V / 16 A connection with connection cable

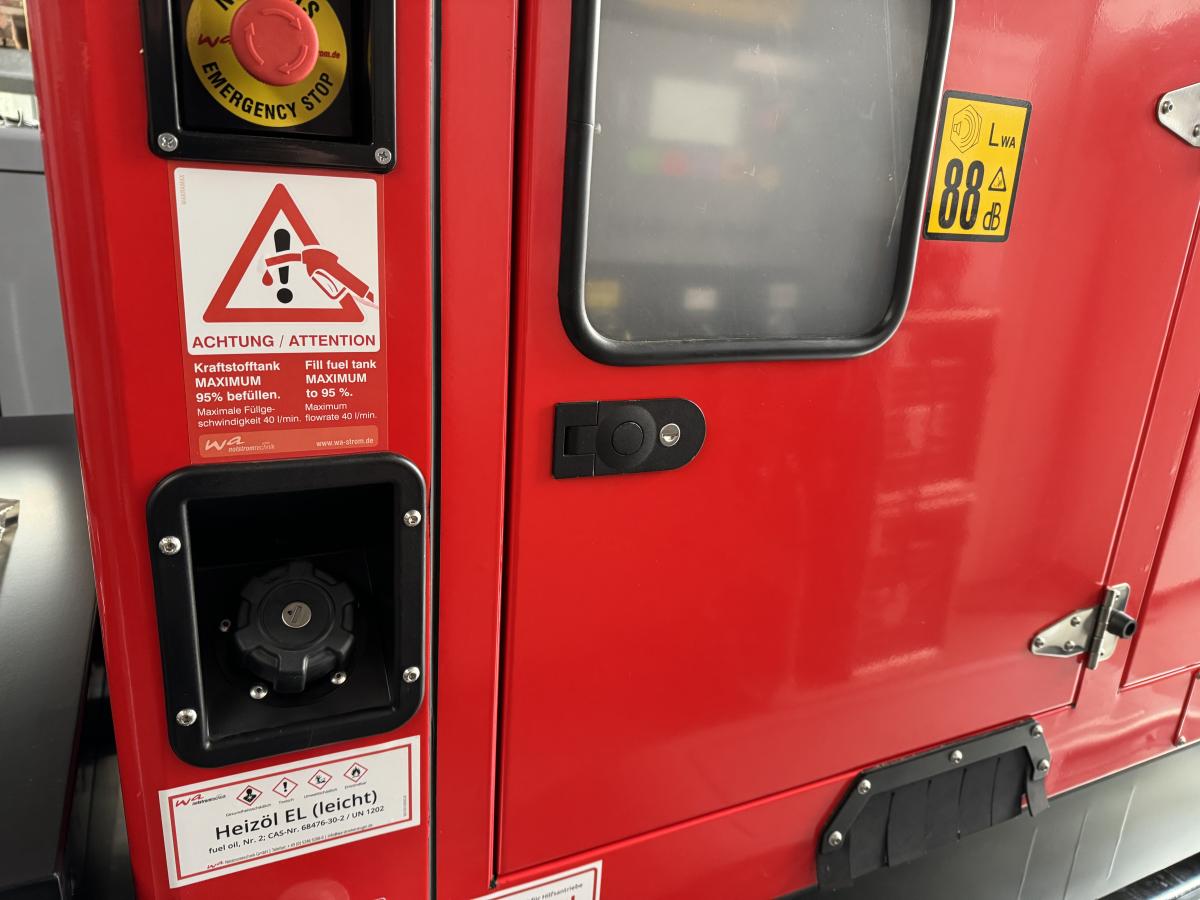

Internal day tank with 100 liters nominal capacity
Oil collection tray in the base frame to protect the environment
Oil drain pump for short service times during oil changes
Automatic function: In the event of a power failure, the start command is passed to the diesel generator. When the rated speed and rated voltage are reached, the on-site generator switch (e.g. ABB OTM_C21D) is switched on. If the mains returns, the internal automatic system in the switch monitors the mains voltage. When this is stable again, the switch back to mains operation takes place WITH INTERRUPTION. The diesel generator is stopped after the cooling time and waits in automatic mode for the next power failure.

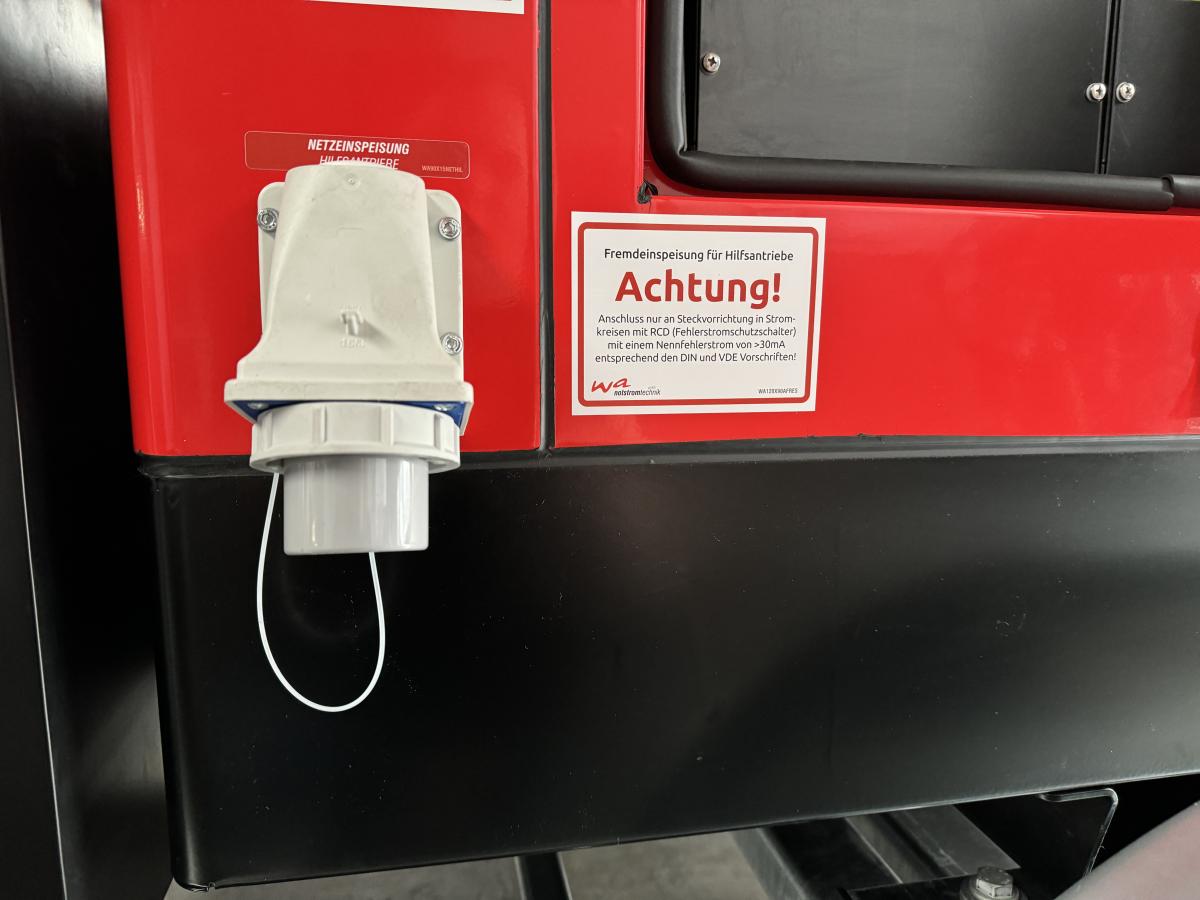

A motor-operated mains/generator switch and a feed-in option are required on site.
The new mobile emergency power generator as a backup power system is ready for operation and immediately available from the Verl warehouse.

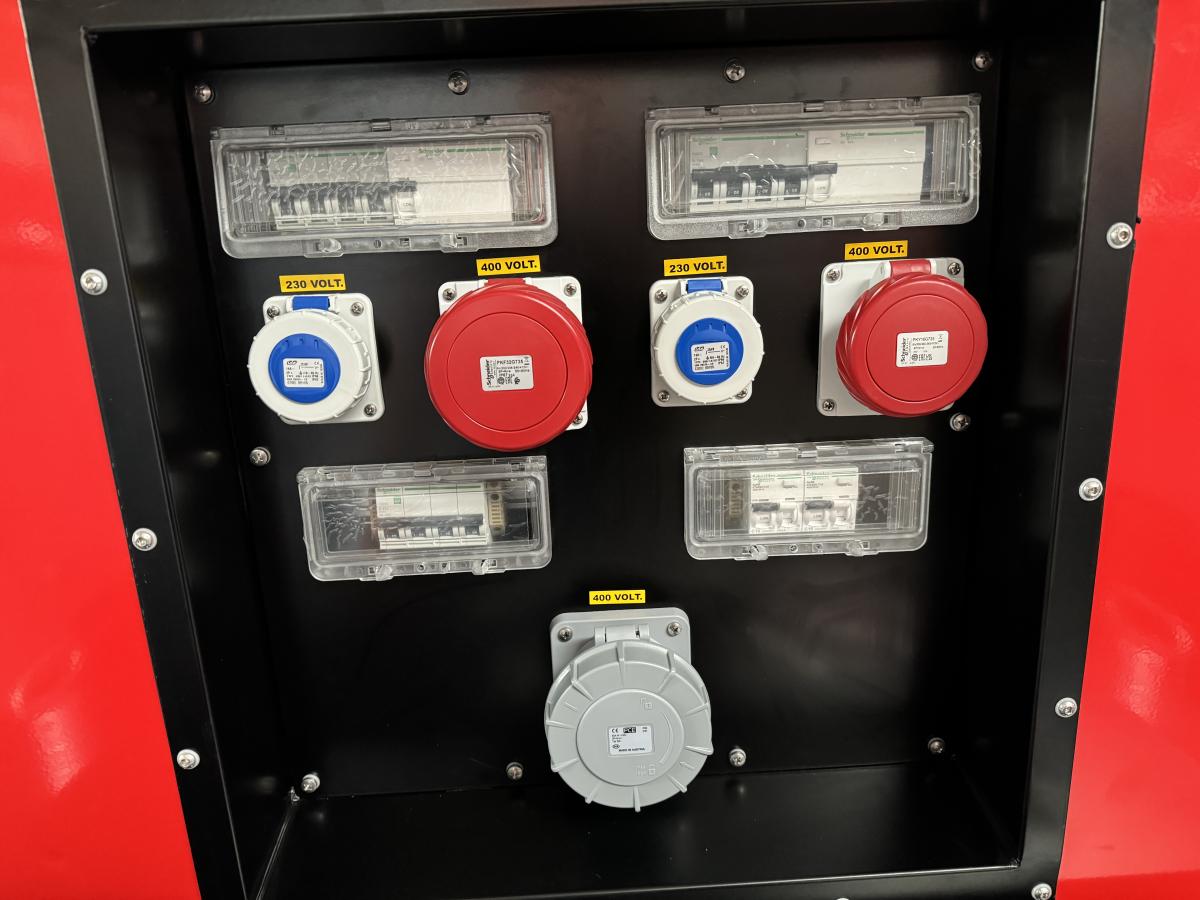

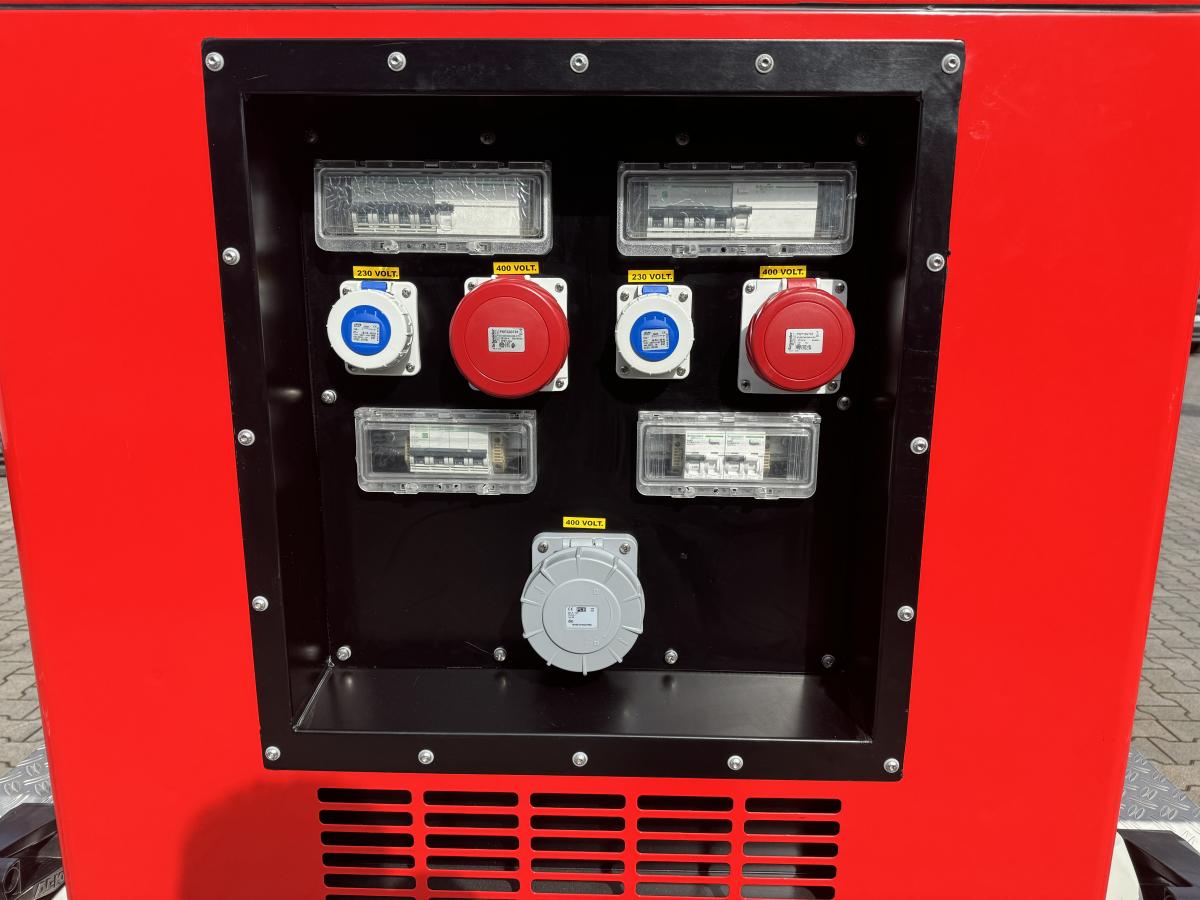

The following sockets are factory installed:
1 x CEE 400V / 63A / IP67 - 1h | for building supply according to VDE 0100-551-2
1 x CEE 400V / 32 A / IP67 - 6h | for mobile application IT operation with 30 mA RDC
1 x CEE 400V / 16 A / IP67 - 6h | for mobile application IT operation with 30 mA RDC
2 x 230V / 16 A IP67 for mobile application IT operation with 30 mA FI-LS “C 16” RDC
The following accessories are available for an additional charge.
Optionally with fully automatic 4-pole ATS switching 63 amps
Optionally with fully automatic 4-pole ATS switching 63 amps
