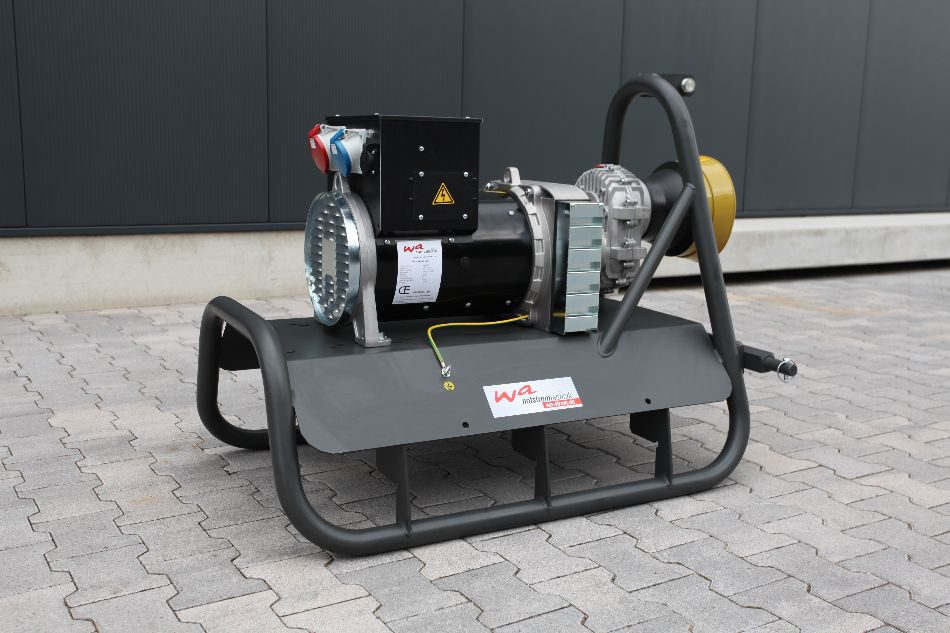

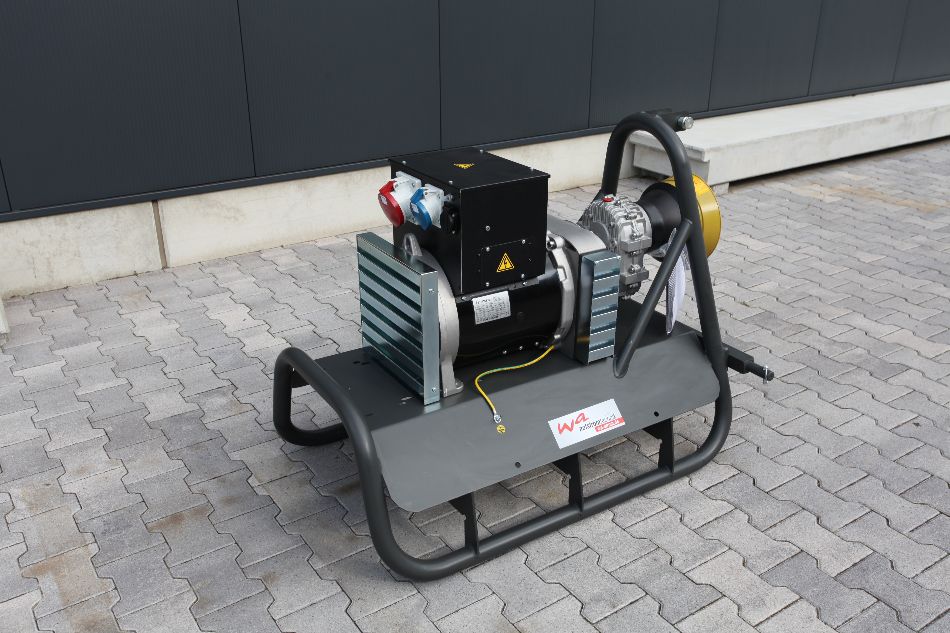

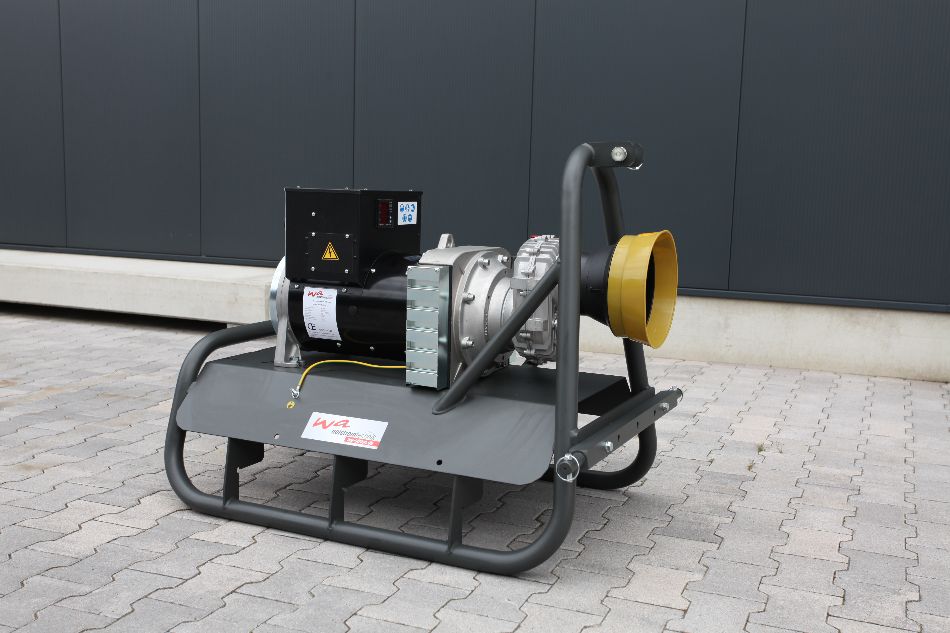

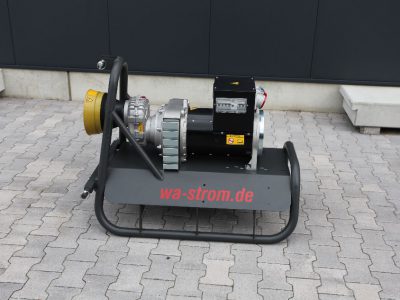

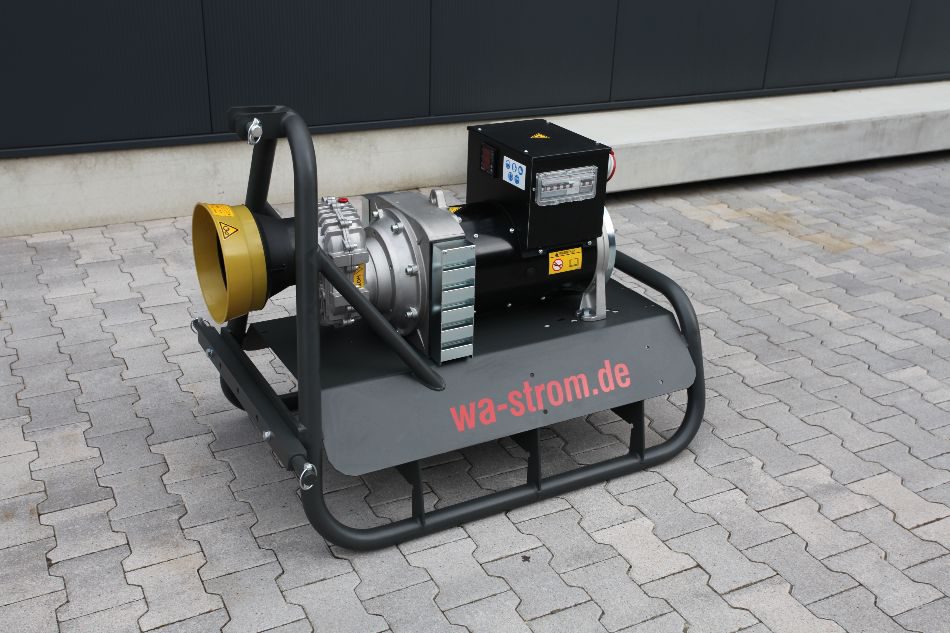

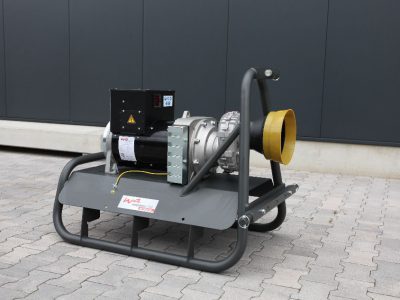

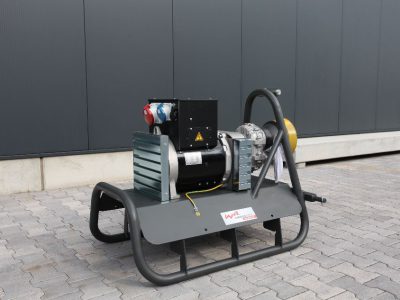

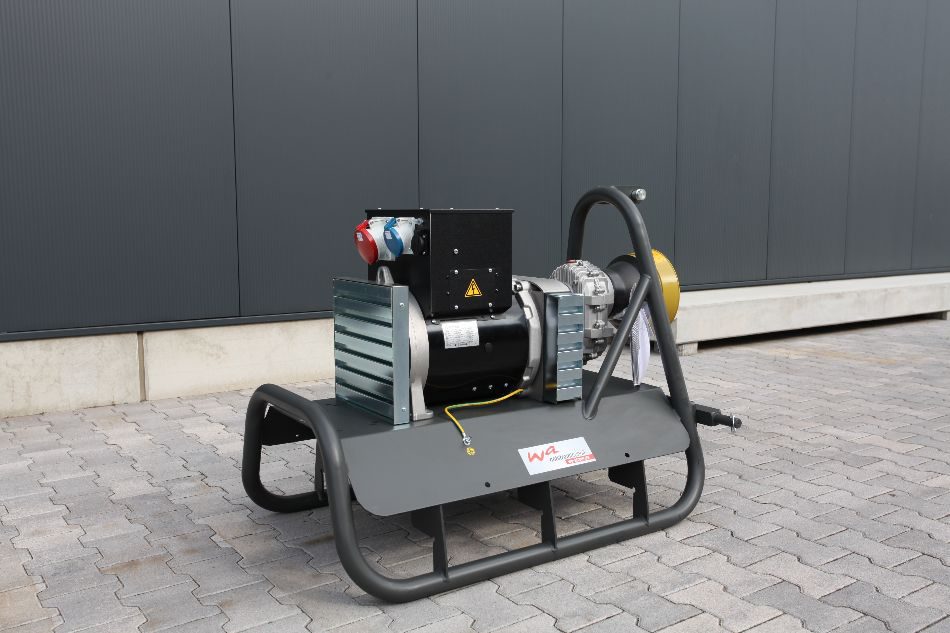

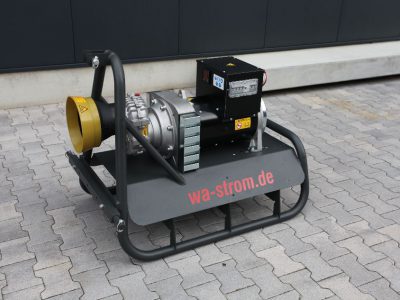

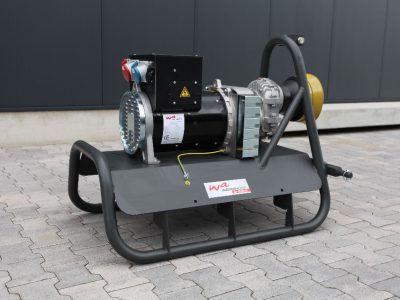

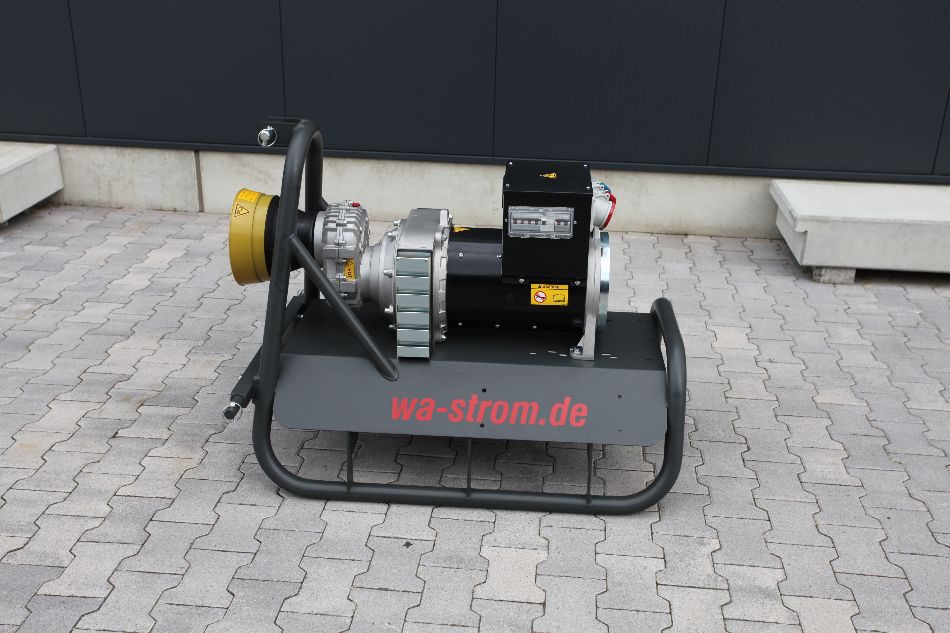

PTO generator 19 kVA

PTO generator 19 kVA  –  Brushless with electronic voltage regulator AVR – Synchro

Our PTO power generators are the perfect solution for farmers looking for an inexpensive yet effective way of providing themselves with electricity even during a power outage.

PTO generator

WA-ZB 19/4
EAN 0619915364079
Power generators 3-phase
Continuous power / kVA 19,8
Efficiency / % 85,8
Voltage / Volt  400/230
Frequency / Hz  50
Power generators 1-phase
Continuous power / kVA  7,9
Voltage / Volt  230
Frequency / Hz  50
Gear for 540er PTO power generators

Tractor power / mind. KW  44
Tractor power / min. PS  60
Number of revolutions PTO power generator / r.p.m  430
Number of revolutions generator / r.p.m 1.500
Required PTO power generator / NM  570
Dimensions base frame

Length / mm 1.135
Width / mm  800
Height / mm  915
Weight / kg  192

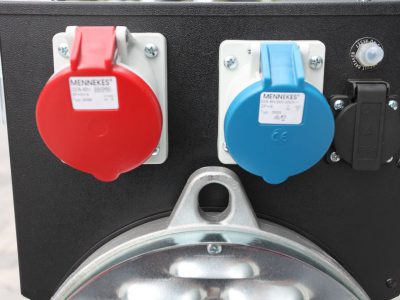

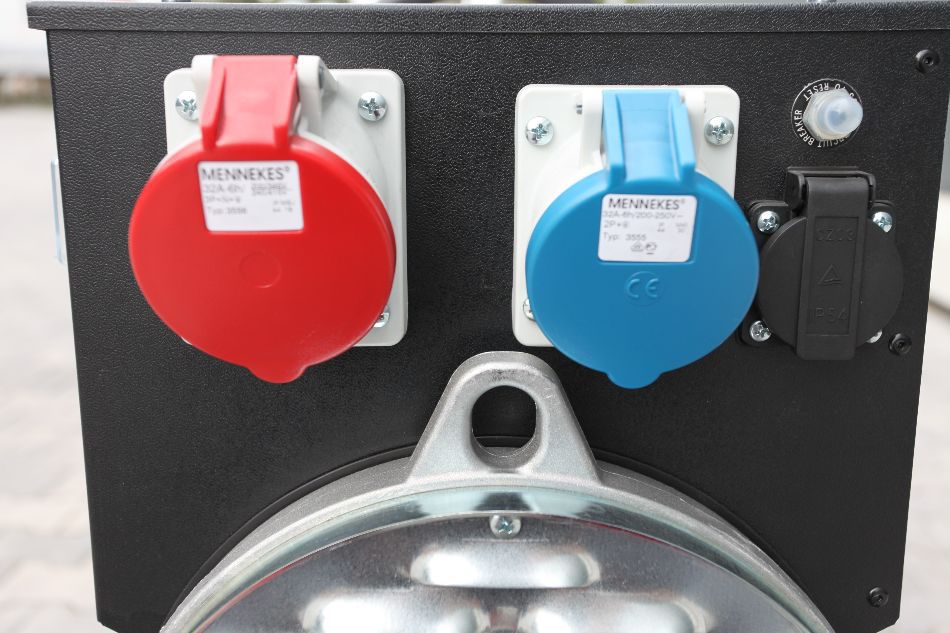

Sockets / Mennekes

230 Volt CEE IP67 / 32 Amp.  yes
400 Volt CEE IP67 /32 Amp.  yes
400 Volt CEE IP67 / 63 Amp.  -/-
400 Volt CEE IP67 / 125 Amp.  -/-
Standard equipment / 2 years guarantee

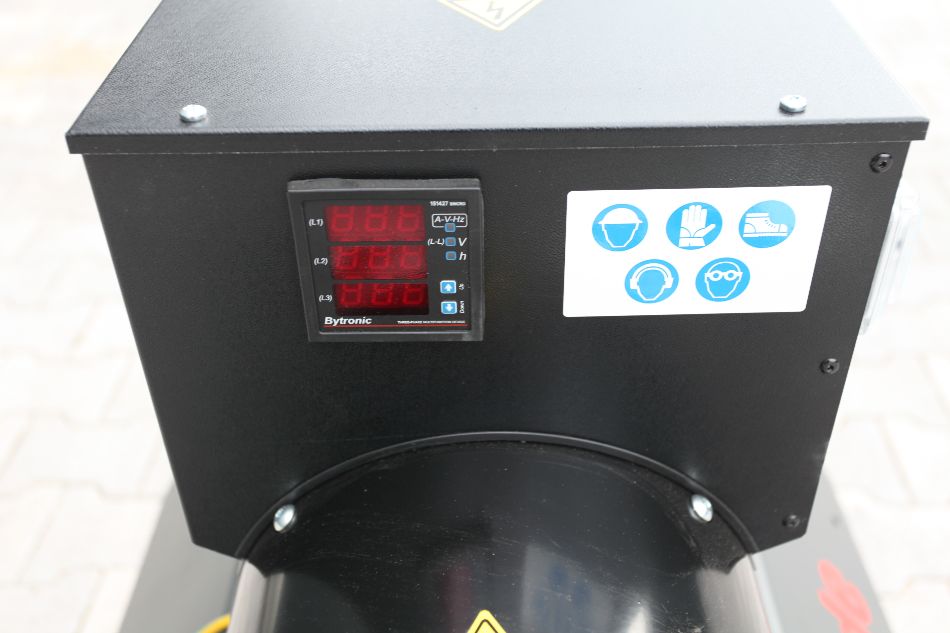

Operating hours counter / digital  yes

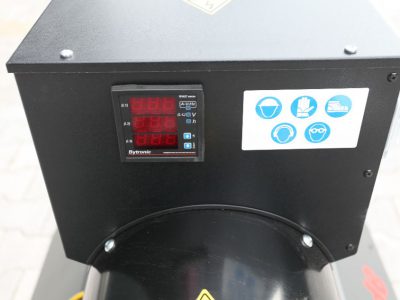

Voltage display / digital yes
Amperemeter / digital  yes
Generator switch / 4-pole  yes
Short circuit current / 3,0 x inenn  yes
Voltage accuracy / +/- 0,5 %  yes
Insulation class / H  yes
Protection / IP 44  yes
Three point suspension  yes
Transmission oil filling / factory  yes
Instruction manual / german  yes
Propshaft splash  yes
Voltage regulation / AVR 3-phase  yes
Operational / at delivery  yes
CE / (2006/95EG)  yes
Overthrow secure base frame  yes
Overload protection  yes
Plant test run  yes
Price € / net plus VAT
€ 2.860
Options only in conjunction with the POT power generator / Price € net plus VAT

Cross earthe electrode / with 5 m electric wire € 40
Switch power generator / building installation  € 125
Voltage and Hz monitoring / built-in  € 325
ISO-Sentinel space / house operation
on demand
