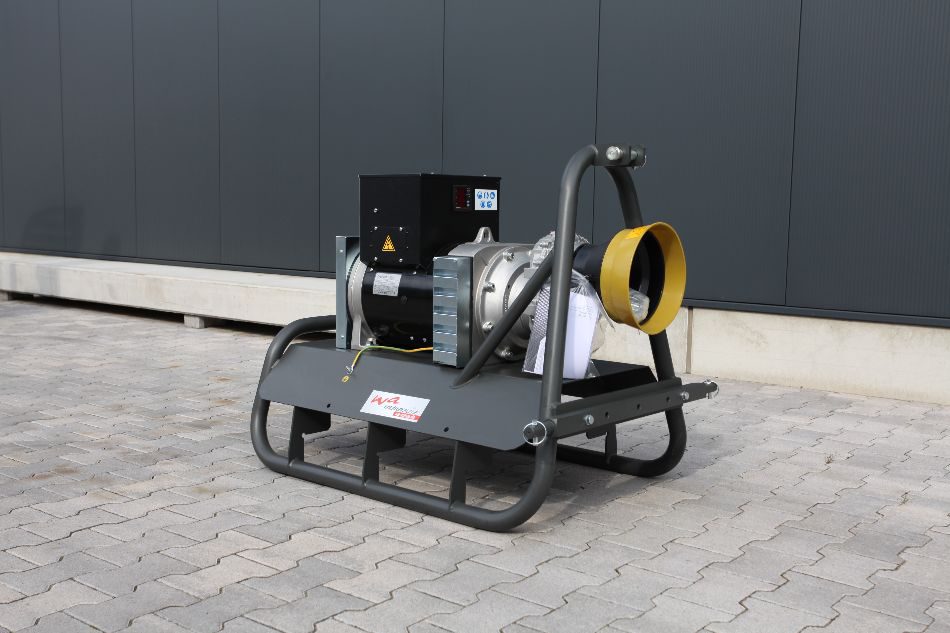

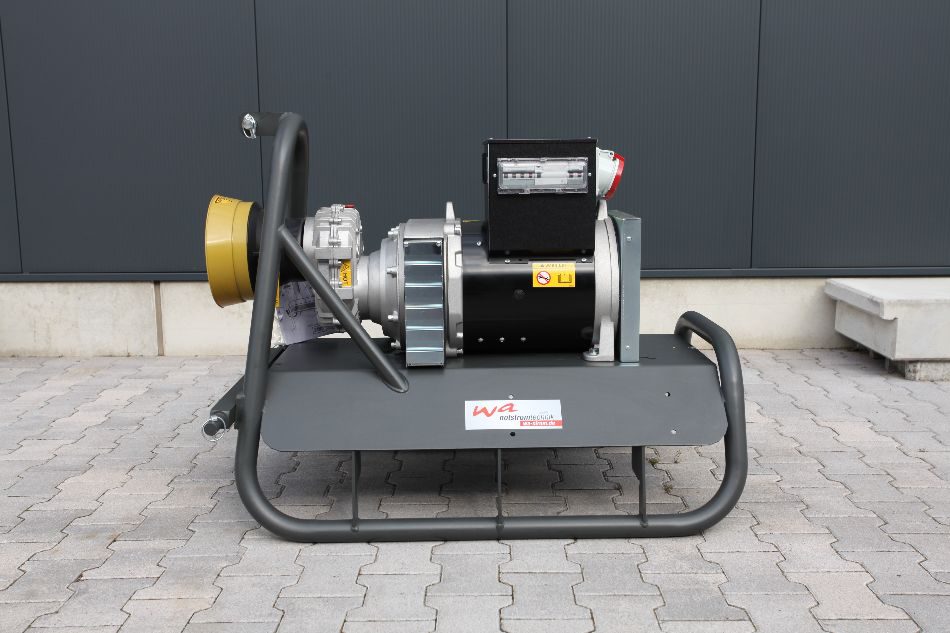

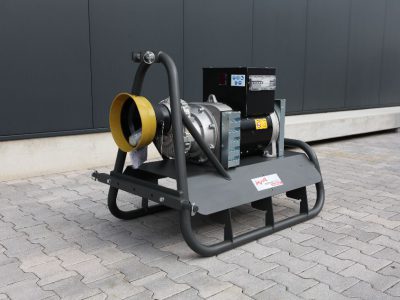

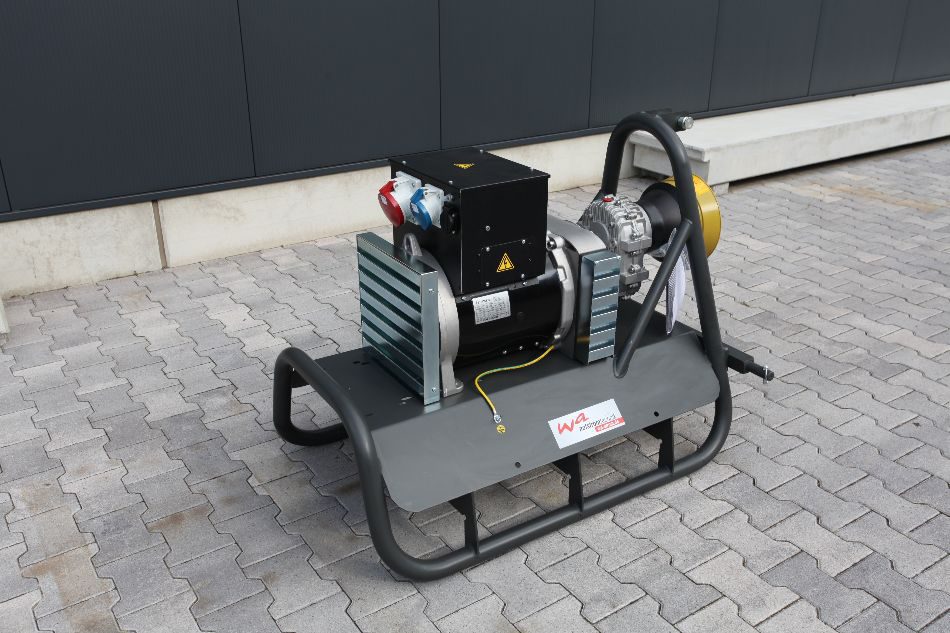

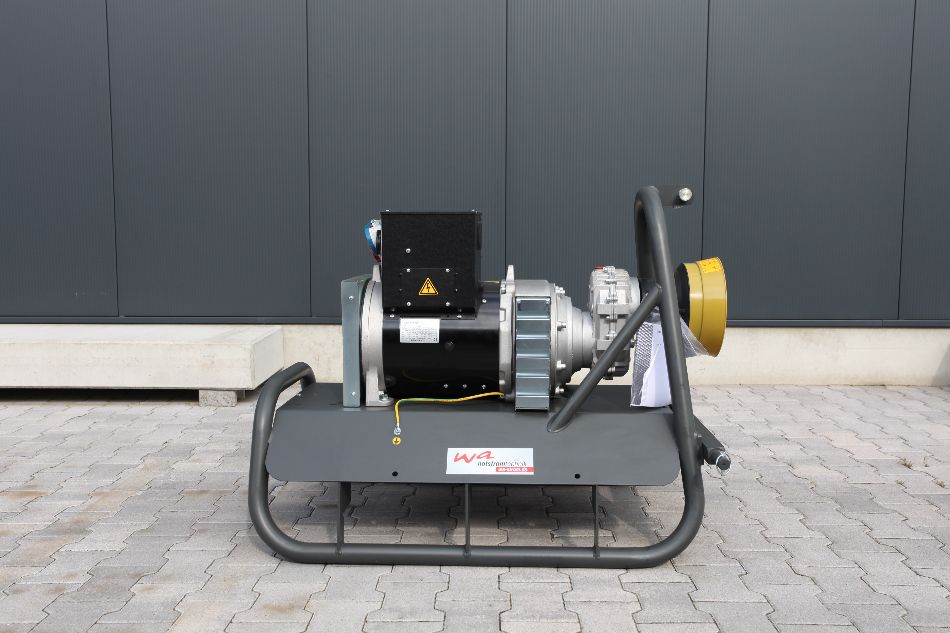

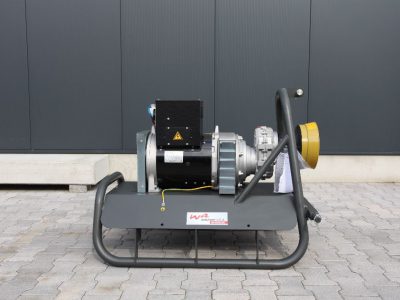

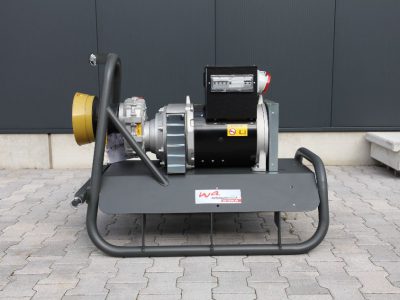

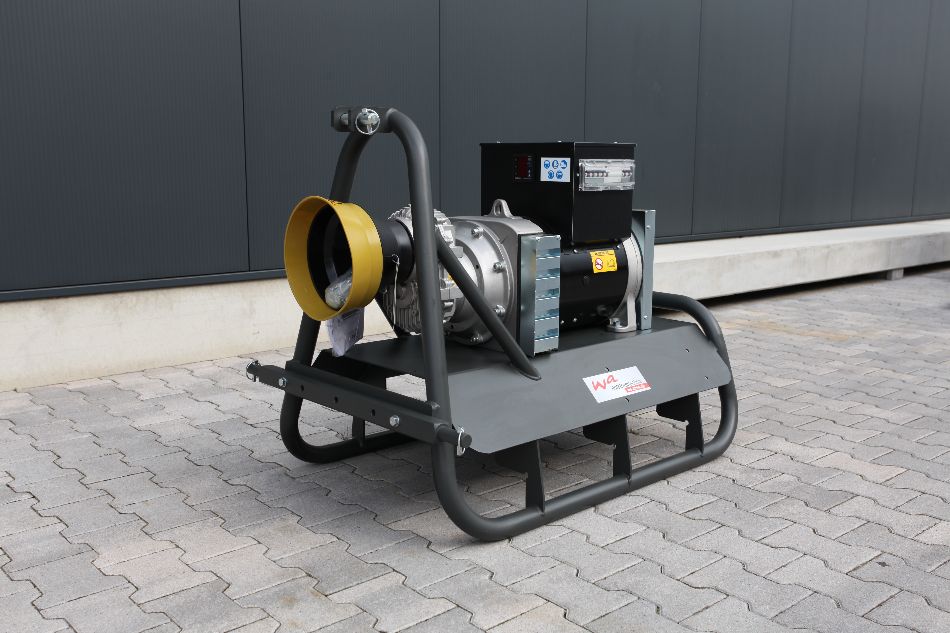

PTO generator 19 kVA and 22 kVA – Brushless with electronic voltage regulator AVR – synchronous
Our PTO power generators are the perfect solution for farmers looking for an inexpensive yet effective way of providing themselves with electricity even during a power outage.
| PTO generator | WA-ZB 19/4 | WA-ZB 22/4 |
| EAN | 0619915364079 | 0619915364086 |
| Power generators 3-phase | ||
| Continuous power / kVA | 19,8 | 22,5 |
| Efficiency / % | 85,8 | 85,7 |
| Voltage / Volt | 400/230 | 400/230 |
| Frequency / Hz | 50 | 50 |
| Power generators 1-phase | ||
| Continuous power / kVA | 7,9 | 9,0 |
| Voltage / Volt | 230 | 230 |
| Frequency / Hz | 50 | 50 |
| Gear for 540er PTO power generators |
||
| Tractor power / mind. KW | 44 | 50 |
| Tractor power / min. PS | 60 | 60 |
| Number of revolutions PTO power generator / r.p.m | 430 | 430 |
| Number of revolutions generator / r.p.m | 1.500 | 1.500 |
| Required PTO power generator / NM | 570 | 711 |
| Dimensions base frame |
||
| Length / mm | 1.135 | 1.135 |
| Width / mm | 800 | 800 |
| Height / mm | 915 | 915 |
| Weight / kg | 192 | 208 |

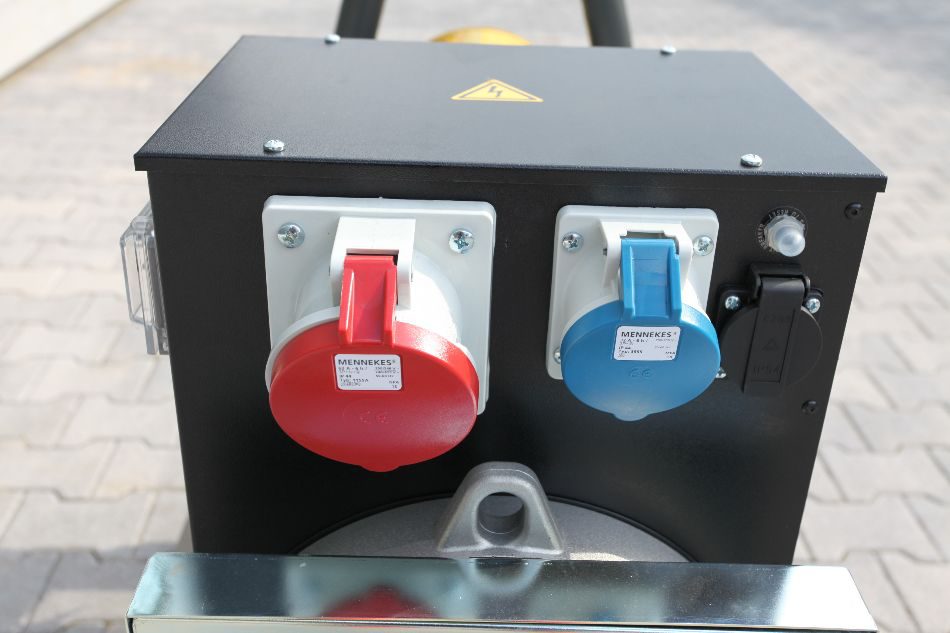

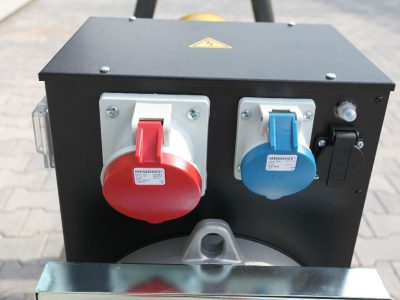

| Sockets / Mennekes |
||
| 230 Volt CEE IP67 / 32 Amp. | yes | yes |
| 400 Volt CEE IP67 /32 Amp. | yes | -/- |
| 400 Volt CEE IP67 / 63 Amp. | -/- | yes |
| 400 Volt CEE IP67 / 125 Amp. | -/- | -/- |
| Standard equipment / 2 years guarantee |
||
| Operating hours counter / digital | yes | yes |

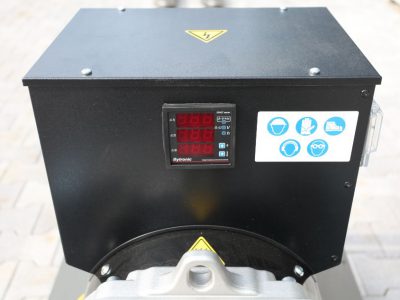

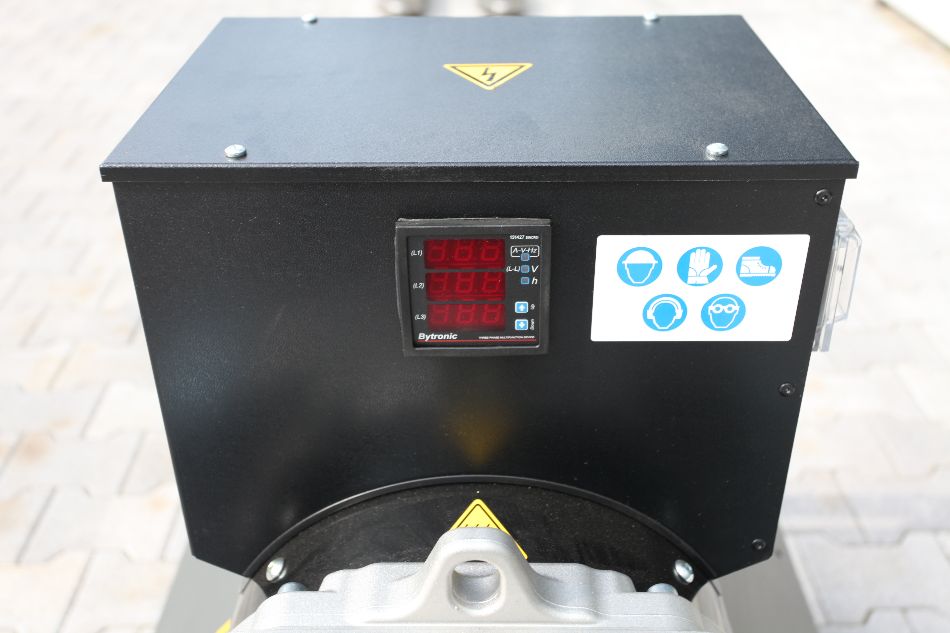

| Voltage display / digital | yes | yes |
| Amperemeter / digital | yes | yes |
| Generator switch / 4-pole | yes | yes |
| Short circuit current / 3,0 x inenn | yes | yes |
| Voltage accuracy / +/- 0,5 % | yes | yes |
| Insulation class / H | yes | yes |
| Protection / IP 44 | yes | yes |
| Three point suspension | yes | yes |
| Transmission oil filling / factory | yes | yes |
| Instruction manual / german | yes | yes |
| Propshaft splash | yes | yes |
| Voltage regulation / AVR 3-phase | yes | yes |
| Operational / at delivery | yes | yes |
| CE / (2006/95EG) | yes | yes |
| Overthrow secure base frame | yes | yes |

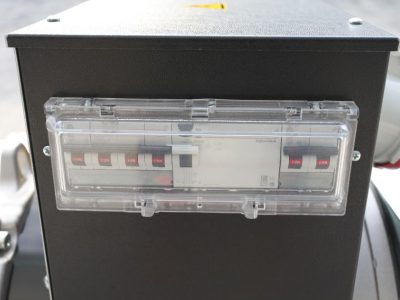

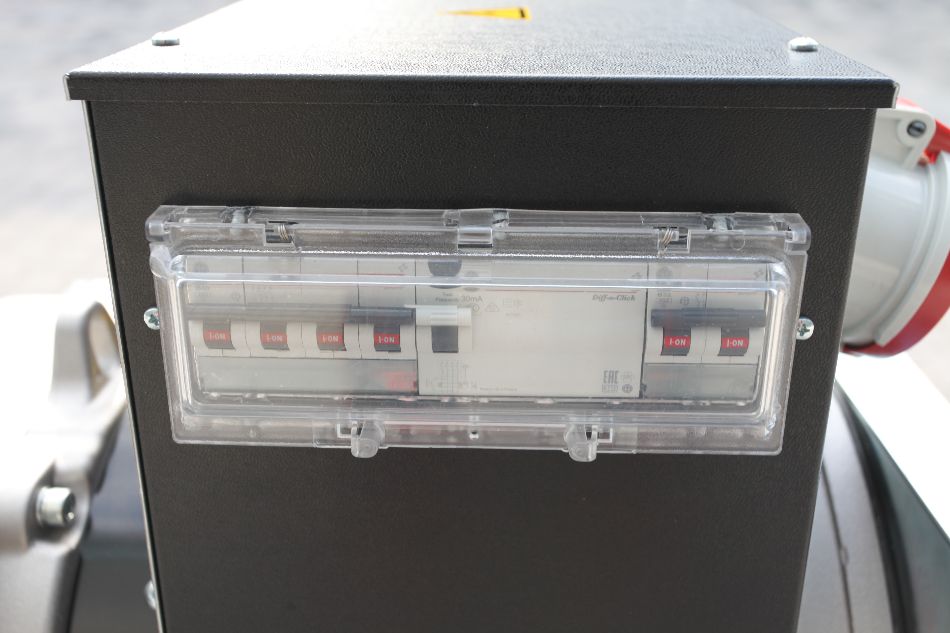

| Overload protection | yes | yes |
| Plant test run | yes | yes |
| Price € / net plus VAT |
€ 3.700 | € 3.936 |
| Options only in conjunction with the POT power generator / Price € net plus VAT |
||
| Cross earthe electrode / with 5 m electric wire | € 56 | € 56 |
| Switch power generator / building installation | € -/- | € 320 |
| Voltage and Hz monitoring / built-in | € -/- |
€ -/- |
| ISO-Sentinel space / house operation |
on demand | on demand |
