PTO power generator 58 kVA

Our WA-PTO power generators – Brushless with electronic voltage regulator AVR – synchronous

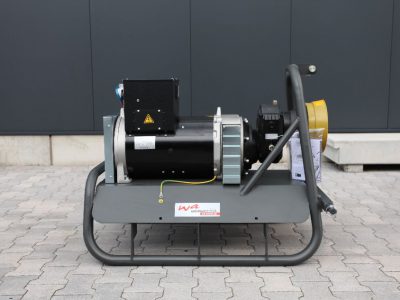

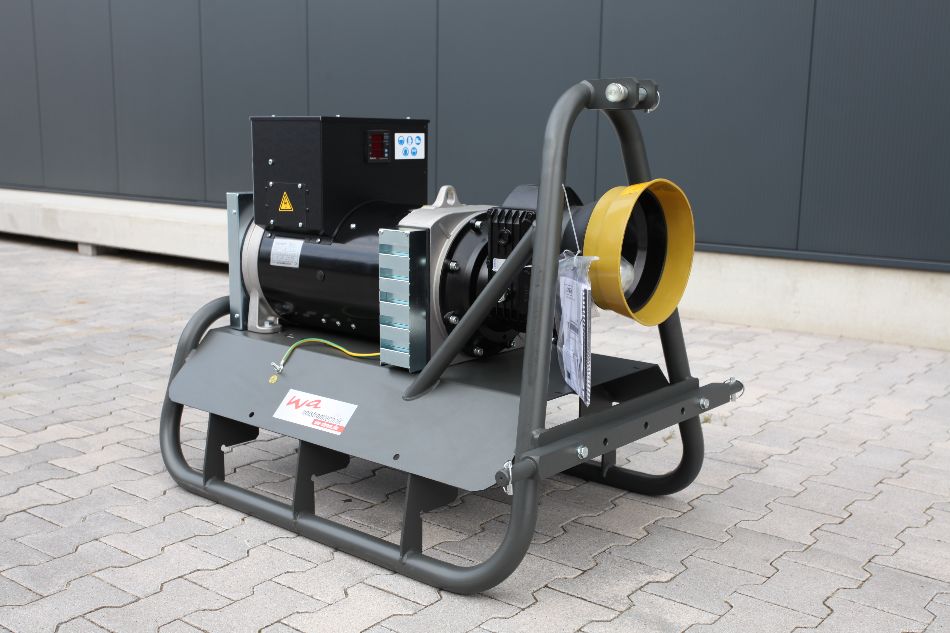

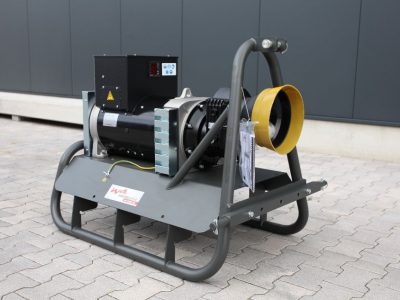

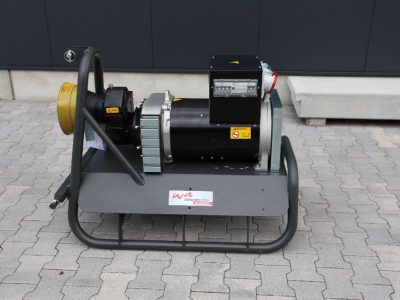

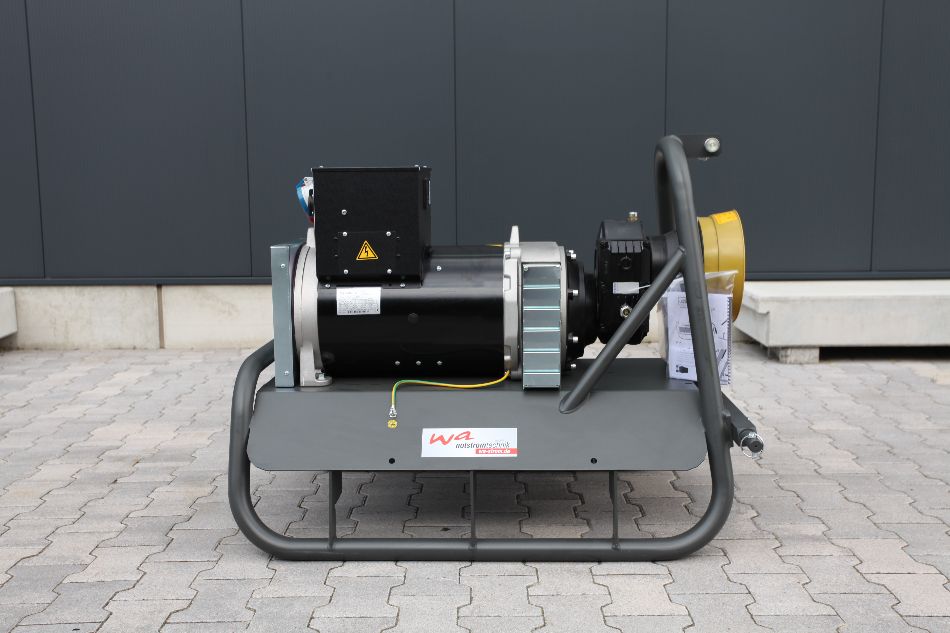

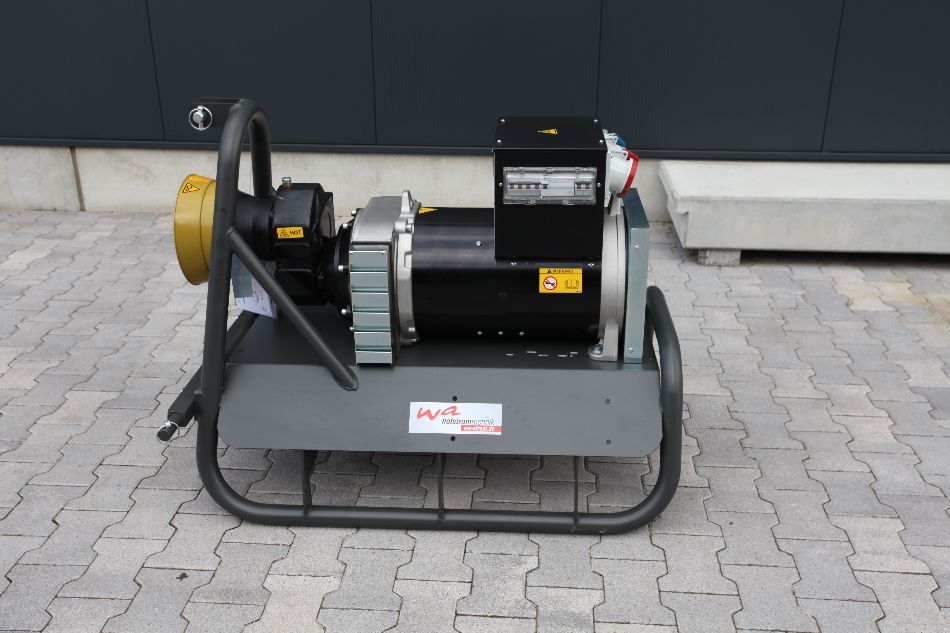

PTO power generatorWA-ZB 58/4
Power generator 3-phase
Continuous power / kVA 58
Efficiency / % 90,4
Voltage / Volt 400/230
Frequency / Hz50
Power generator 1-phase
Continuous power / kVA 23,4
Voltage / Volt 230
Frequency / Hz 50
Gear for 540er PTO power generator

Tractor power / mind. KW 132
Tractor power / min. PS 180
Number of revolutions PTO power generator / r.p.m400
Number of revolutions generator / r.p.m 1.500
Required PTO power generator / NM1.897
Dimensions base frame
Length / mm 1.204
Width / mm 800
Height / mm 923
Weight / kg339

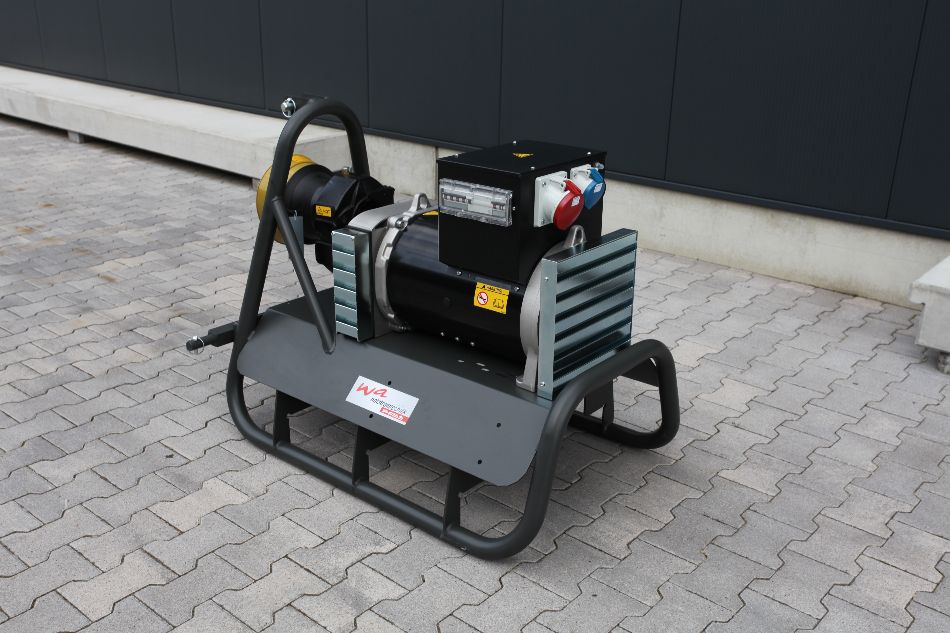

Sockets / Mennekes

230 Volt CEE IP67 / 32 Amp. yes
400 Volt CEE IP67 /32 Amp. -/-
400 Volt CEE IP67 / 63 Amp.  -/-
400 Volt CEE IP67 / 125 Amp. yes
Standard equipment / 2 years guarantee
Operating hours counter / digital yes
Voltage display / digital yes
Amperemeter / digital yes
Rate Monitor / digital yes

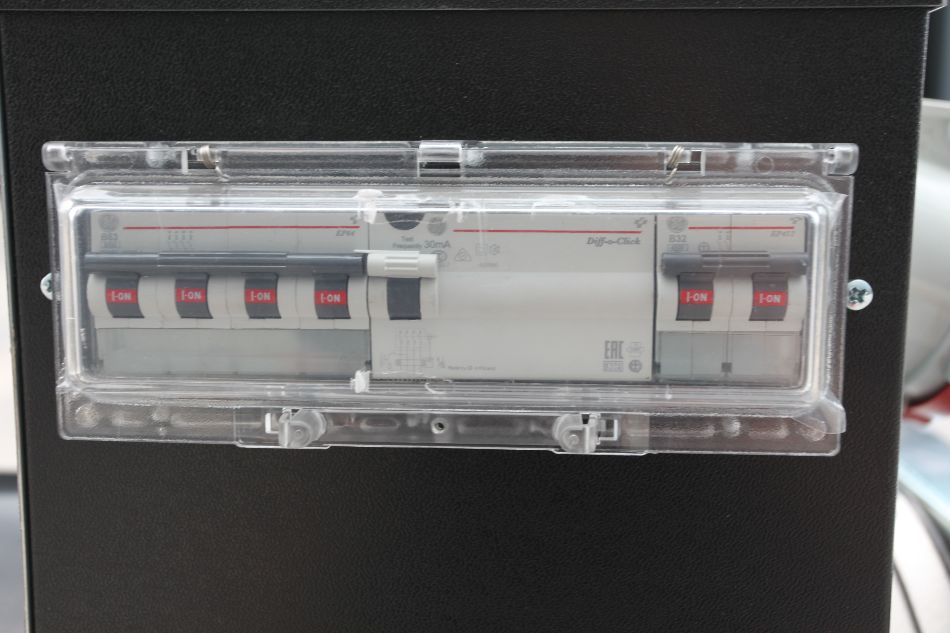

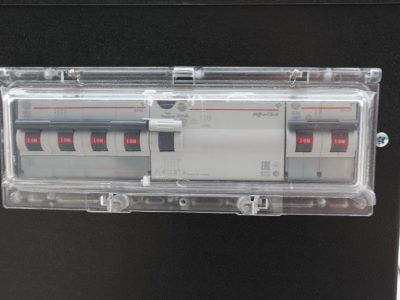

GFCI / ID = 0,03 A yes
Generator switch / 4-pole yes
Short circuit current/ 3,5 x innen yes
Voltage accuracy / +/- 1% yes
Insulation class / H yes
Protection / IP 44 yes
Three point suspension yes
Transmission oil filling / factory yes
Instruction manual / german yes

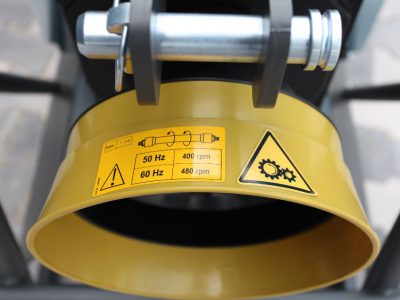

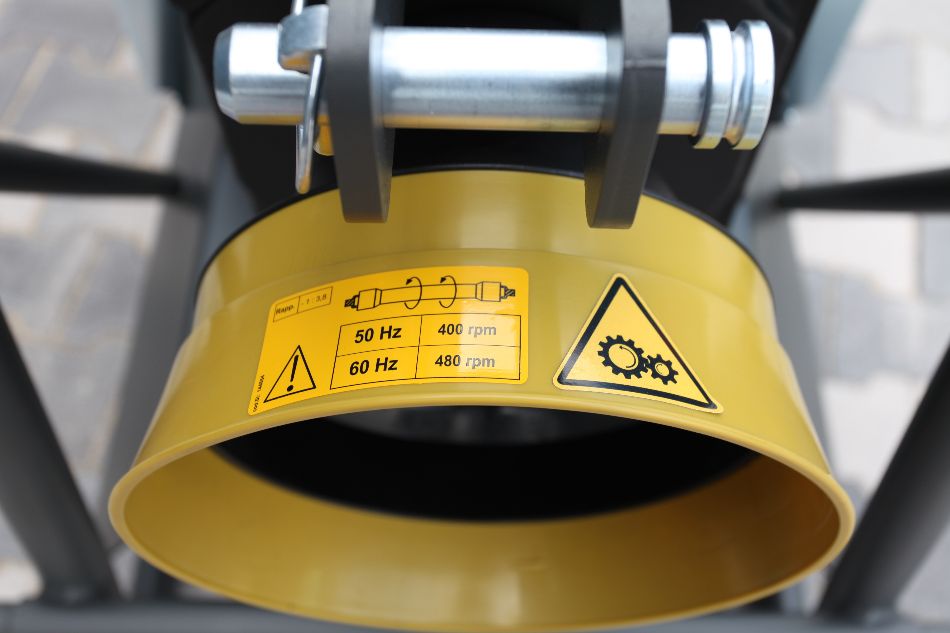

Propshaft splash yes
Voltage regulation / AVR 3-phase yes
Operational / at delivery yes
CE / 2006/95/EGyes
Overthrow secure base frameyes
Overload protection yes
Plant test run yes
Price € / net plus VAT € 4.050
Options only in conjunction with the POT power generator / Price € net plus VAT
Cross earthe electrode / with 5 m electric wire € 40
Switch power generator / building installation € 234
Voltage and Hz monitoring / built-in € 700
ISO-Sentinel space / house operation on demand
