PTO generator 32 kVA

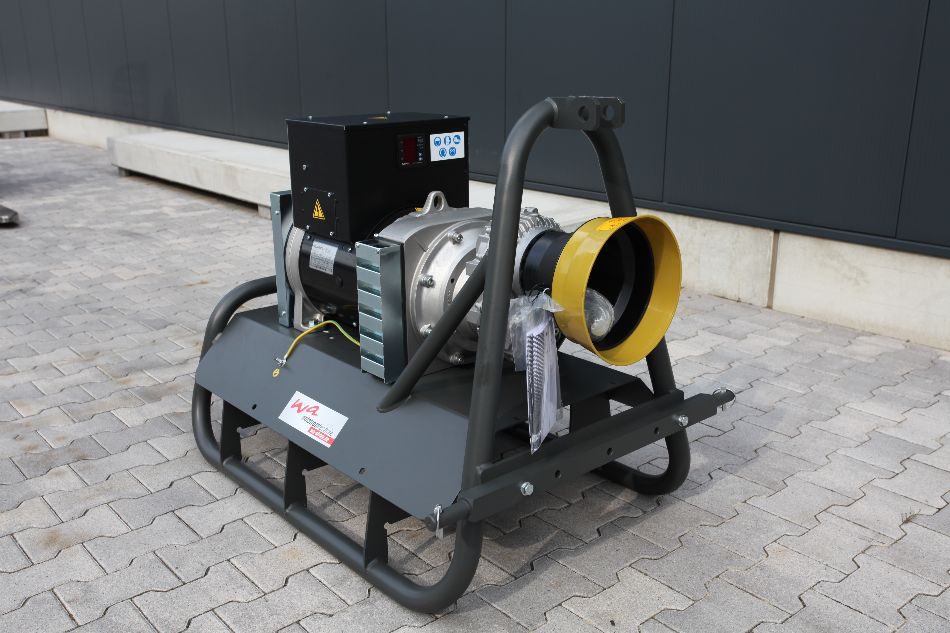

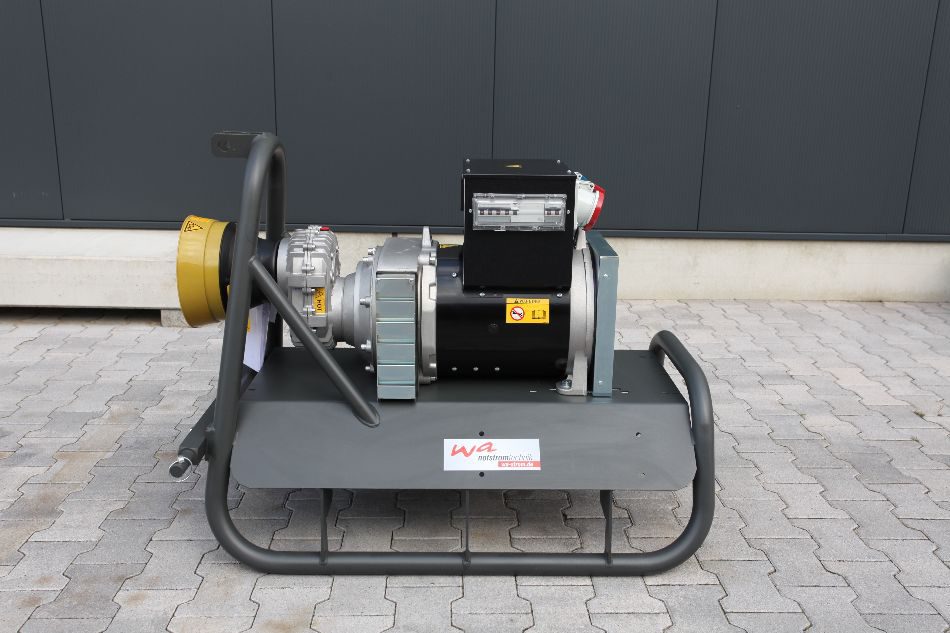

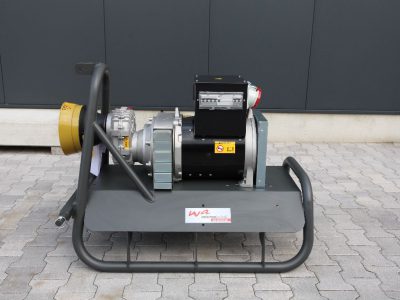

PTO generator 32 kVA – Brushless with electronic voltage regulator AVR – synchronous

Our PTO power generators are the perfect solution for farmers looking for an inexpensive yet effective way of providing themselves with electricity even during a power outage.

PTO generator WA-ZB 27/4 WA-ZB 32/4
EAN 0619915364093 0619915364109
Power Generator 3-phase
Continuous power / kVA 27,0 32,4
Efficiency / % 88,6 88,8
Voltage / Volt 400/230 400/230
Frequency / Hz 50 50
Power generator 1-phase
Continuous power / kVA 10,8 13,0
Voltage / Volt 230 230
Frequency / Hz 50 50
Gear for 540er PTO power generator

Tractor power / mind. KW 59 69
Tractor power / min. PS 81 95
Number of revolutions PTO power generator / r.p.m 430 430
Number of revolutions generator / r.p.m 1.500 1.500
Required PTO power generator / NM 850 991
Dimensions base frame
Length / mm 1.135 1.135
Width / mm 800 800
 Height/ mm 915 915
Weight / kg 230 248

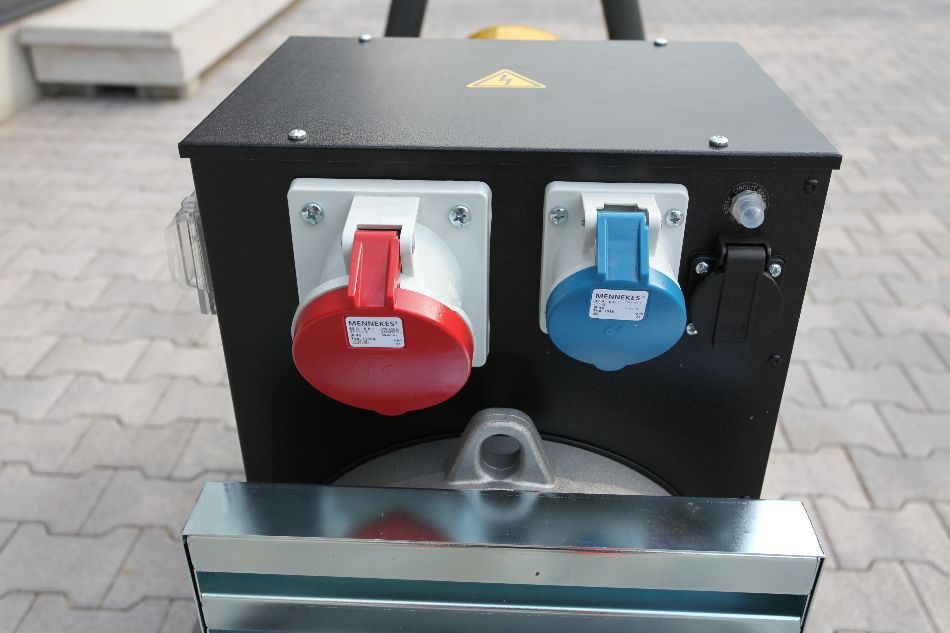

Sockets / Mennekes

230 Volt CEE IP67 / 32 Amp. yes yes
400 Volt CEE IP67 /32 Amp. -/- -/-
400 Volt CEE IP67 / 63 Amp. yes yes
400 Volt CEE IP67 / 125 Amp. -/- -/-
Standard equipment / 2 years guarantee

Operating hours counter / digital yes yes

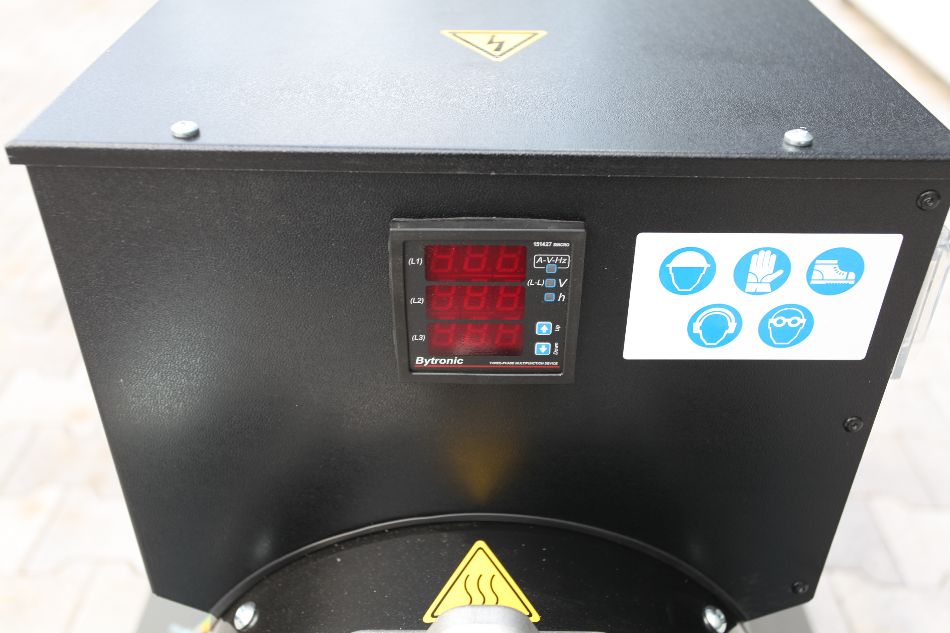

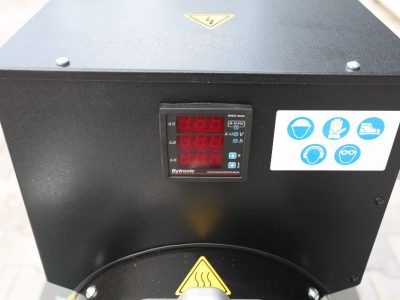

Voltage display / digital yes yes
Amperemeter / digital yes yes
Generator switch / 4-pole yes yes
Short circuit current / 3,0 x inenn yes yes
Voltage accuracy / +/- 0,5 % yes yes
Insulation class / H yes yes
Protection / IP 44 yes yes
Three point suspension yes yes
Transmission oil filling / factory yes yes
Instruction manual / german yes yes
Propshaft splash yes yes
Voltage regulation / AVR 3-phase yes yes
Instruction manual / at delivery yes yes
CE / (2006/95EG) yes yes
Overthrow secure base frame yes yes

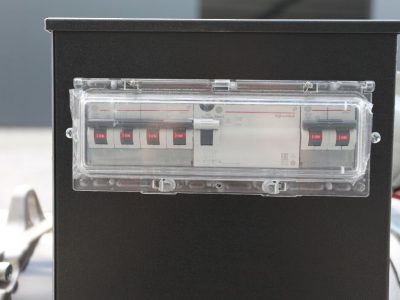

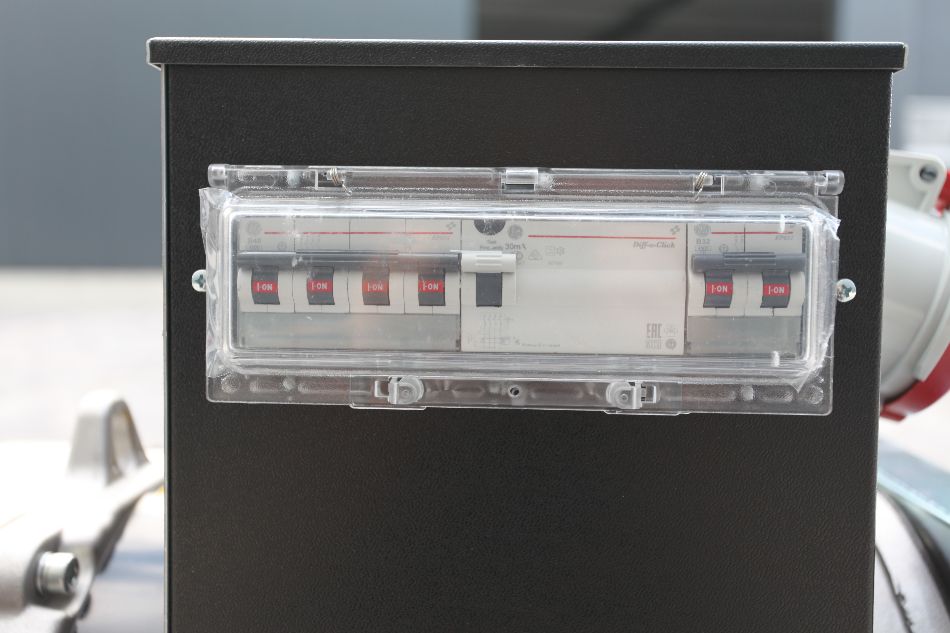

Overload protection yes yes
Plant test run yes yes
Price € / net plus VAT
 € 3.025 €  3.080
Options only in conjunction with the PTO power generator / Price € net plus VAT

Cross earth electrode / with 5 m electric wire € 40 € 40
Switch power generator / building installation € 240 € 240
Voltage  and Hz monitoring / built-in € 325 € 325
ISO-Sentinel space / house operation on demand on demand
