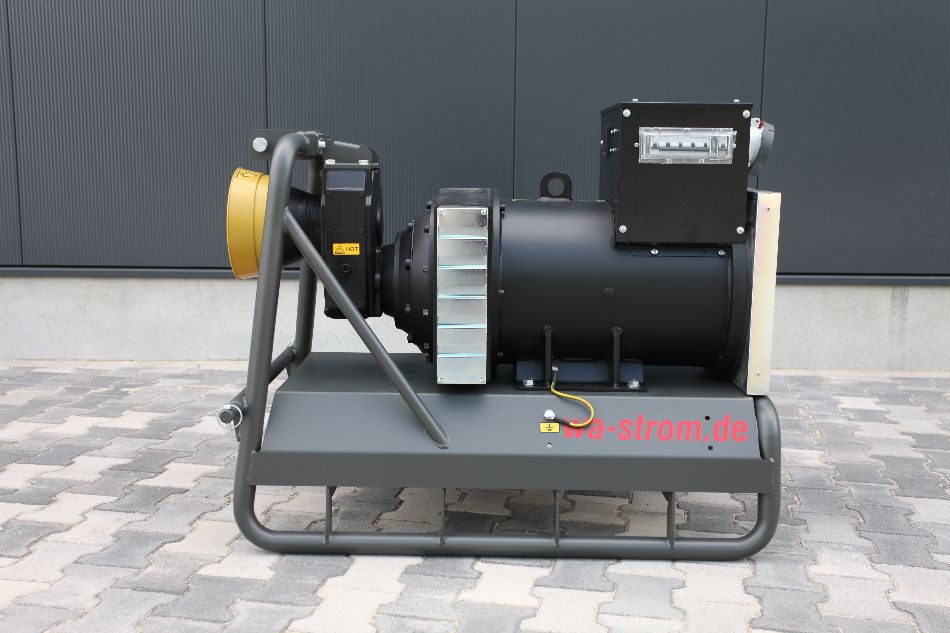

PTO generator 75 kVA

PTO generator 75 kVA – Brushless with electronic voltage regulator AVR – synchronous

Our PTO power generators are the perfect solution for farmers looking for an inexpensive yet effective way of providing themselves with electricity even during a power outage.

PTO generator
WA-ZB 75/4
EAN 0619915364147
Power generator 3-phase
Continuous power / kVA 75
Efficiency / %  91,1
Voltage / Volt  400/230
Frequency / Hz 50
Power generator 1-phase
Continuous power / kVA  28,8
Voltage / Volt 230
Frequency / Hz  50
Gear for 540er PTO power generator

Tractor power / mind. KW  161
Tractor power / min. PS  220
Number of revolutions PTO power generator / r.p.m 400
Number of revolutions generator / r.p.m 1.500
Required PTO power generator / NM  2.320
Dimensions base frame
Length / mm  1.204
Width / mm  800
Height / mm  923
Weight / kg  366
Sockets / Mennekes

230 Volt CEE IP67 / 32 Amp. yes
400 Volt CEE IP67 /32 Amp.   -/-
400 Volt CEE IP67 / 63 Amp.   -/-
400 Volt CEE IP67 / 125 Amp.  yes
Standard equipment / 2 years guarantee
Operating hours counter / digital  yes

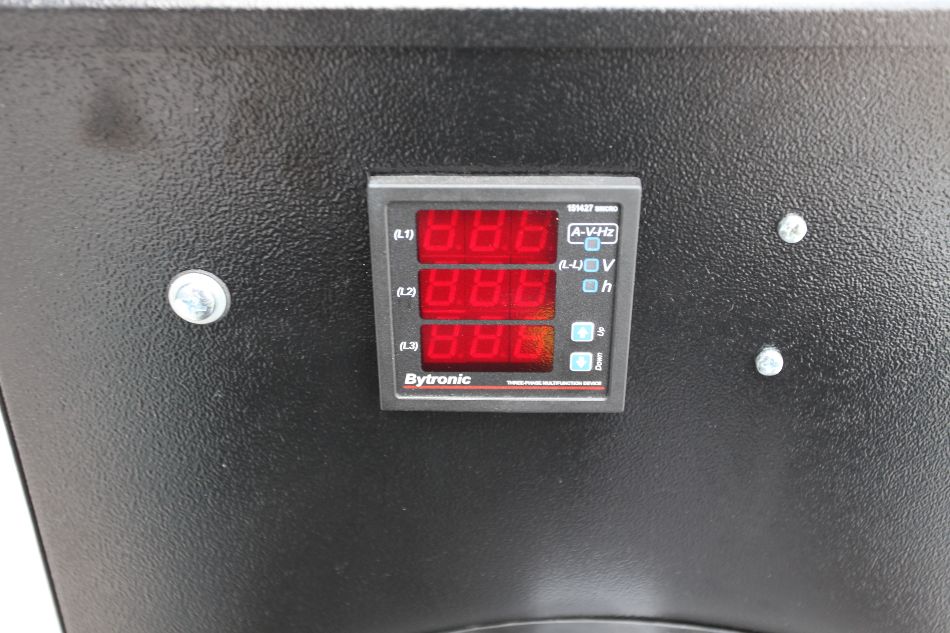

Voltage display / digital  yes
Amperemeter / digital  yes
Rate Monitor / digital  yes
GFCI / ID = 0,03 A  yes
Generator switch / 4-pole  yes
Short circuit current/ 3,5 x innen  yes
Voltage accuracy / +/- 1%   yes
Insulation class / H   yes
Protection / IP 44   yes
Three point suspension   yes
Transmission oil filling / factory   yes
Instruction manual / german   yes
Propshaft splash  yes
Voltage regulation / AVR 3-phase  yes
Operational / at delivery  yes
CE / 2006/95/EG yes
Overthrow secure base frame yes
Overload protection  yes
Plant test run  yes
Price € / net plus VAT  € 4.730
Options only in conjunction with the POT power generator / Price € net plus VAT
Cross earthe electrode / with 5 m electric wire € 40
Switch power generator / building installation  on demand
Voltage and Hz monitoring / built-in € 700
ISO-Sentinel space / house operation on demand
