Volvo Penta Generator series WA-V 85-700 kVA

High efficiency, maximum uptime and quick installation

With 100 years of industry experience and correspondingly high-quality products, the company Volvo Penta is one of the world’s most famous manufacturers of diesel engines. A Volvo Penta power generator is characterized by unrivaled load capacity and fast start-up capability. The highly efficient motors guarantee low operating costs due to low amounts of oil, high quality and reliability as well as easy installation. Maintenance intervals can last up to 1,000 hours.

Volvo Penta engines are extremely economical and flexible. They meet all G3 requirements according to ISO8528-5.



Our Volvo power generators:  1.500 r.p.m – 50 Hz – diesel – watercooled

Volvo Penta Generator Model
kVA 100 %
PRP*
Motortype
WA-V 85 85 TAD530GE
WA-V 100 100 TAD531GE
WA-V 130 130 TAD532GE
WA-V 150 150 TAD731GE
WA-V 180 180 TAD732GE
WA-V 200 200 TAD733GE
WA-V 250 250 TAD734GE
WA-V 300 300 TAD1341GE
WA-V 350 350 TAD1342GE
WA-V 380 380 TAD1343GE
WA-V 400 450 TAD1344GE
WA-V 450 450 TAD1345GE
WA-V 500 500 TAD1641GE
WA-V 600 595 TAD1642GE
WA-V 620 620 TWD1643GE
WA-V 640 640 TWD1643GE
WA-V 660 660 TWD1644GE
WA-V 700
700 TWD1645GE

 *Prime Power PRP. Maximum power for variable load, no time limit per year. The average 24 hours operation should not exceed 80% of that power. For control purposes and start-up of heavy machinery an overload of 10% is permissible for 1 hour within 12 hours. Operating mode according to ISO 8528. The maintenace is to be considered.

Volvo Penta Generator
Power
KWm.
Consumption
100 % Last PRP
WA-V 85 74 KW 19,00 L/h
WA-V 100 88 KW 23,00 L/h
WA-V 130 112 KW 29,00 L/h
WA-V 150 133 KW 34,00 L/h
WA-V 180 160 KW 41,00 L/h
WA-V 200 177 KW 46,00 L/h
WA-V 250 217 KW 52,00 L/h
WA-V 300 275 KW 68,00 L/h
WA-V 350 303 KW 68,00 L/h
WA-V 380 325 KW 82,00 L/h
WA-V 400 354 KW 83,00 L/h
WA-V 450 388 KW 92,00 L/h
WA-V 500 430 KW 102,00 L/h
WA-V 600 503 KW 117,00 L/h
WA-V 620 536 KW 120,00 L/h
WA-V 640 536 KW 124,00 L/h
WA-V 660 555 KW 130,00 L/h
WA-V 700 640 KW 139,00 L/h



Volvo Penta Generator
Datasheet
WA-V 85 PDF
WA-V 100 PDF
WA-V 130 PDF
WA-V 150 PDF
WA-V 180 PDF
WA-V 200 PDF
WA-V 250 PDF
WA-V 300 PDF
WA-V 350 PDF
WA-V 380 PDF
WA-V 400 PDF
WA-V 450 PDF
WA-V 500 PDF
WA-  600 PDF
WA-V 620 PDF
WA-V 640 PDF
WA-V 660 PDF
WA-V 700
PDF

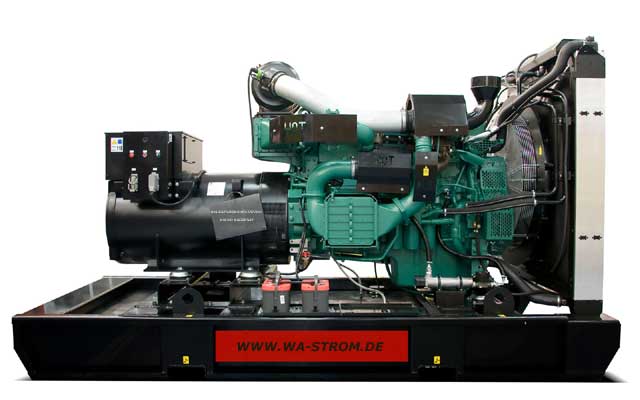

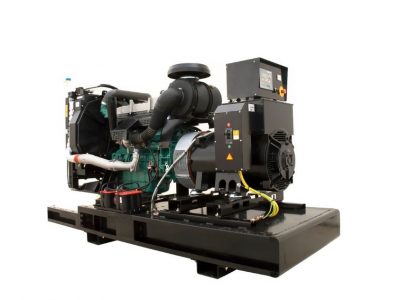

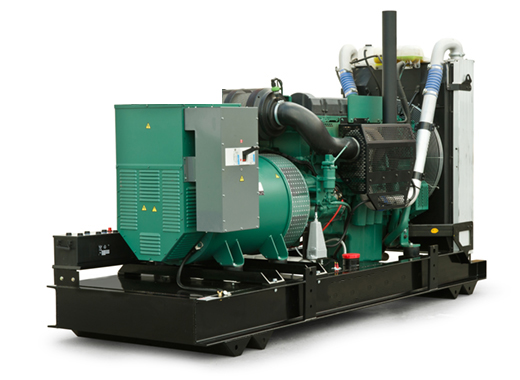

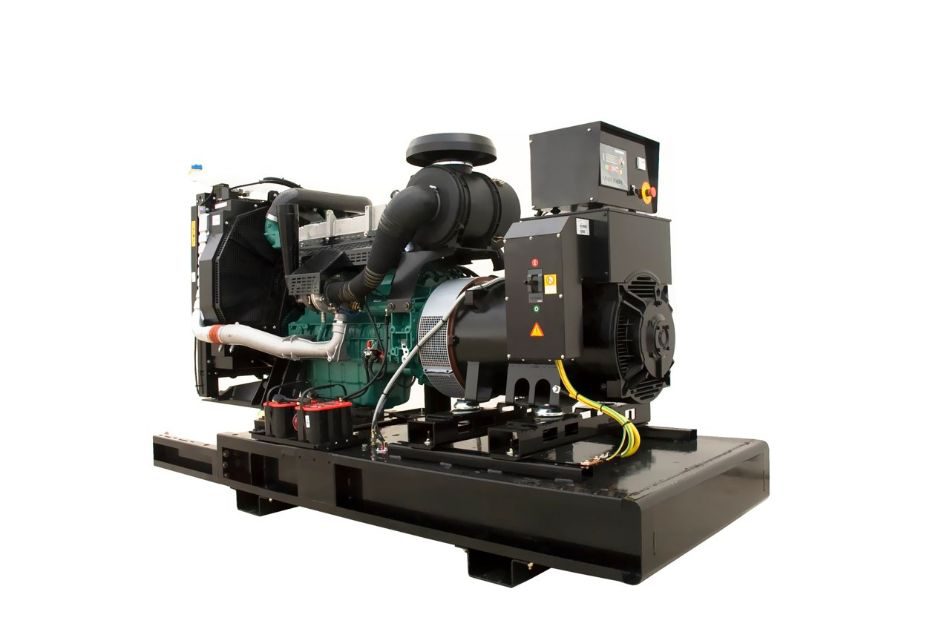

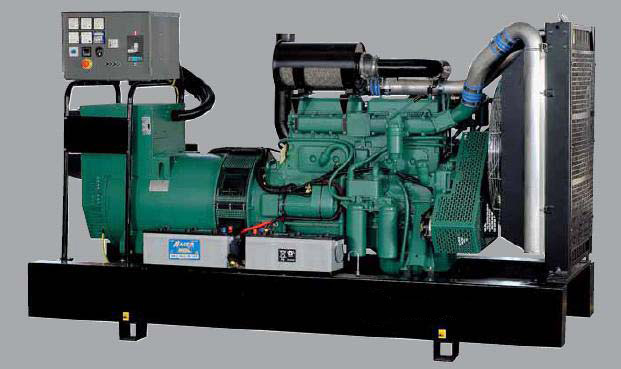

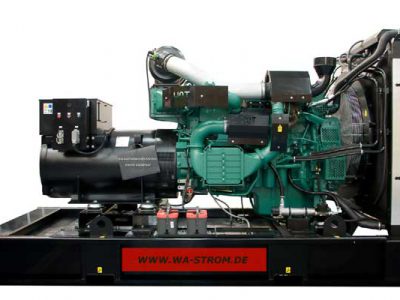

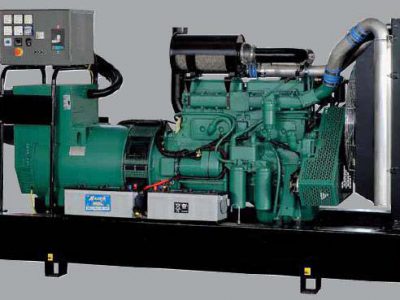

“G” on open frame

stromerzeuger-iveco-gStationary version (open type) frame “G”



Volvo Penta Generator Fueltank
L
Length
mm
WA-V 85 “G” 195 2.050
WA-V 100 “G” 210 2.050
WA-V 130 “G” 210 2.250
WA-V 150 “G” 220 2.500
WA-V 180 “G” 230 2.500
WA-V 200 “G” 230 2.500
WA-V 250 “G” 450 3.000
WA-V 300 “G” 450 3.000
WA-V 350 “G” 450 3.000
WA-V 380 “G” 450 3.000
WA-V 400 “G” 450 3.000
WA-V 450 “G” 550 3.000
WA-V 500 “G” 550 3.490
WA-V 600 “G” 550 3.490
WA-V 620 “G” 1.000 3.500
WA-V 640 “G” 1.000 3.500
WA-V 660 “G” 1.030 3.500
WA-V 700 “G” 1.030 3.620



Volvo Penta Generator
Width
mm
Height
mm
WA-V 85 “G” 930 1.713
WA-V 100 “G” 930 1.827
WA-V 130 “G” 930 1.732
WA-V 150 “G” 1.035 1.683
WA-V 180 “G” 1.035 1.845
WA-V 200 “G” 1.035 1.845
WA-V 250 “G” 1.200 1.834
WA-V 300 “G” 1.200 2.160
WA-V 350 “G” 1.200 2.163
WA-V 380 “G” 1.200 2.141
WA-V 400 “G” 1.200 2.141
WA-V 450 “G” 1.200 2.100
WA-V 500 “G” 1.300 2.097
WA-V 600 “G” 1.300 2.097
WA-V 620 “G” 1.330 2.506
WA-V 640 “G” 1.330 2.506
WA-V 660 “G” 1.330 2.816
WA-V 700 “G” 1.330 2.816



Volvo Penta Generator Weight
KG
WA-V 85 “G” 1.240
WA-V 100 “G” 1.300
WA-V 130 “G” 1.480
WA-V 150 “G” 1.580
WA-V 180 “G” 1.850
WA-V 200 “G” 1.820
WA-V 250 “G” 2.050
WA-V 300 “G” 2.800
WA-V 350 “G” 2.850
WA-V 380 “G” 2.940
WA-V 400 “G” 2.940
WA-V 450 “G” 3.180
WA-V 500 “G” 3.580
WA-V 600 “G” 3.950
WA-V 620 “G” 4.300
WA-V 640 “G” 4.350
WA-V 660 “G” 4.500
WA-V 700 “G” 4.770

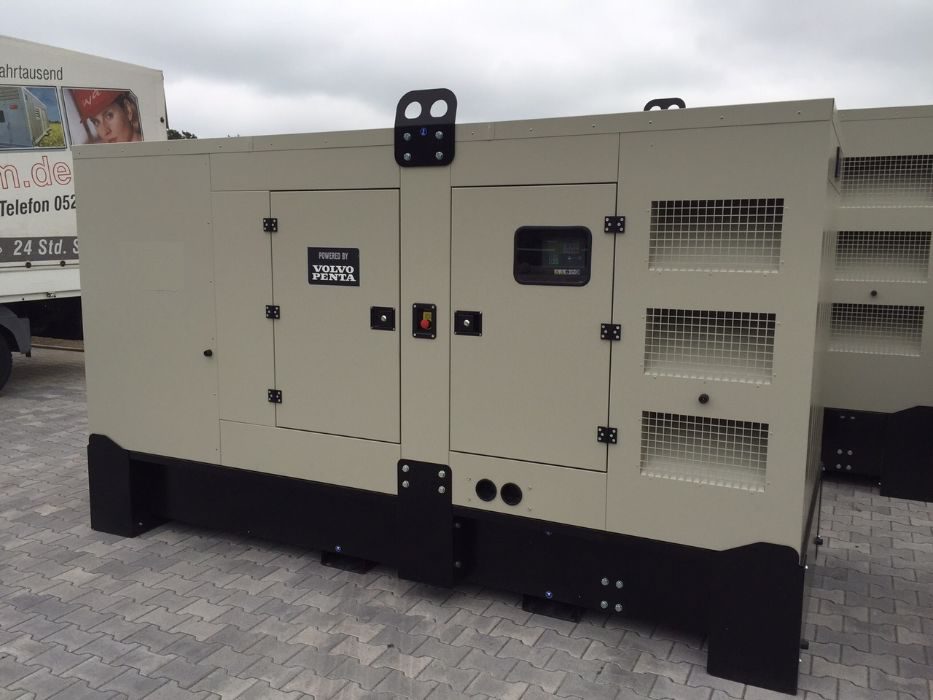

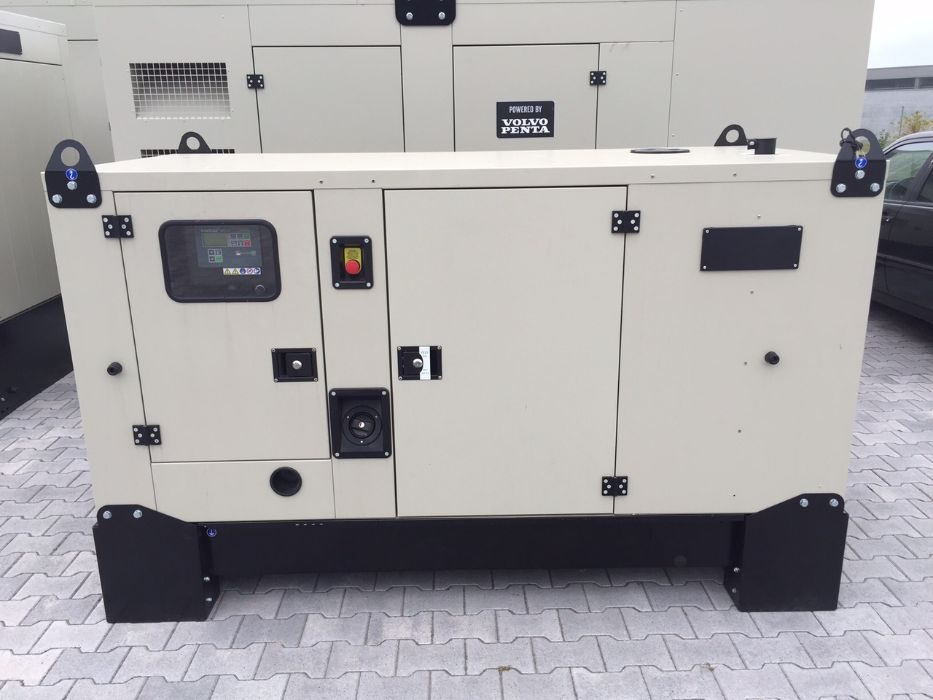

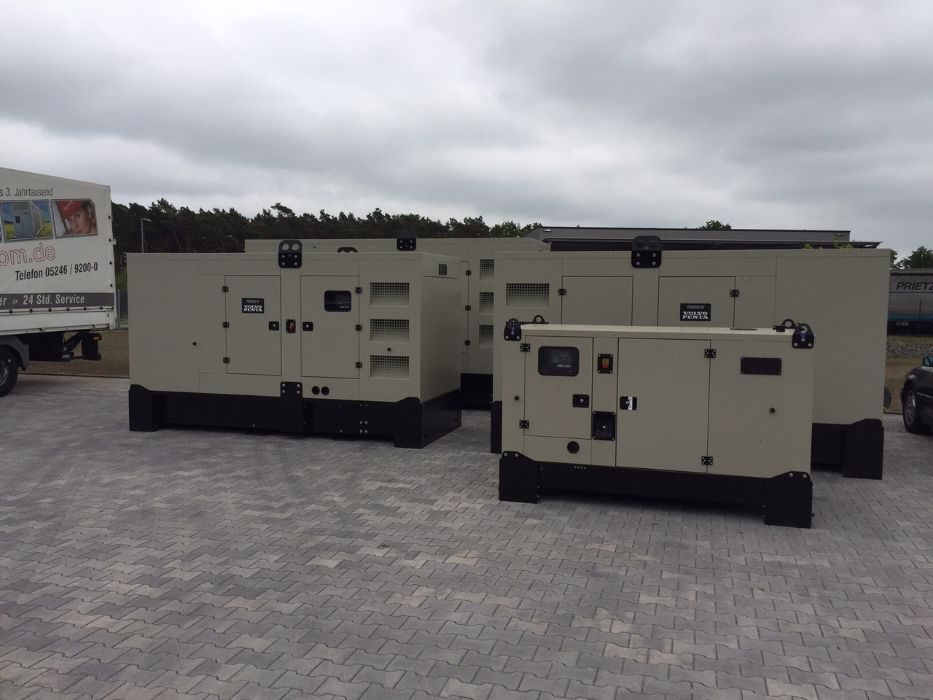

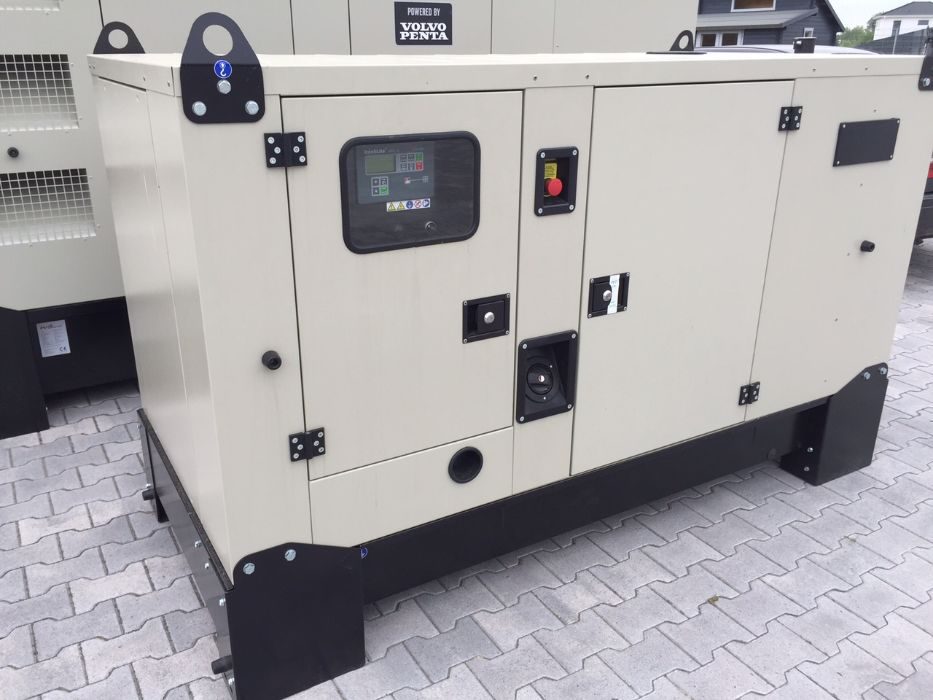

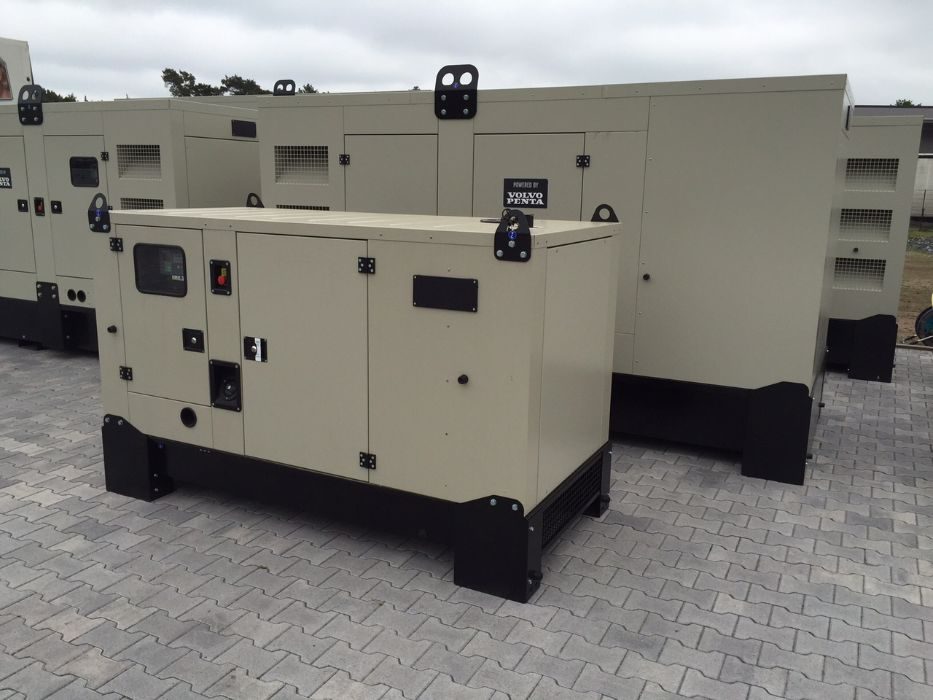

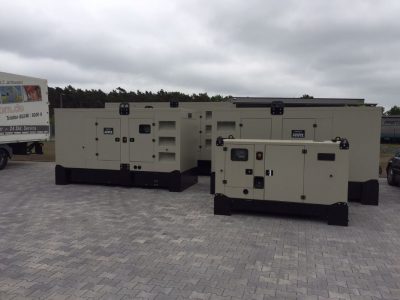

“S” Silenced

stromerzeuger-iveco-sSilenced version (with insulation) “S”







Volvo Penta Gen Set Silent Fueltank
L
db(A)*
 7 Meter
WA-V 85 “S” 220 72
WA-V 100 “S” 220 72
WA-V 130 “S” 220 72
WA-V 150 “S” 360 72
WA-V 180 “S” 360 70
WA-V 200 “S” 360 70
WA-V 250 “S” 360 72
WA-V 300 “S” 530 72
WA-V 350 “S” 530 72
WA-V 380 “S” 530 72
WA-V 400 “S” 530 72
WA-V 450 “S” 530 72
WA-V 500 “S” 1.000 75
WA-V 600 “S” 1.000 76
WA-V 620 “S” 1.000 77
WA-V 640 “S” 1.000 77
WA-V 660 “S” 1.000 77
WA-V 700 “S” 1.000 77

 * db(A) measured at 7 meters as the average of all-round measurement at 7 measuring points

Volvo Penta Gen Set Silent
Length
mm
Width
mm
WA-V 85 “S” 2.950 1.110
WA-V 100 “S” 2.950 1.110
WA-V 130 “S” 2.950 1.110
WA-V 150 “S” 3.600 1.350
WA-V 180 “S” 3.600 1.350
WA-V 200 “S” 3.600 1.350
WA-V 250 “S” 3.600 1.350
WA-V 300 “S” 4.200 1.600
WA-V 350 “S” 4.200 1.600
WA-V 380 “S” 4.200 1.600
WA-V 400 “S” 4.200 1.600
WA-V 450 “S” 4.200 1.600
WA-V 500 “S” 4.860 2.060
WA-V 600 “S” 4.860 2.060
WA-V 620 “S” 4.860 2.060
WA-V 640 “S” 4.860 2.060
WA-V 660 “S” 4.860 2.060
WA-V 700 “S” 4.860 2.060



Volvo Penta Gen Set Silent
Height
mm
Weight
KG
WA-V 85 “S” 1.760 1.680
WA-V 100 “S” 1.760 1.840
WA-V 130 “S” 1.760 1.980
WA-V 150 “S” 2.040 2.180
WA-V 180 “S” 2.040 2.850
WA-V 200 “S” 2.040 2.850
WA-V 250 “S” 2.040 3.018
WA-V 300 “S” 2.245 4.200
WA-V 350 “S” 2.245 4.320
WA-V 380 “S” 2.245 4.660
WA-V 400 “S” 2.145 4.660
WA-V 450 “S” 2.145 4.660
WA-V 500 “S” 2.630 6.260
WA-V 600 “S” 2.630 6.260
WA-V 620 “S” 2.630 6.380
WA-V 640 “S” 2.630 6.380
WA-V 660 “S” 2.630 6.800
WA-V 700 “S” 2.585 7.100

All data in basic model or series delivery



Basic equipment Volvo Penta generator

Power generator: The complete power generator is mounted on a steel base frame. On the steel base frame are specially designed devices, for lifting with a crane or Forklift. The diesel engine and the alternator are connected to a SAE-flange, that even a longer period of operation no possibility of an adjustment exists. The daily fuel tank is integrated in the steel base frame. The starter batteries of 12 or 24 volts are fixed on the steel base frame. Preheating-system 230 Volt DC.

Engine: Volvo industrial diesel 4-stroke direct injection, watercooled 1.500 rpm (50 Hz). Low oil and fuel consumption with long maintenance intervals make a very economic engine application.

Alternator: Mecc Alte alternator, brushless self-exciting, self-regulating with electronic voltage regulator (AVR) according to VDE 0530, 400/230 volts, 4-pole, insulation class H.

Control Panel: Manual start-stop-system with engine shutdown during monitoring, when low oil pressure (LOP), High temperate (HWT) and overspeed. Alternator switch, 3-pole with thermal and magnetic protection. Frequency meter, hours counter, voltmeter, ampere meter, optical and acoustic alarm. Electronic engine speed governor, AMF automatic control panel with ATS, for parallel operation with the mains supply or peak looping operation.

Tank: 24h fuel tank, automatic fuel-fill-system.

Trailer: 1 or 2 axle trailer.

Options: For all power generator is a wide range of accessories available.

Technical changes: We keep ahead.
