YANMAR power generators series WA-Y 8,3-41 kVA

Yanmar diesel has been one of the largest diesel engine manufacturers in the world. The company was founded in 1912 as “Yamaoka Hatsudoki Kosakusho”. Since 1921, the brand name is used Yanmar. 1933 which claims to be “first practical small diesel engine” developed and in 1942 the first work “Nagahama” opend. Since 1947, small diesel engines, primarily for use in construction equipment, generators, boats, manufactured and sold. 1952 gets the company´s current name “Yanmar Diesel Engine Co. Ltd”. 1996 new factory in Biwa was opend, are manufactured in the now nearly 400.000 industrial diesel engines per year.


Our WA-Yanmar power generators with 1.500 R.P.M. – 50 Hz – diesel

Power generator
kVA 100 %
PRP*
Motortype
WA-Y 8
8,33 TNV 76
WA-Y 13
12,53 TNV 88
WA-Y 17
17,14 TNV 88
WA-Y 20
204 TNV 84
WA-Y 35
344 TNV 98
WA-Y 4541    4 TNV 98 T

*Prime Power PRP. Maximum power for variable load, no time limit per year. The average 24 hours operation should not exceed 80% of that power. For control purposes an thrust harder Maschinery is an overload of 10% for 1 hour within 12 hours permitted. Mode according to ISO 8528. The maintenace is to be considered.

Power generator
Power
KWm.
Consumption
100 % Last PRP
WA-Y 8
8,2 KW2,62 L/h
WA-Y 13
12,2 KW3,19 L/h
WA-Y 17
16,4 KW4,78 L/h
WA-Y 20
19,1 KW5,64 L/h
WA-Y 35
30,7 KW8,92 L/h
WA-Y 4537,7 KW10,25 L/h



Power generator

Datasheet
Model “G”

Datasheet
Model “S” Silent

WA-Y 8
PDFPDF
WA-Y 13
PDFPDF
WA-Y 17
PDF PDF
WA-Y 20
PDF PDF
WA-Y 35
PDF PDF
WA-Y 45PDF PDF

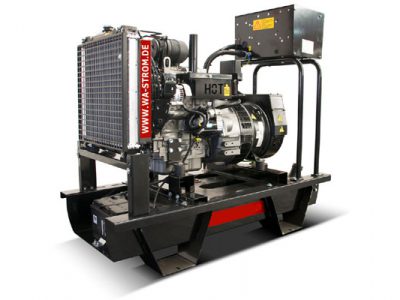

Open frame Generator Set Model “G”

stromerzeuger-iveco-g









Power generator
Fueltank
L
Length
mm
WA-Y 8 “G”601.450
WA-Y 13 “G”601.450
WA-Y 17 “G”601.450
WA-Y 20 “G”761.700
WA-Y 35 “G”
1201.850
WA-Y 45 “G”1201.850



Power generator
Width
mm
Height
mm
WA-Y 8 “G”6201.283
WA-Y 13 “G”6201.286
WA-Y 17 “G”6201.268
WA-Y 20 “G”6201.286
WA-Y 35 “G”
7801.500
WA-Y 45 “G”7801.500



Power generator
Weight
KG
WA-Y 8 “G”307
WA-Y 13 “G”362
WA-Y 17 “G”362
WA-Y 20 “G”416
WA-Y 35 “G”
545
WA-Y 45 “G”626

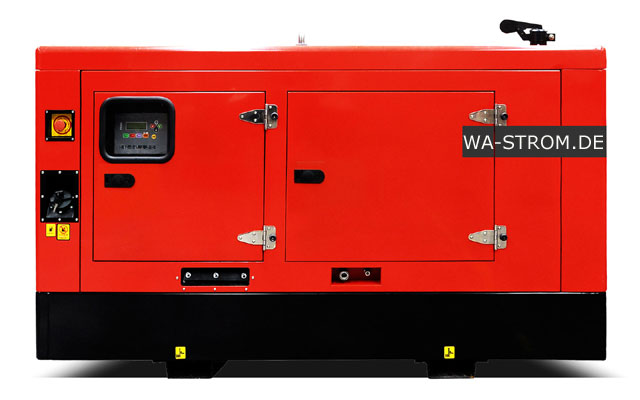

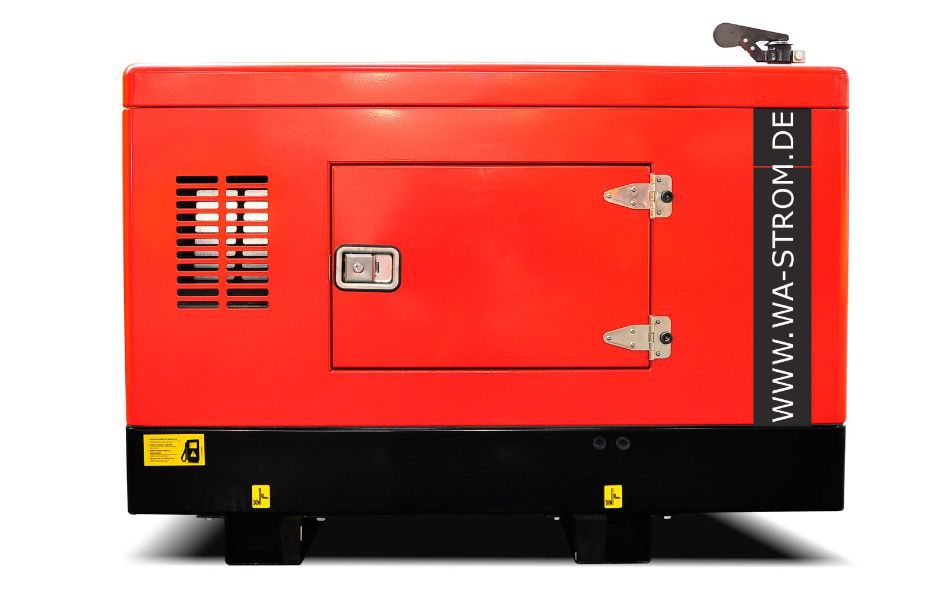

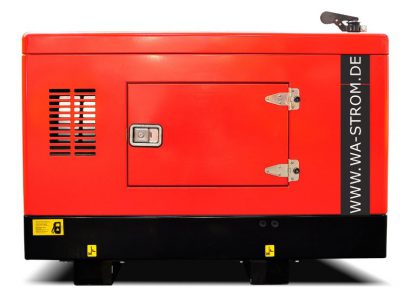

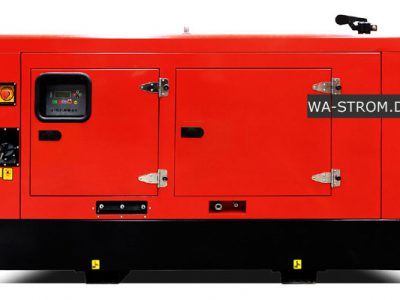

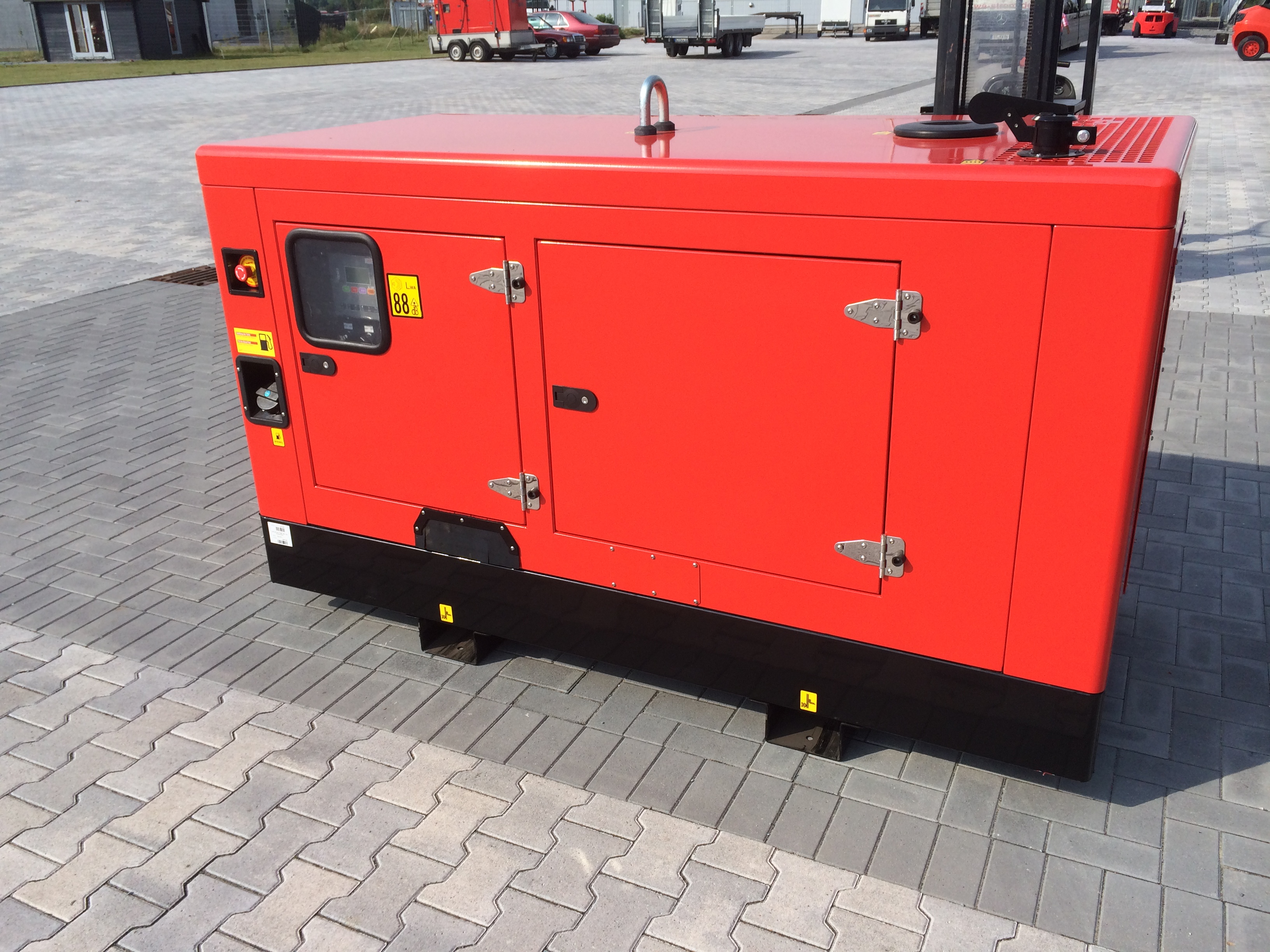

Supersilent Generating Set Model “S”

stromerzeuger-iveco-s





Power generator
Fueltank
L
db(A)*
 7 Meter
WA-Y 8 “S”2264
WA-Y 13 “S”2257
WA-Y 17 “S”10060
WA-Y 20 “S”10057
WA-Y 35 “S”10063
WA-Y 45 “S”10062

* db(A) measured at 7 meters as the average of all-round measurement at 7 measuring points

Power generator
Length
mm
Width
mm
WA-Y 8 “S”1.475750
WA-Y 13 “S”1.475750
WA-Y 17 “S”2.100975
WA-Y 20 “S”2.100975
WA-Y 35 “S”2.100975
WA-Y 45 “S”2.100975



Power generator
Height
mm
Weight
KG
WA-Y 8 “S”1.100632
WA-Y 13 “S”1.100691
WA-Y 17 “S”1.349870
WA-Y 20 “S”1.349885
WA-Y 35 “S”1.349950
WA-Y 45 “S”1.349960
 All data in basic model or series delivery


Basic equipment Yanmar power generator

Power generator: The complete gen set is mounted on a steel base frame. On the steel base frame are specially designed devices, for lifting with a crane or Forklift. The diesel engine and the alternator are connected to a SAE-flange, that even a longer period of operation no possibility of an adjustment exists. The daily fuel tank is integrated in the steel base frame. The starter batteries of 12 or 24 volts are fixed on the steel base frame. Preheating-system 230 Volt DC.

Engine: Yanmar industrial diesel 4-stroke direct injection, liquid cooled 1.500 rpm (50 Hz). Low oil and fuel Consumption with long maintenance intervals make a very economic engine application.

Alternator: Mecc Alte alternator, brushless self-exciting, self-regulating with electronic voltage regulator (AVR) according to VDE 0530, 400/230 volts, 4-pole, insulation class H.

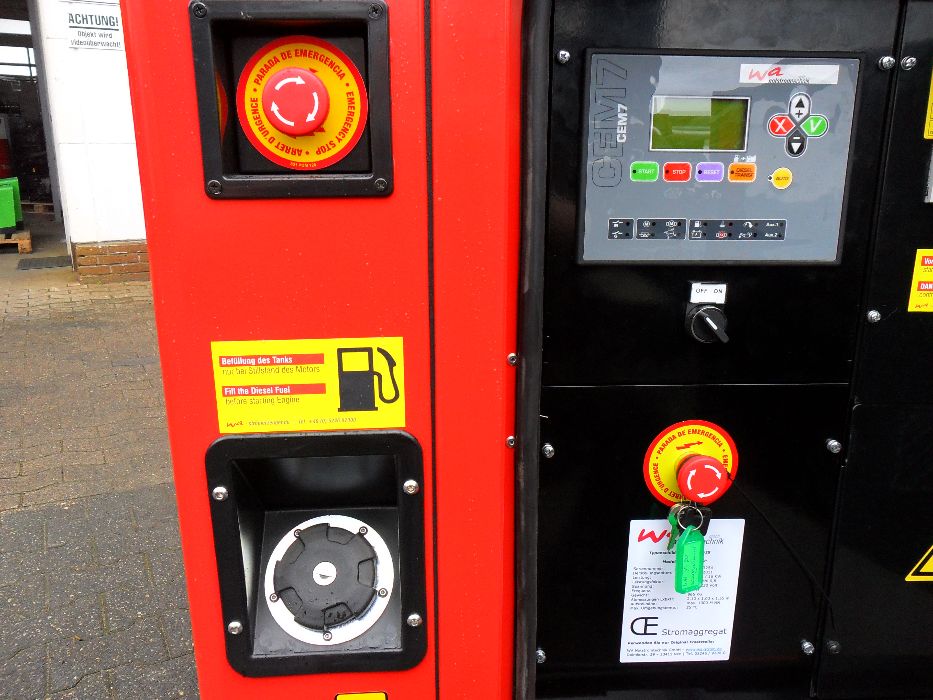

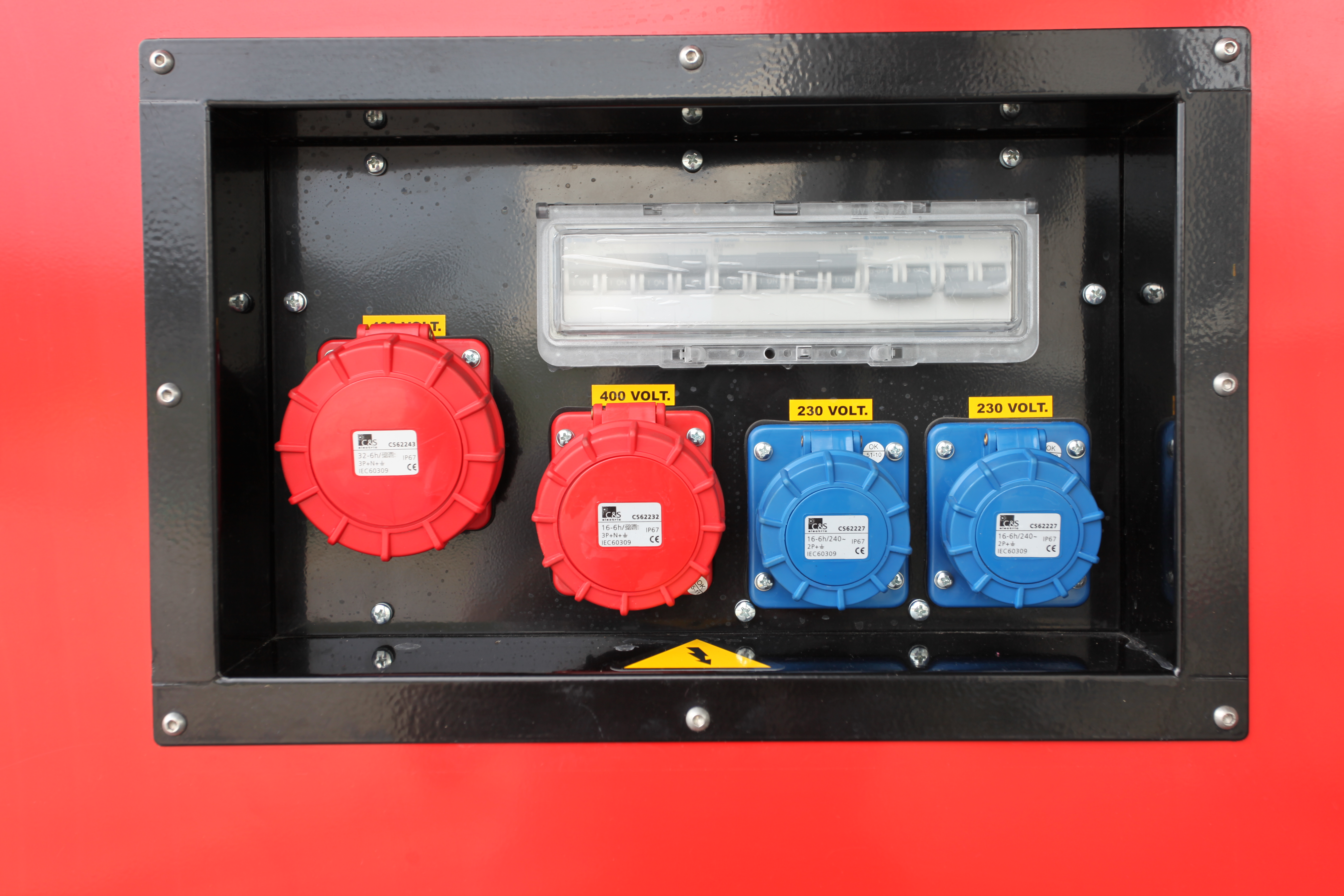

Control Panel: Manual start-stop-system with engine shutdown during monitoring, when low oil pressure (LOP), High temperate (HWT) and overspeed. Alternator switch, 3-pole with thermal and magnetic protection. Frequency meter, hours counter, voltmeter, ampere meter, optical and acoustic alarm. Electronic engine speed governor, AMF automatic control panel with ATS, for parallel operation with the mains supply or peak looping operation.

Options: For all power generator is a wide range of accessories available.

Technical changes: We keep ahead.
