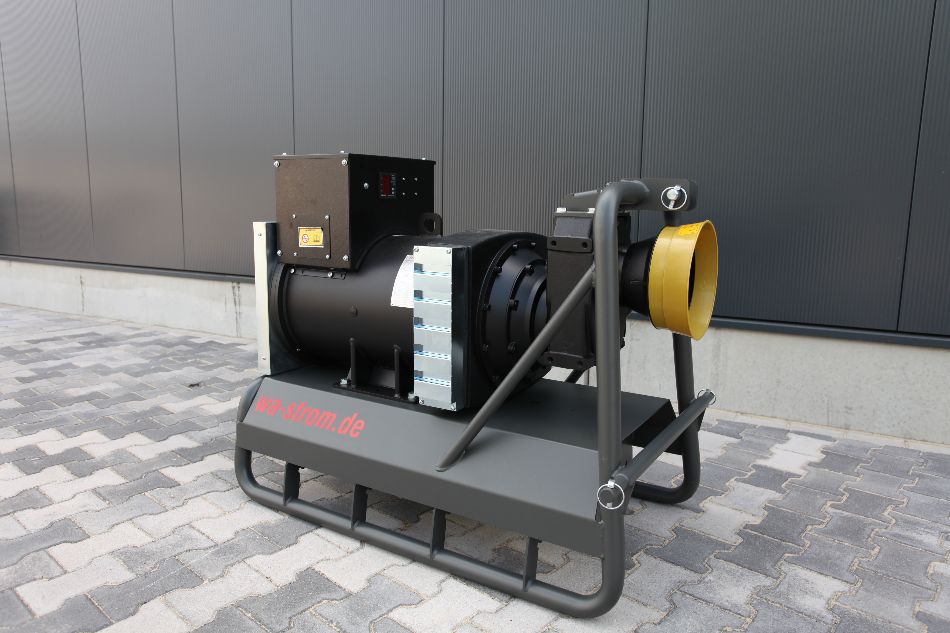

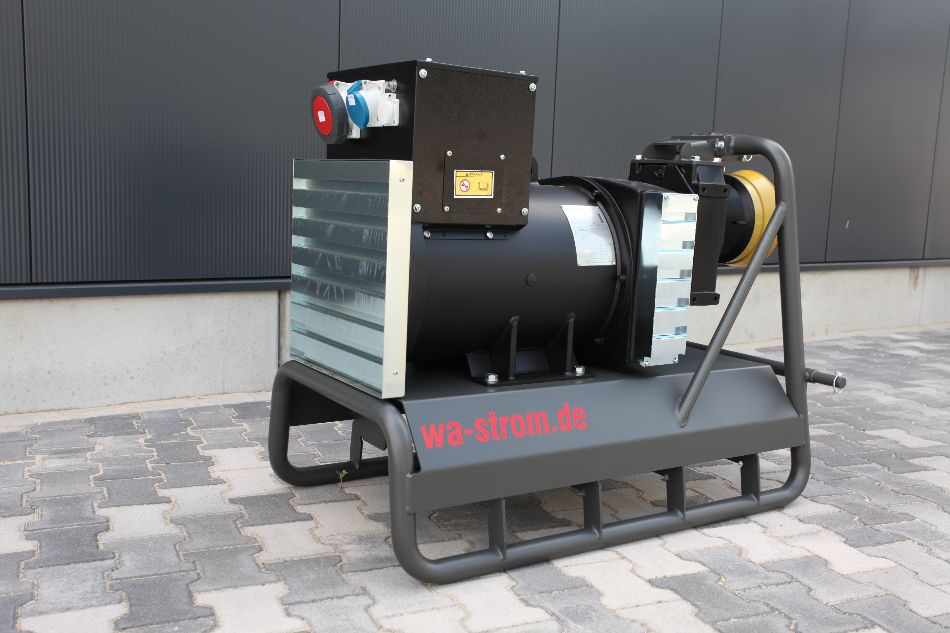

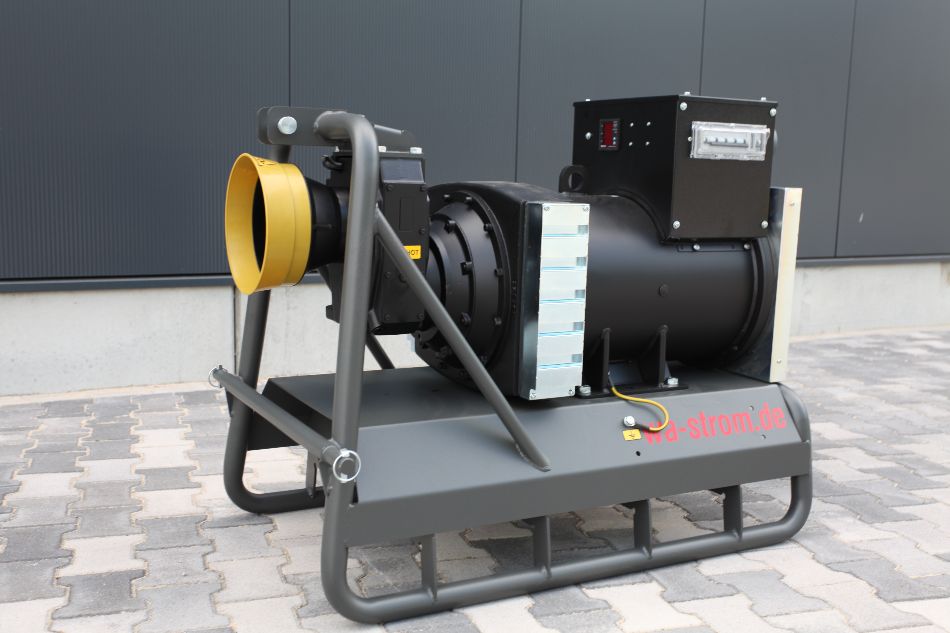

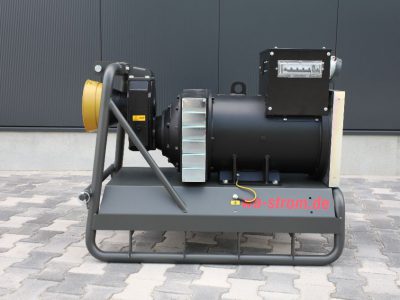

PTO power generator 85 kVA

Our WA-PTO power generators – Brushless with electronic voltage regulator AVR – synchronous

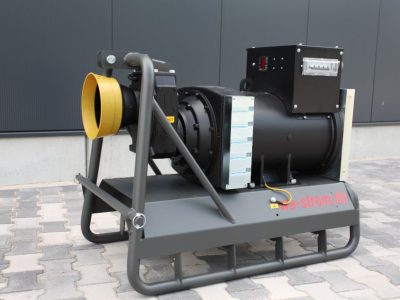

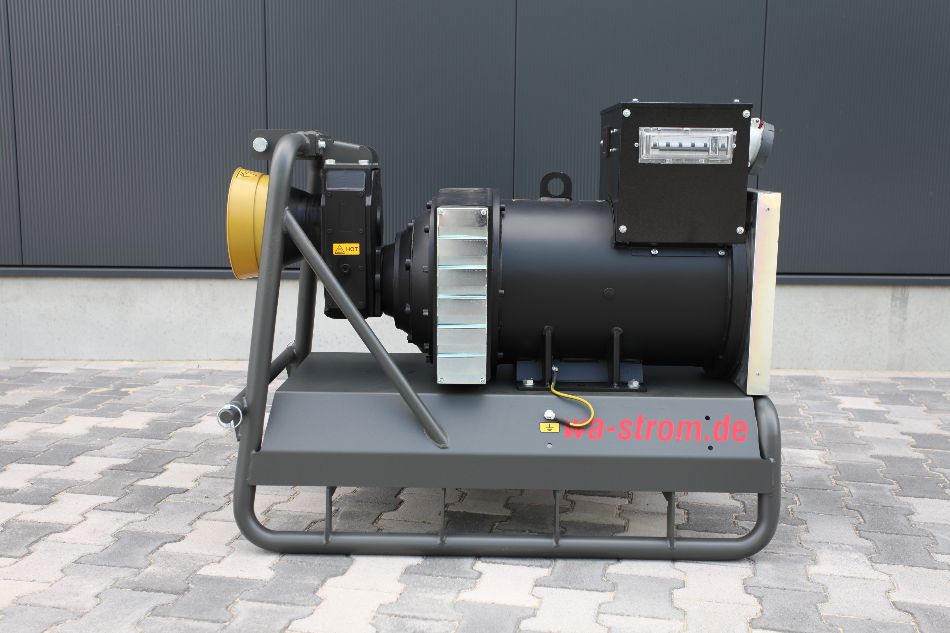

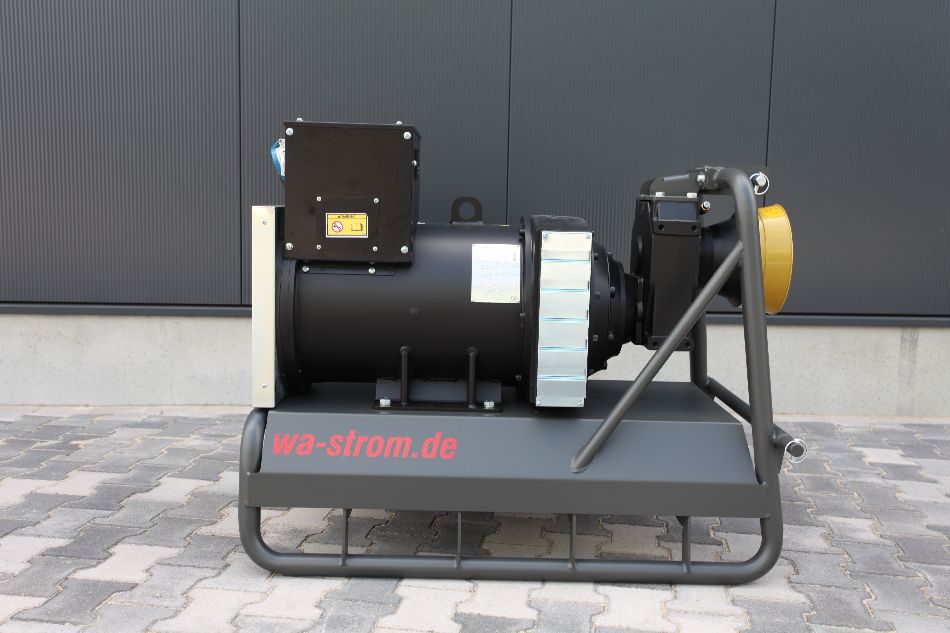

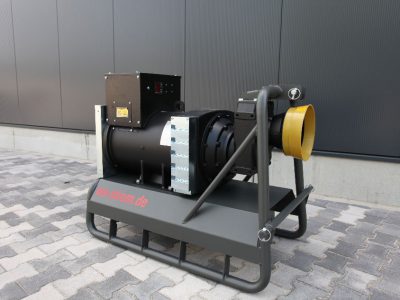

PTO power generator WA-ZB 85/4
Power generator 3-phase
Continuous power / kVA  85
Efficiency  / %  91,9
Voltage / Volt  400/230
Frequency / Hz  50
Power generator 1-phase
Continuous power / kVA  33,5
Voltage/ Volt  230
Frequency / Hz  50

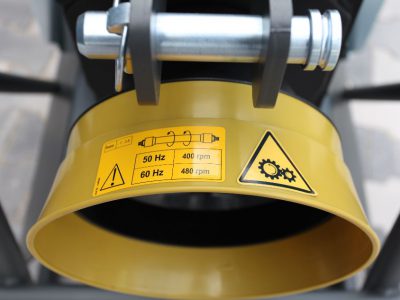

Gear for 540er PTO power generator

Tractor power / mind. KW  183
Tractor power / min. PS  250

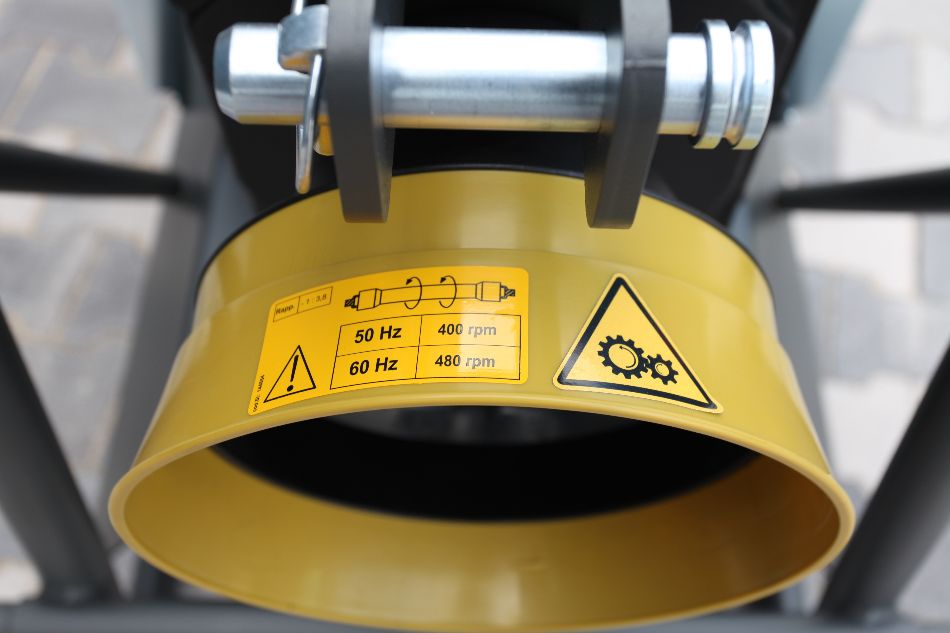

Number of revolutions PTO power generator / r.p.m  400
Number of revolutions generator / r.p.m 1.500
Required PTO power generator  / NM  2.671
Dimensions base frame
Length / mm  1.204
Width / mm  800
Height / mm  923
Weight / kg  386

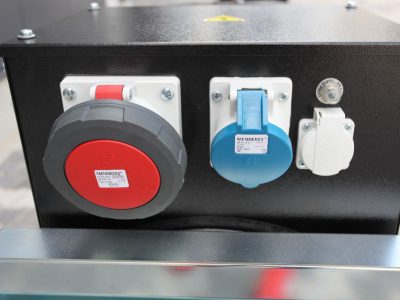

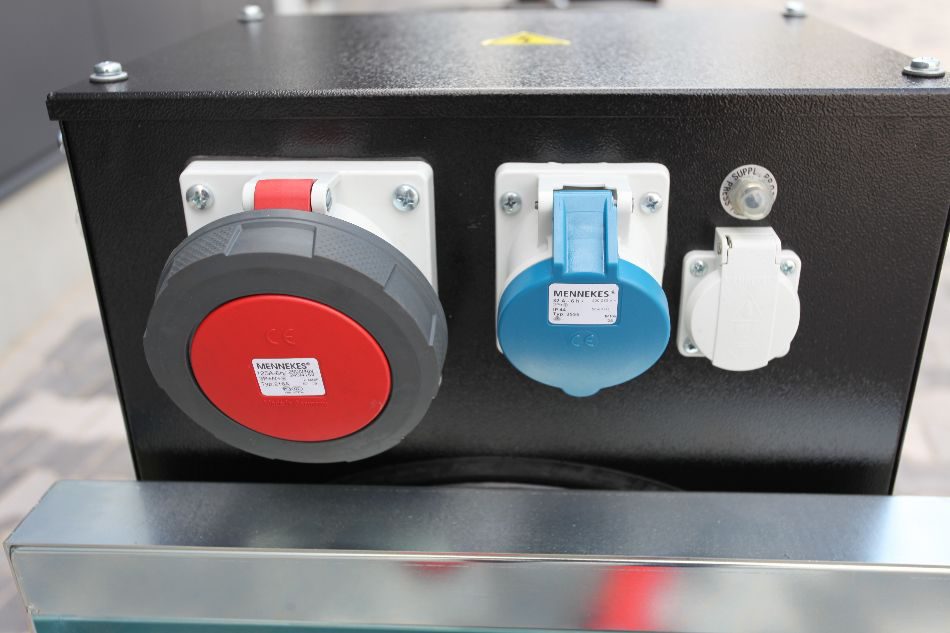

sockets / Mennekes

230 Volt CEE IP67 / 32 Amp.  yes
400 Volt CEE IP67 /32 Amp.  -/-
400 Volt CEE IP67 / 63 Amp.   -/-
400 Volt CEE IP67 / 125 Amp. yes
Standard equipment / 2 years guarantee
Operating hours counter / digital  yes

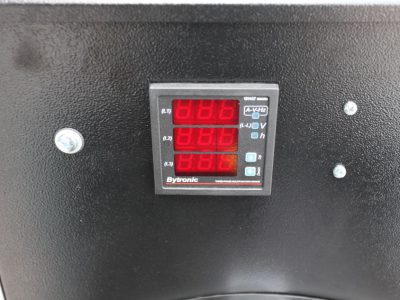

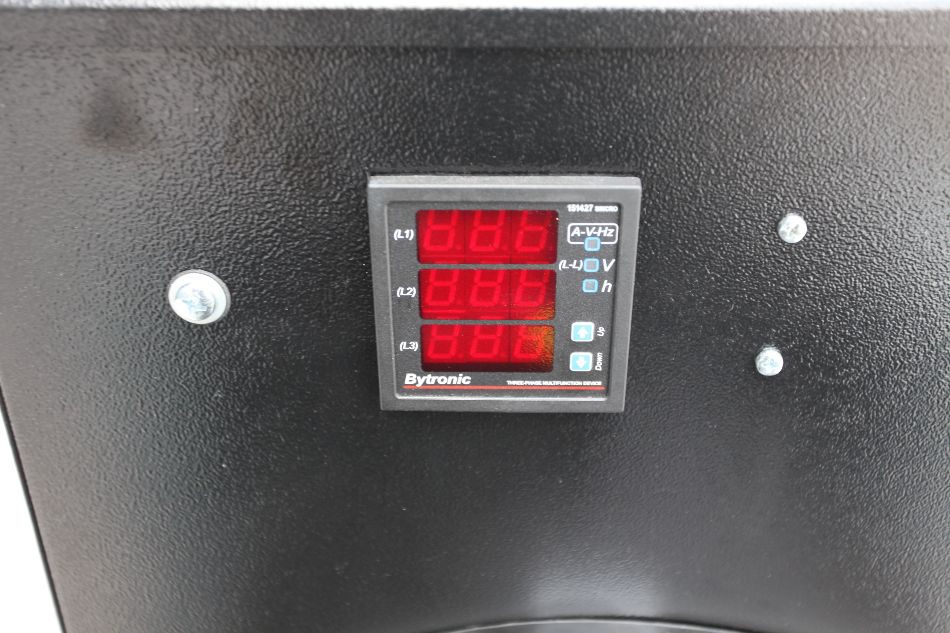

Voltage display / digital  yes
Amperemeter / digital yes
Rate Monitor / digital  yes

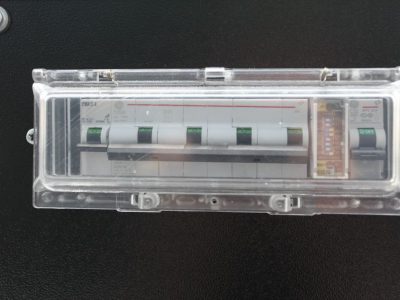

GFCI / ID = 0,03 A  yes

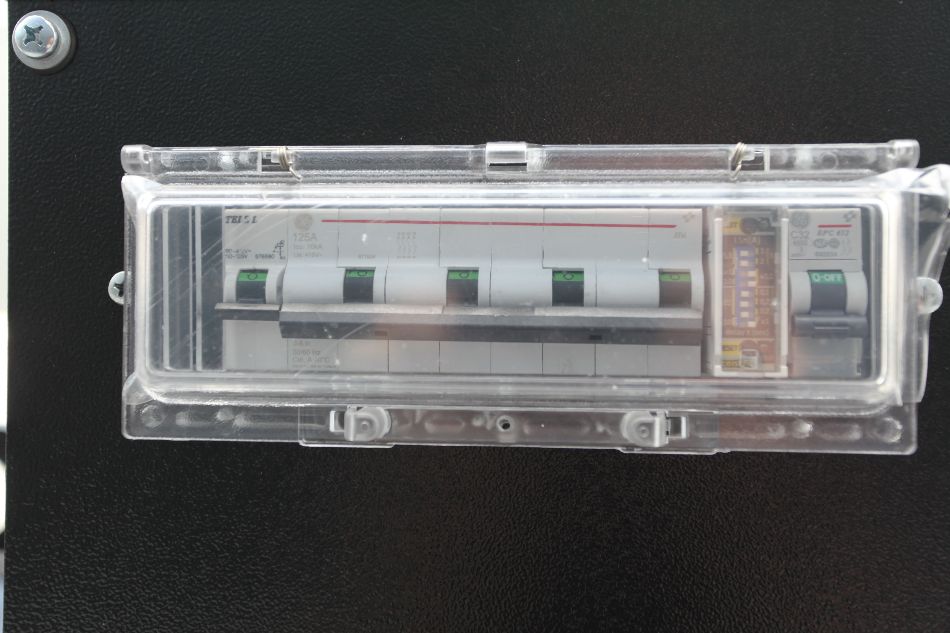

Generator switch / 4-pole  yes
Short circuit current / 3,5 x innen  yes
Voltage accuracy / +/- 1%  yes
Insulation class / H  yes
Protection / IP 44  yes
Three point suspension  yes
Transmission oil filling / factory  yes
Instruction manual / german  yes
Propshaft splash  yes
Voltage regulation / AVR 3-phase  yes
Instruction manual / at delivery  yes
CE / 2006/95/EG  yes
Overthrow secure base frame  yes
Overload protection  yes
Plant test run  yes
Price € / net plus VAT  € 4.550
Options only in conjunction with the PTO power generator / Price € net plus VAT
Cross earth electrode / with 5 m electric wire  € 40
Switch power generator / building installation  on demand
Voltage  and Hz monitoring / built-in € 700
ISO-Sentinel space / house operation  on demand
