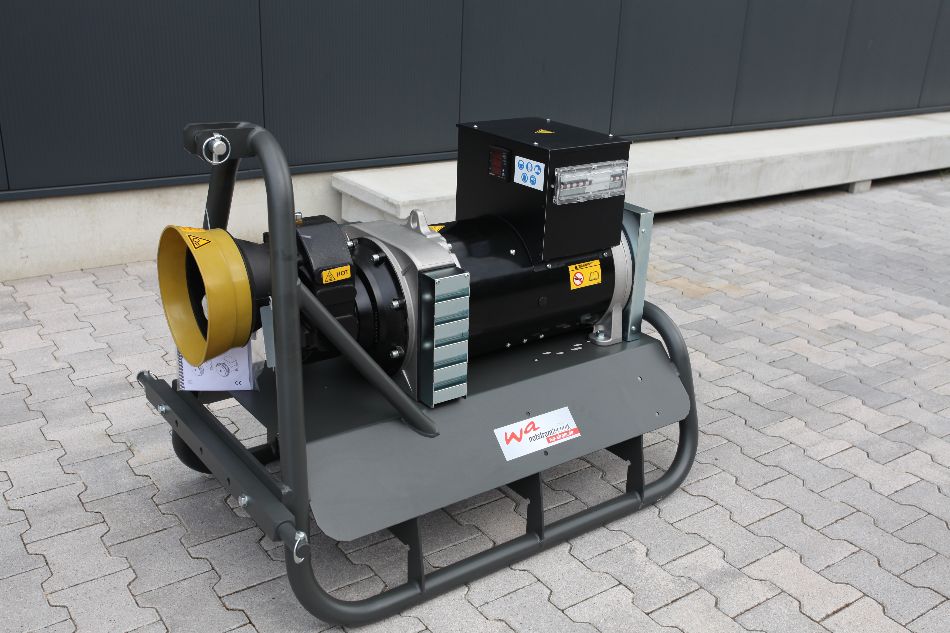

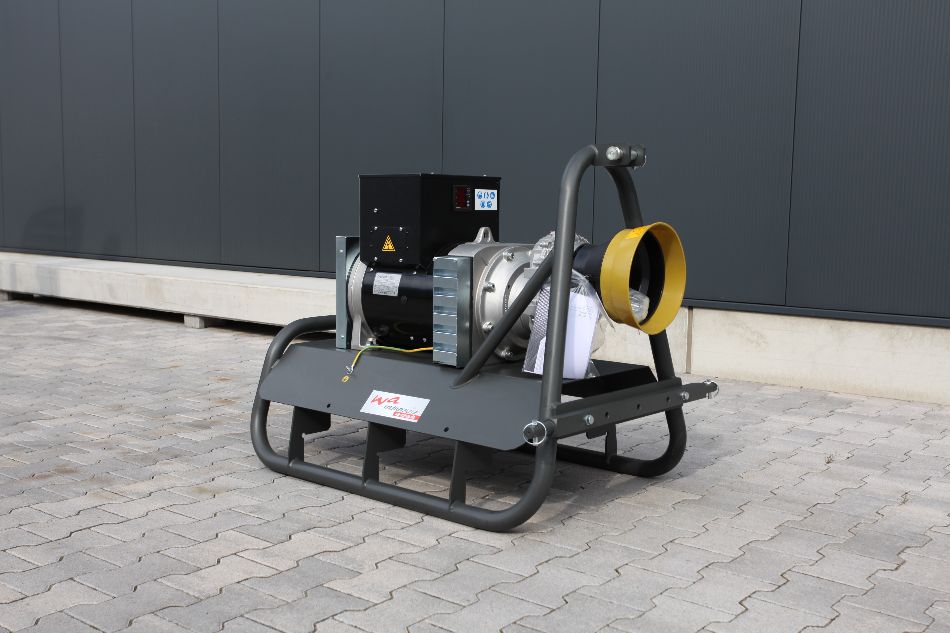

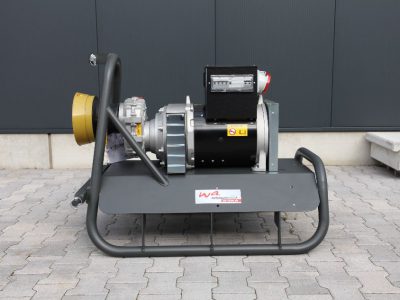

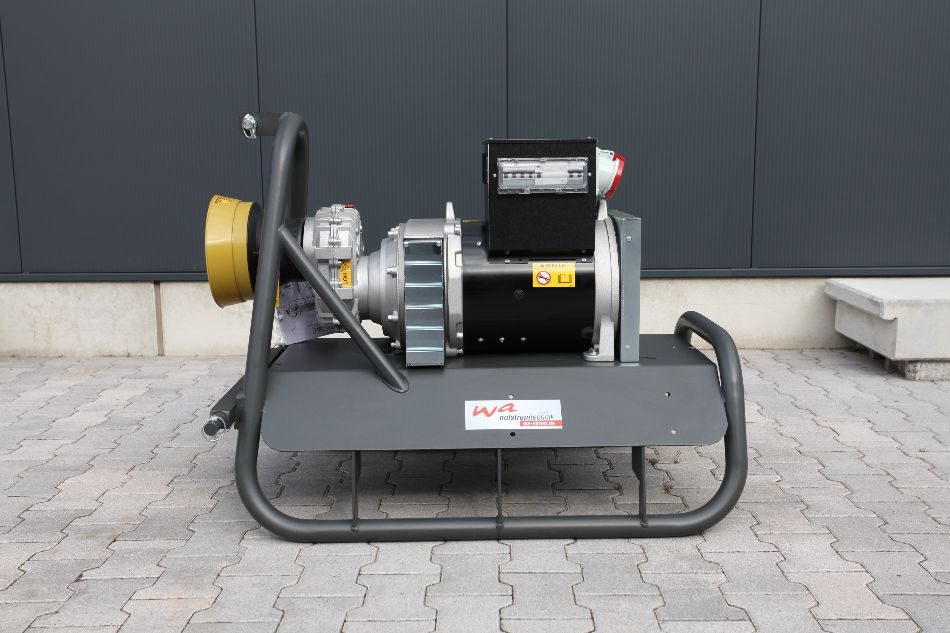

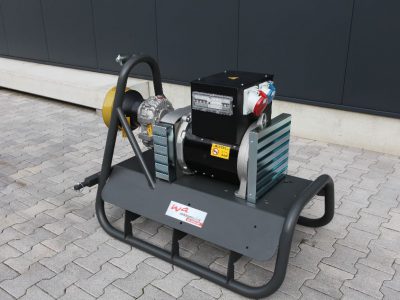

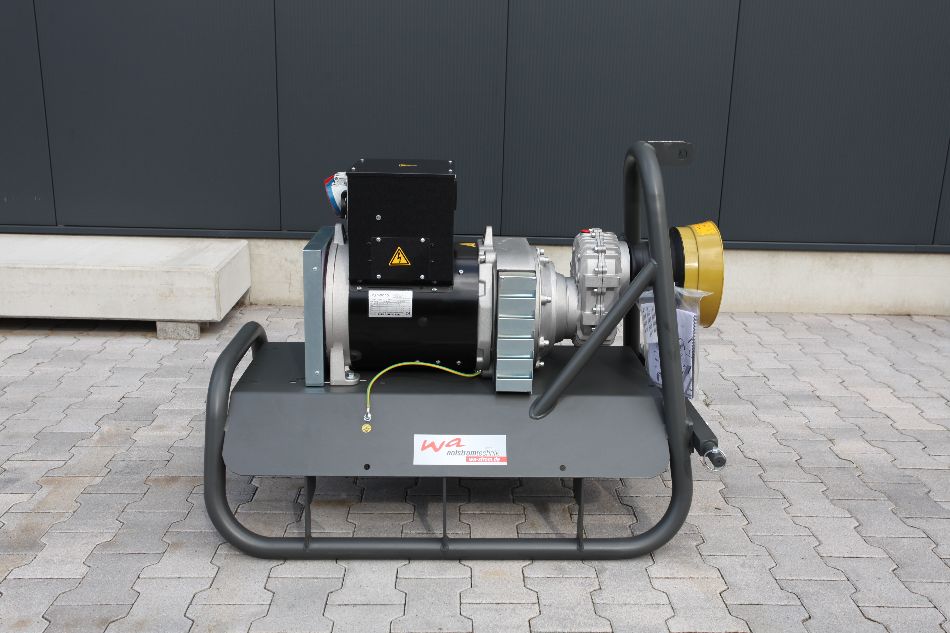

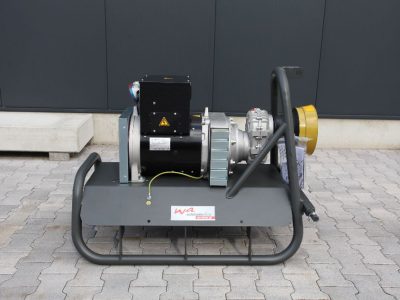

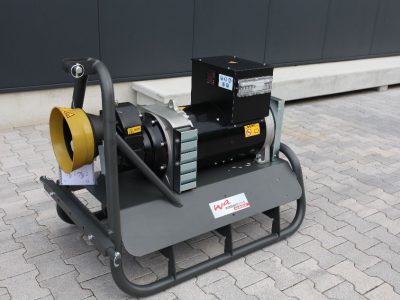

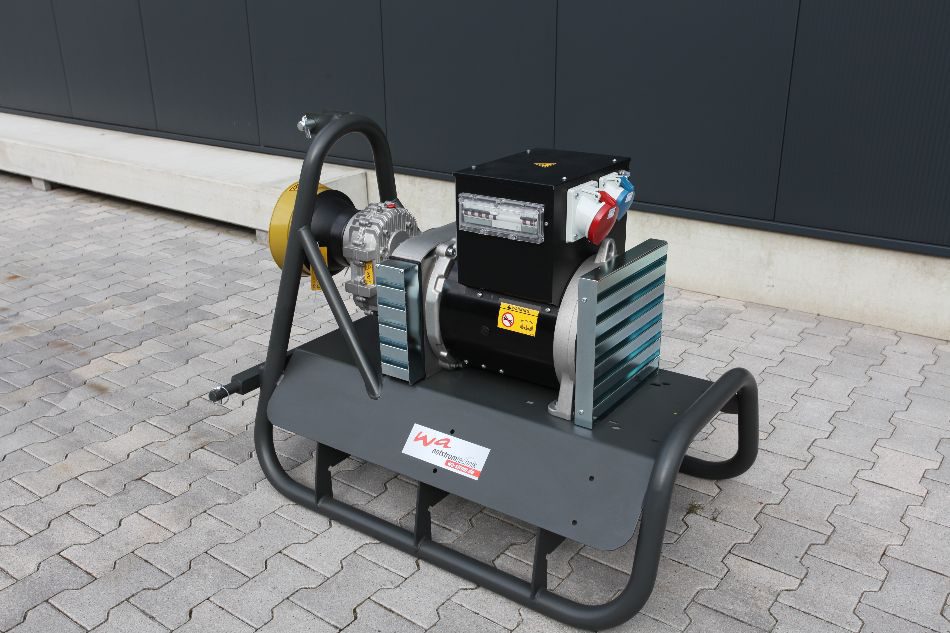

PTO generator 27 kVA

PTO generator 27 kVA – Brushless with electronic voltage regulator AVR – synchronous

Our PTO power generators are the perfect solution for farmers looking for an inexpensive yet effective way of providing themselves with electricity even during a power outage.

PTO generator
WA-ZB 27/4
EAN 0619915364093
Power generators 3-phase

Continuous power / kVA 27,0
Efficiency / % 88,6
Voltage / Volt 400/230
Frequency / Hz 50
Power generators 1-phase

Continuous power/ kVA 10,8
Voltage / Volt 230
Frequency / Hz 50
Gear for 540er PTO power generators

Tractor power / min. KW 40
Tractor power / min. PS 54
Number of revolutions PTO power generator / r.p.m 430
Number of revolutions generator / r.p.m 1.500
Required PTO power generator / NM 850
Dimensions base frame
Length / mm 1.135
Width / mm 800
Height / mm 915
Weight / kg 230

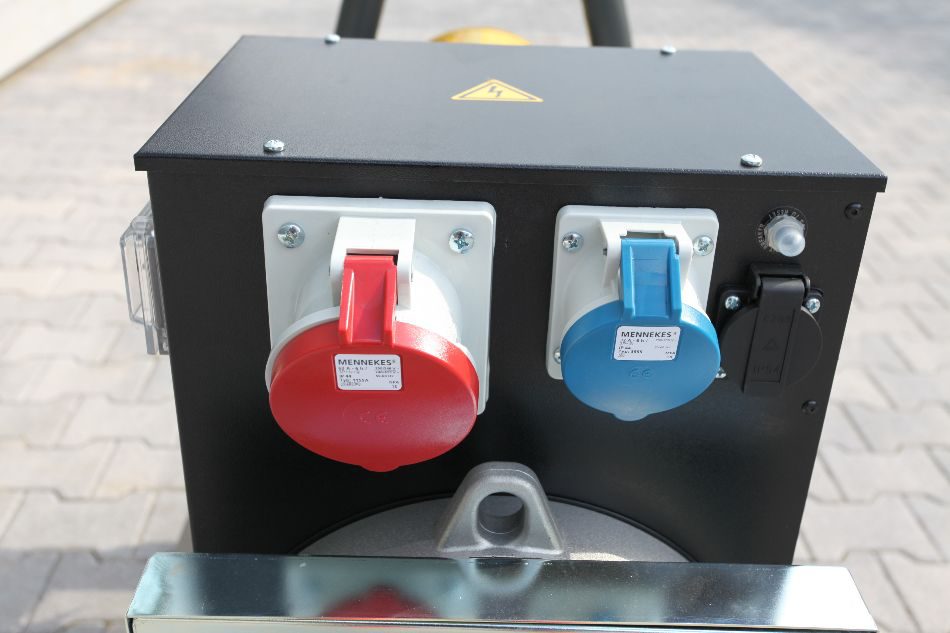

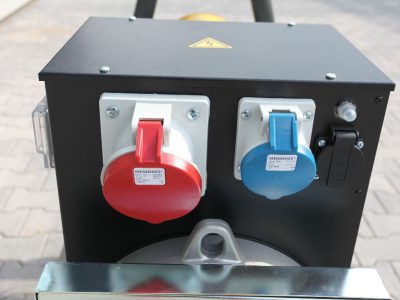

Sockets / Mennekes

230 Volt Schuko / 16 Amp. yes
230 Volt CEE 6 H / 32 Amp. yes
400 Volt CEE 6 H /32 Amp. -/-
400 Volt CEE 6 H / 63 Amp. yes
400 Volt CEE 6 H / 125 Amp. -/-
Standard equipment / 2 years guarantee
Operating hours counter / digital yes
Voltage display / digital yes
Amperemeter / digital yes

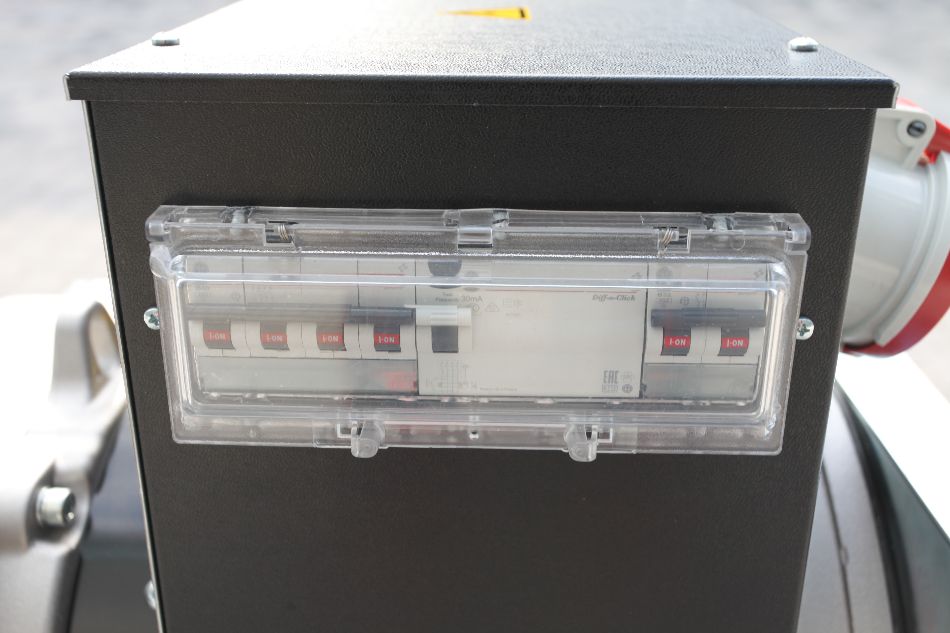

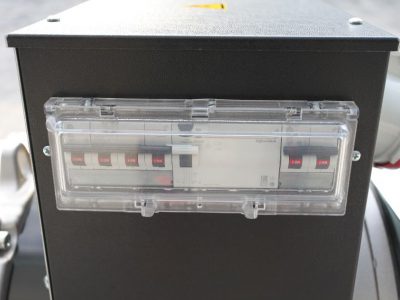

4-pole Generator Switch yes
Short circuit current / 3,0 x inenn yes
Voltage accuracy / +/- 1 % yes
Insulation class / H yes
Protection / IP 44 yes
Three point suspension yes
Transmission oil filling / factory yes
Instruction manual / german yes
Propshaft splash yes
Voltage regulation / AVR 3-phase yes
Operational / at delivery yes
CE declaration (2014/35/EU) yes
Overthrow secure base frame yes
Overload protection yes
Plant test run yes
Price € / net plus VAT € 3.025
Options only in conjunction with the PTO power generator / Price € net plus VAT
Cross earthe electrode / with 3 m electric wire 16 mm² € 40
